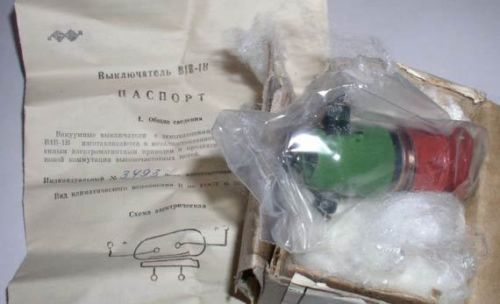

Vacuum Antenna Relay W1w (v1v,b1b) Rf Switch. New In Box

US $130

  • Dallas,Texas, United States
  • Jun 9th
Open on mobile:
QR code
Take advantage of this sale today and receive fast delivery from our Texas stock. Order now and enhance your radio-frequency chain switchings with this reliable W1W-1W vacuum relay. Operating at 16-18 V on and 2-4 V off with a quick 10-15 milliseconds switching time, the W1W-1W(B1B-1B) Vacuum Relay has a direct resistance of contacts at 0.02 Ohm and insulation resistance of 500,0 MOm. It has a maximum voltage of 3.0kV at 30 Mhz and temperature range between -60*C to +100*C. The maximum diameter measures up to 38 mm and length up to 72 mm with a weight of 100 grams for easy installation in any operating position. The W1W-1.5kW Vacuum SPST Relay, paired with the B1B-1B, is the perfect solution for radio-frequency chain closure without current mode to switchings. This relay is particularly useful for switching anode loads of tube PA, connecting capacitors, closing spool whorls, and antenna elements. It's the ideal choice for upgrading your amplifier to QSK with a 350-ohm coil, a current coil of 30-55mA, and a maximum switchable power of 1.5 kW at 30 Mhz. Vacuum relays and switches are ideal for airborne, marine, and mobile communication systems, offering high dielectric strength and low thermal and RF noise generation. With this W1W-1W vacuum relay, you'll experience low circuit losses and low RF insertion loss, with typical values between 0.02 and 0.1 dB at operating frequencies.
