VECTRAX 3 Axis CNC Vertical Milling Machine w/Centroid M15 Control 3 Axis DRO, US $9100 – Picture 0
VECTRAX 3 Axis CNC Vertical Milling Machine w/Centroid M15 Control 3 Axis DRO, US $9100 – Picture 0

Vectrax 3 Axis Cnc Vertical Milling Machine W/centroid M15 Control 3 Axis Dro

US $9100

  • Louisville, Kentucky, United States
  • May 26th
Open on mobile:
QR code
VECTRAX Three-Axis CNC Vertical Milling Machine With Three-Axis Digital Readout & Centroid M-15 Control Model Number: GS-N16V Serial Number: 9030161NV MFG Date: 4-18-2001 M15-9 Centroid Control S/N 4740 M15 Centroid Three-Axis (Full Contouring) CNC Features: Closed loop three-axis feedback with .0001" resolution LCD - backlit color display - 10.4" 32-Bit PC based motion control Internal hard drive 3.5" Floppy Drive Keyboard X, Y, & Z-axis manual feed mode with real time three-axis DRO display Intercon (Version 7.17) conversational programming Canned cycles for "Position", "Drill", "Bolt Hole", "Arc", "Pocket", "Face Mill" and      "Linear" Programming features: Absolute/Incremental, Rectangular or Polar Coordinates,      Inch/Metric, Parts Graphics, Conversational and Geometry based Format, Full      Graphical help for math, geometry, and trigonometry calculations, EIA Fanuc      style G code programming, Teach and Manual Feed modes Table working surface- 9" x 49" T-slots- (3) 5/8" Range: longitudinal (X)- 29"            cross (Y)- 11.5”            vertical, knee- 14”            quill (Z)- 5” Maximum, spindle nose to table- 18 3/8” Ram travel- 18” Head tilt, left and right- 90° Infinitely variable spindle speeds, two ranges- 70-500 R.P.M. & 600- 4,200 R.P.M. Spindle taper- R-8   Equipped With: Mill Features: Meehanite cast iron hardened & ground box ways Rigid box head design X , Y & Z axes ball screws with DC servo motors Manual hand wheels on X & Y axes Hand crank and micrometer dial for adjustment of knee height Programmable spindle On/Off & Forward/Reverse directional control Programmable flood coolant Automatic lubrication system with timer Chip pan, Halogen lamp, Front & Back Way Covers 3 H.P. 3/60/220-440 volt spindle drive motor and electrical controls Machine is wired for 220 volt operation. Approximate Weight: 3,000 Lbs. Approximate Dimensions: Length: 62" x Width: 56" x Height: 82" Can Be Seen Under Power in our Downtown Louisville, KY. 40203 Warehouse. Will load for free, must ship flatbed air ride and be tarped . Specifications Subject to Buyer Verification! glen at amerigo machinery dot com or 5024198183

Directions

Similar products from Tools for Milling Machines

Nikken BT 35 SK 10 Collet Chuck 3" PRO BT35 SK10 90 (LOC1269B)

Nikken BT 35 SK 10 Collet Chuck 3" PRO BT35 SK10 90 (LOC1269B)

  • Laingsburg, Michigan, United States
  • May 26th
Command BT 40 1" Milling Arbor B4F4 1000 (LOC1269B)

Command BT 40 1" Milling Arbor B4F4 1000 (LOC1269B)

  • Laingsburg, Michigan, United States
  • May 26th
Nikken BT 40 SK 10 Collet Chuck BT40 SK10 120 (LOC1269B)

Nikken BT 40 SK 10 Collet Chuck BT40 SK10 120 (LOC1269B)

  • Laingsburg, Michigan, United States
  • May 26th
LAGUN LAGUNMATIC

LAGUN LAGUNMATIC

  • Oxnard, California, United States
  • May 26th
Richmill BT 40 TG 100 Collet Chuck BT40 TG100 100 (LOC1269B)

Richmill BT 40 TG 100 Collet Chuck BT40 TG100 100 (LOC1269B)

  • Laingsburg, Michigan, United States
  • May 26th
Atlas / Southbend / Craftsman (?) Part #128071 For Mill or Lathe

Atlas / Southbend / Craftsman (?) Part #128071 For Mill or Lathe

  • Garden City, Idaho, United States
  • May 26th
Sandvik / Kennametal KSSR600SE4245C6 6" Facemill

Sandvik / Kennametal KSSR600SE4245C6 6" Facemill

  • Garden City, Idaho, United States
  • May 26th
Command BT 40 .375" End Mill Holder B4E4 0375 (LOC1269B)

Command BT 40 .375" End Mill Holder B4E4 0375 (LOC1269B)

  • Laingsburg, Michigan, United States
  • May 26th
VALENITE 2-FLUTE 1-1/4" INDEXABLE MILLING CUTTER #539.62.624

VALENITE 2-FLUTE 1-1/4" INDEXABLE MILLING CUTTER #539.62.624

  • Cadiz, Kentucky, United States
  • May 26th
VALENITE 5-FLUTE 1-1/2" INDEXABLE MILLING CUTTER #539.63.212

VALENITE 5-FLUTE 1-1/2" INDEXABLE MILLING CUTTER #539.63.212

  • Cadiz, Kentucky, United States
  • May 26th
NT HSK 50 C Collet Chuck 3" PRO S HSK 50C HDC12A 90 (LOC1378D)

NT HSK 50 C Collet Chuck 3" PRO S HSK 50C HDC12A 90 (LOC1378D)

  • Laingsburg, Michigan, United States
  • May 26th
UNION 3/8" RADIUS HS CORNER ROUNDING MILLING CUTTER, 3.00" x 3/8"R x 1 RH

UNION 3/8" RADIUS HS CORNER ROUNDING MILLING CUTTER, 3.00" x 3/8"R x 1 RH

  • Buffalo, Minnesota, United States
  • May 25th
ILLINIOS 5/8" RADIUS HS CORNER ROUNDING MILLING CUTTER, 4.50" x 5/8"R x 1 1/4 RH

ILLINIOS 5/8" RADIUS HS CORNER ROUNDING MILLING CUTTER, 4.50" x 5/8"R x 1 1/4 RH

  • Buffalo, Minnesota, United States
  • May 25th
Fukuda Seiko Co. Ltd. Staggered Tooth T-Slot Cutter - 1 x 1/4 - 3 Flute - New

Fukuda Seiko Co. Ltd. Staggered Tooth T-Slot Cutter - 1 x 1/4 - 3 Flute - New

  • Wilmette, Illinois, United States
  • May 25th
2 Carr Lane 13mm Drill Bushing Lot Machinist Milling Machine Drill Press Tool

2 Carr Lane 13mm Drill Bushing Lot Machinist Milling Machine Drill Press Tool

  • Yorktown, Virginia, United States
  • May 25th
3 Carr Lane 21/64 Drill Bushing Lot Machinist Milling Machine Drill Press Tool

3 Carr Lane 21/64 Drill Bushing Lot Machinist Milling Machine Drill Press Tool

  • Yorktown, Virginia, United States
  • May 25th
ETM R8 0.375" CAPACITY TOOL HOLDER FOR BRIDGEPORT MILL

ETM R8 0.375" CAPACITY TOOL HOLDER FOR BRIDGEPORT MILL

  • Los Angeles, California, United States
  • May 25th

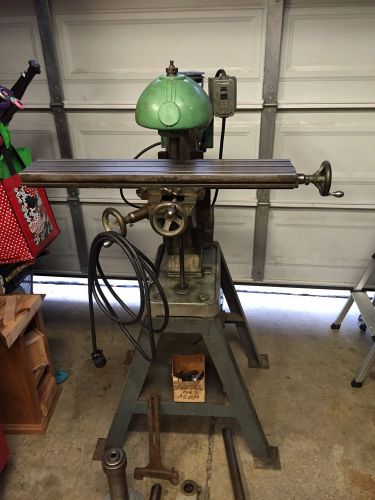

BENCHMASTER MILLING MACHINE MH2 Bench Top Mill

BENCHMASTER MILLING MACHINE MH2 Bench Top Mill

  • Millbrae, California, United States
  • May 25th
Lucas 5" Spindle - Horizontal Boring Mill - Fanuc 11M

Lucas 5" Spindle - Horizontal Boring Mill - Fanuc 11M

  • Santa Fe Springs, California, United States
  • May 25th
KENNAMETAL HEXA CUT SHELL MILLS LEFT HAND K1200C328LF60HN09S M750 D=12" 304.8mm

KENNAMETAL HEXA CUT SHELL MILLS LEFT HAND K1200C328LF60HN09S M750 D=12" 304.8mm

  • BANGALORE, KARNATAKA, India
  • May 25th

People who viewed this item also vieved

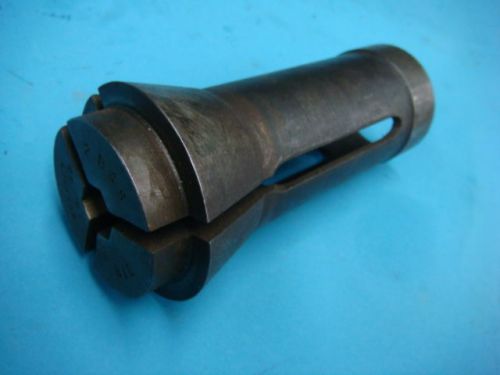

BROWN & SHARPE #22 HEX COLLET SET, 3 PCS TOTAL. 3/8". 1223145

BROWN & SHARPE #22 HEX COLLET SET, 3 PCS TOTAL. 3/8". 1223145

  • Fox Lake, Illinois, United States
  • Jan 30th

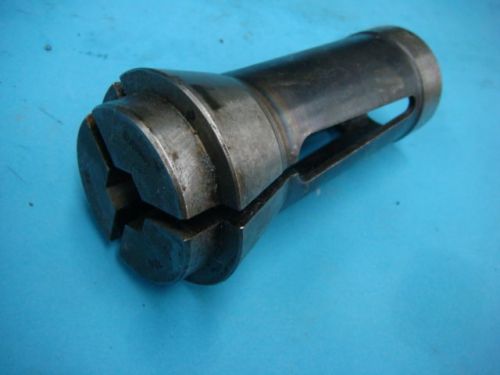

BROWN & SHARPE #22 HEX COLLET 3/8". 1223144

BROWN & SHARPE #22 HEX COLLET 3/8". 1223144

  • Fox Lake, Illinois, United States
  • Jan 30th
HARDINGE #22 HEX COLLET 7/16". 1223143

HARDINGE #22 HEX COLLET 7/16". 1223143

  • Fox Lake, Illinois, United States
  • Jan 30th
4-40 X 2.5D (.280") Phosphorous Bronze Free Running Inserts, 1185-04BN-0280

4-40 X 2.5D (.280") Phosphorous Bronze Free Running Inserts, 1185-04BN-0280

  • Abingdon, Maryland, United States
  • Jan 30th
4-40 X 1D (.112") Phosphorous Bronze Free Running Inserts, 1185-04BN-0112

4-40 X 1D (.112") Phosphorous Bronze Free Running Inserts, 1185-04BN-0112

  • Abingdon, Maryland, United States
  • Jan 30th
1/4-20 X 2D (.500") Phosphorous Bronze Free Running Inserts, 1185-4BN-0500

1/4-20 X 2D (.500") Phosphorous Bronze Free Running Inserts, 1185-4BN-0500

  • Abingdon, Maryland, United States
  • Jan 30th
SYSTEM 3R 3R-321.5 CHUCK

SYSTEM 3R 3R-321.5 CHUCK

  • Chicago, Illinois, United States
  • Jan 30th
EROWA QUICK-CHUCK 50 ER-034387

EROWA QUICK-CHUCK 50 ER-034387

  • Saddle Brook, New Jersey, United States
  • Jan 30th
Drill EDM Electrodes, Brass Tubes 0.18 x 300 mm,60Pcs

Drill EDM Electrodes, Brass Tubes 0.18 x 300 mm,60Pcs

  • Mission Viejo, California, United States
  • Jan 30th

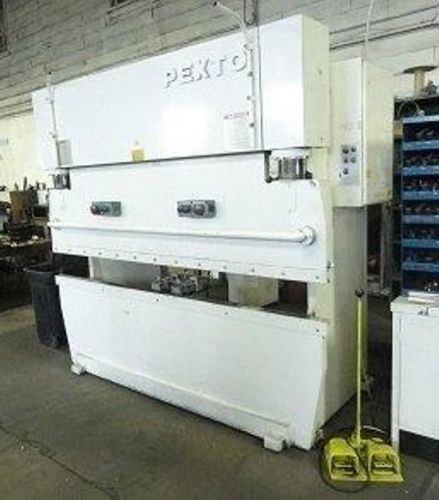

Pexto (LVD) HYDRAULIC PRESS BRAKE (28502)

Pexto (LVD) HYDRAULIC PRESS BRAKE (28502)

  • Cincinnati, Ohio, United States
  • Jan 30th
Sawyer 124H-0420SS Chain Pipe Alignment Clamp 4-20 inches Stainless Steel New!!

Sawyer 124H-0420SS Chain Pipe Alignment Clamp 4-20 inches Stainless Steel New!!

  • King George, Virginia, United States
  • Jan 30th
#14-U-6F PEXTO 6' x 14 Gauge Mechanical Shear (New 1968)

#14-U-6F PEXTO 6' x 14 Gauge Mechanical Shear (New 1968)

  • Hauppauge, New York, United States
  • Jan 30th
NEW ACRO LAP 7/16" BLIND HOLE LAPPING BARREL. Acro Tool. Barrel Lap. (B12)

NEW ACRO LAP 7/16" BLIND HOLE LAPPING BARREL. Acro Tool. Barrel Lap. (B12)

  • Aliso Viejo, California, United States
  • Jan 30th
NEW ACRO LAP 1/4" BLIND HOLE LAPPING BARREL. Acro Tool. Barrel Lap. (B12)

NEW ACRO LAP 1/4" BLIND HOLE LAPPING BARREL. Acro Tool. Barrel Lap. (B12)

  • Aliso Viejo, California, United States
  • Jan 30th
NEW ACRO LAP 5/8" BLIND HOLE LAPPING BARREL. Acro Tool. Barrel Lap. (B12)

NEW ACRO LAP 5/8" BLIND HOLE LAPPING BARREL. Acro Tool. Barrel Lap. (B12)

  • Aliso Viejo, California, United States
  • Jan 30th
A 60 P GRINDING WHEEL 6" X 3/4" X 1/2" MAX RPM 3700 BRAND NEW.

A 60 P GRINDING WHEEL 6" X 3/4" X 1/2" MAX RPM 3700 BRAND NEW.

  • Sellersburg, Indiana, United States
  • Jan 30th

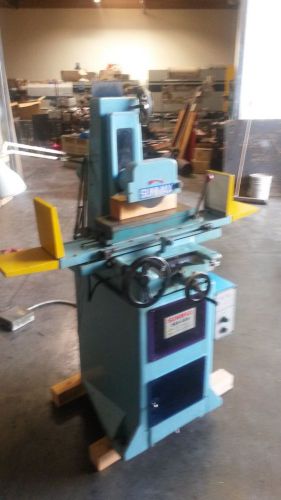

6x18 Surface grinder

6x18 Surface grinder

  • Carson City, Nevada, United States
  • Jan 30th

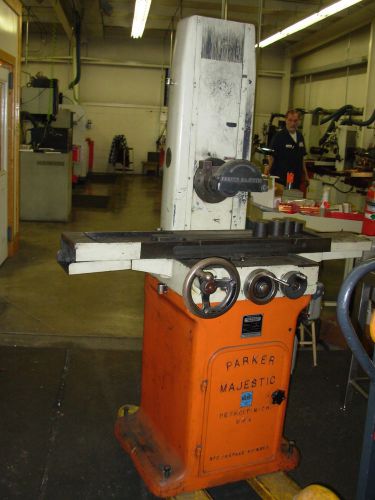

Parker Majestic No.2 Surface Grinder
