Veex Vepal Cx110+ Cable Analyzer

US $400.00

Liberty, North Carolina, United States
Jan 29th

Open on mobile:
QR code

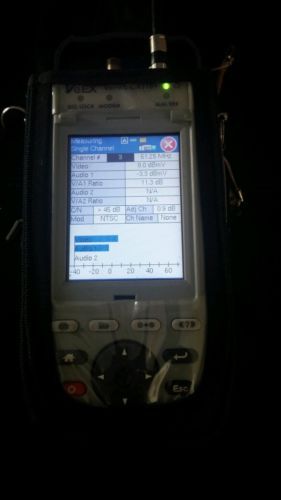

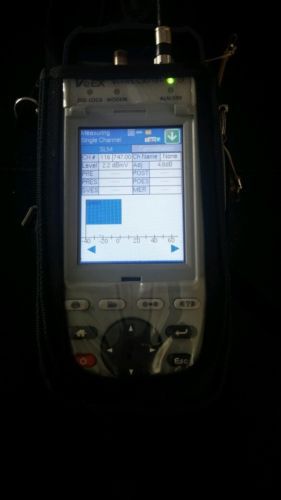

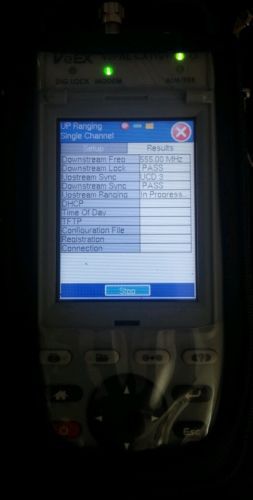

Up for auction is a touchscreen VeEX VePAL CX110+ Cable Analyzer with built in DOCSIS cable modem. This meter is in good condition and will come with car charger, stylus, and carrying case with shoulder strap. Here is some pictures of meter testing analog channels. Digital test DOCSIS test VePAL CX110+ CATV network testing simplified A next generation CATV installer meter to characterize and measure Analog and Digital video signals. For Analog carriers, Peak Video level, single or dual channel Audio levels and Carrier to Noise (C/N) measurements are possible on NTSC, PAL, or SECAM video formats. Digital QAM16/64/256 carriers with or without deep Interleaving are measured accurately with MER, BER and Constellation diagram results being reported. Tilt, Quick Test, and Forward/Reverse ingress scan are standard features. The built-in Ethernet port supports Triple Play test features, such as VoIP call emulation with MOS scoring, Web-browser, IP connection testing, remote control, test results upload/download, and system management. WiFi connectivity tests can be performed using a USB WiFi adaptor. The CX110+ is equipped with a built-in DOCSIS cable modem, which discovers the upstream frequencies by listening on the downstream channel for Upstream Channel Descriptor (UCD) packets. Once a special message called a map is detected, the cable modem begins to transmit upstream data starting at its lowest power level, incrementing in 3dB steps until the CMTS acknowledges the request. Once detected, the CMTS analyzes the power, frequency and timing of the range request and send the cable modem a response which provides instructions for the modem to adjust its transmit power, frequency and timing to operate properly on the network. The upranging check functionality is very useful for technicians who are only concerned with the RF alignment and synch process when installing cable modems. Platform Highlights Intuitive presentation of measurements with test graphics High resolution color touch-screen viewable in any lighting conditions fitted with protective cover Robust, handheld chassis packed with powerful and flexible features for demanding environments and test conditions Optimized for field engineers or technicians installing and maintaining CATV networks enabling triple play services Ethernet port and connection for back office applications, workforce management and triple play service verification USB memory stick, Bluetooth adaptor, and FTP upload capability for test result storage and file transfer respectively Maintain instrument software, manage test configurations, process measurement results and generate customer test reports using included ReVeal™ PC software Extend field testing time using interchangeable LiIon battery pack/s. Greater battery autonomy provided in standby mode Supports advanced IP testing; Ping, trace route, ARP Wiz, VoIP, IPTV, WiFi, Web browser, and FTP upload/download via Ethernet or USB port where applicable Perform remote testing and monitoring using the remote control option via standard Ethernet interface NetWiz cable diagnosis with network statistics* VoIP call emulation and MOS performance analysis* WiFi Wiz site survey with Internet and VoIP check* Key Features Frequency analysis from 5 to 1000 MHz Supports Annex A and B signal formats Comprehensive SLM features Fast system scan mode of the entire active channel plan Installation test procedures with location specific limits Single-channel measurements with Min/Max thresholds Tilt measurements to indicate distortion over the frequency spectrum allowing technicians to apply correct equalization Measure power level of NTSC, PAL and SECAM video signals Carrier-to-Noise (C/N); Adjacent Channel measurement ratio MER and Pre/Post BER measurements of QAM carriers with Constellation diagram and Histogram Forward and Reverse path ingress scan to detect noise and/or CSO/CTB interference Cable Modem Upranging check Home Installation Process*
