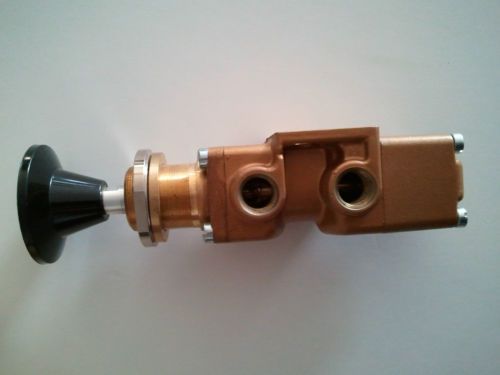

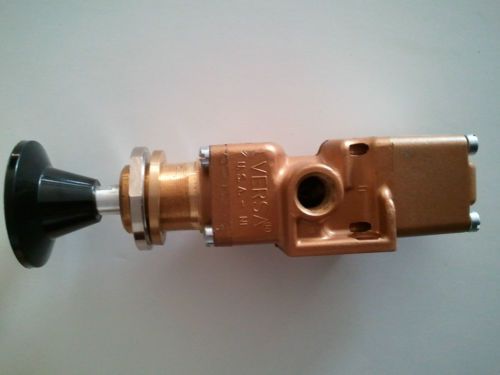

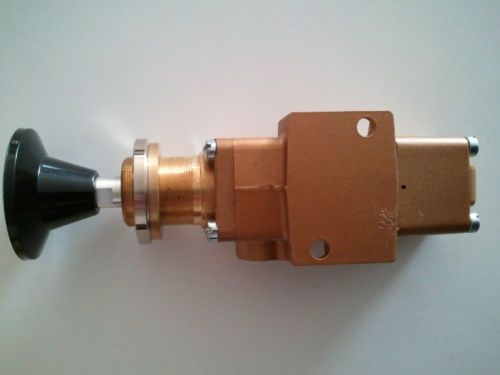

Versa Vni-3301 Three-way Valve, 2 Position 3/2 (used)

US $50.00

  • Weatherford, Oklahoma, United States
  • Mar 1st
Open on mobile:
QR code
Versa VNI-3301 Three-Way Valve, 2 Position 3/2 (used) V Series “V” Valve Pneumatic service to 200 psi (14 bar) N Non-Return Manually Operated  I Palm Button 3 Three-Way 3 1/4 ” NPT 0 SIDEPORTED–EXPILOT Body with integral, pipe threaded ports. This type of body is directly connected to pressure     lines and is used for mechanical, manual and EXPilot* type solenoid or pilot actuated valves. 1 Two Position Normally Closed (actuating device must be on right end of valve) Valves must be connected in accordance with the port markings so that the flow is from the inlet port to the outlet port or from outlet port to exhaust. The flow within the valve should never be reversed. Note: When used in a vacuum system, the vacuum pump is connected to the exhaust port Series “V” valves are designed for the control of pneumatic pressures from partial vacuum to 200 psi (14 bar).  However, the use of standard O ring seals makes it possible to supply many different compounds in order to meet varying conditions of media and temperature.  In general, the standard NBR (Nitrile) O rings used in Series “V” valves allow application for most general industrial use.  Ambient temperatures below freezing require moisture free air and the use of suitable lubrication. Download Literature and print at following:   http://www.versa-valves.com/sites/default/files/catalogs/LIT-VT-USA.pdf

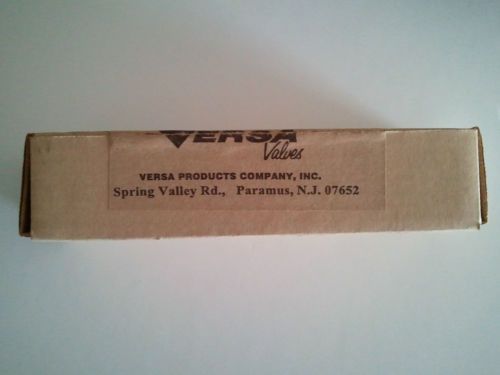

“Very Good condition in original box”
Type Versa
Thread Female
MPN VNI-3301
Material Brass
Connection Threaded
Brand Versa
Connection Size 1/4"

Directions
