Very Capable Used Sanyo Denki Motorized Lead Screw Assembly W/large Motor, More!

US $1191

Derry, New Hampshire, United States
Feb 16th

Open on mobile:
QR code

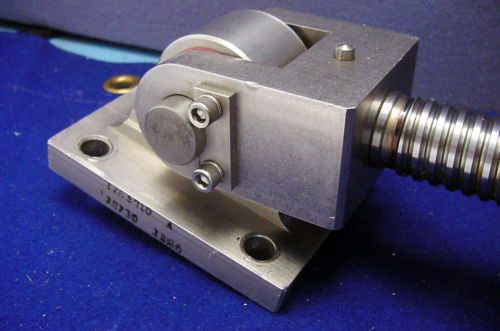

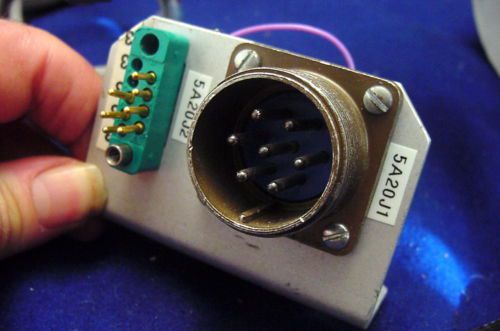

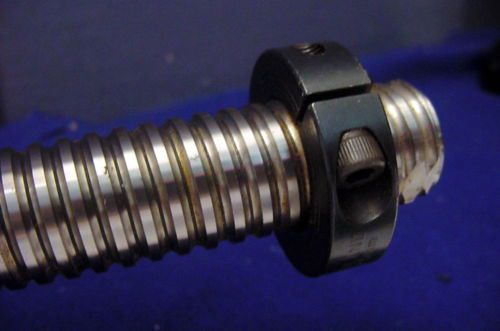

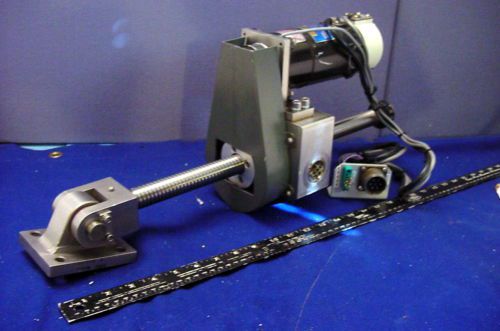

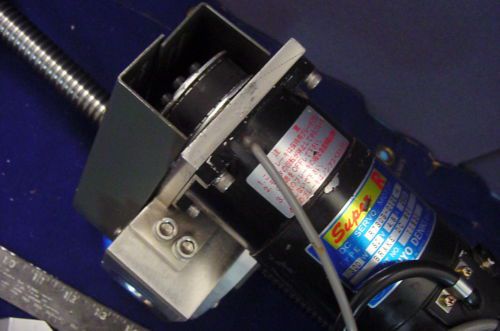

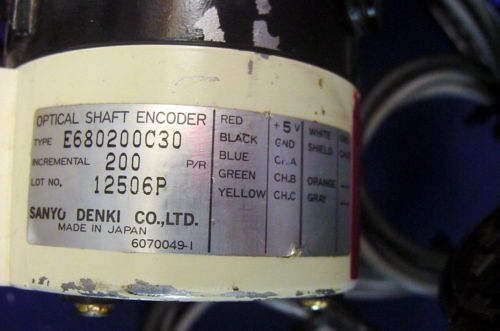

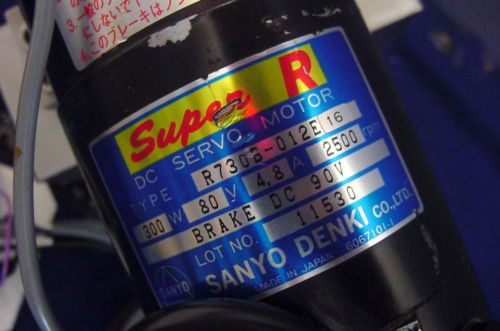

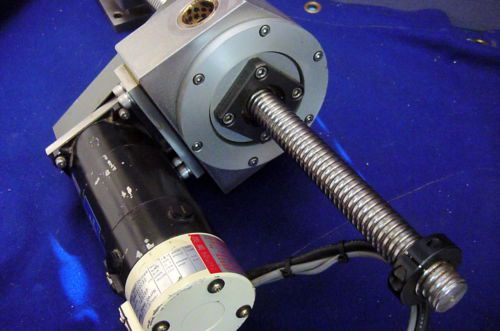

Check out my other items!PULLED FROM A GENTLY USED SET-UP, A VERY CAPABLE LEAD SCREW ASSEMBLY FROM SANYO DENKI - JAPAN. WE ARE NEARLY SOLD OUT ON THESE NICE ASSEMBLIES AND THIS ONE WON'T LAST ! TESTED AND OPERATIONAL. THE HEART OF THIS POWERFUL ASSEMBLY IS THE SANYO DENKI SUPER R 80VDC, 4.8A SERVO MOTOR TYPE R730B-012E. RATED AT 300W. MOTOR RPM: 2,500. REQUIRES A CAPABLE DC SUPPLY WITH OUTPUT OF 80VDC, 5A OR A LITTLE LESS. EQUIPPED WITH AN OPTICAL SHAFT ENCODER WITH 200 PR INCREMENTS. ENCODER TYPE E680200C30. NO SPECS. WERE AVAILABLE BUT THE MOTOR IS ESTIMATED AT A LITTLE UNDER 1/2 HP. WE HAVE NOT YET WORKED OUT THE OUTPUT RPM BUT IT'S ESTIMATED BETWEEN 400 - 500 RPM. THE LEAD SCREW MEASURES 25MM DIAMETER, OR 1 INCH DIAM. WITH 5 THREADS PER INCH. NO HD PIVOT MOUNTS CAME WITH THIS ONE, AND THE OPERATOR WILL NEED TO PROVIDE MEANS TO SECURE TO THE MOUNTING HOLES. ONE INCH DIAMETER COLD ROLLED STEEL HUBS WOULD MATE TO THE PIVOT SOCKETS ON THE HOUSING. LEAD SCREW EFFECTIVE TRAVEL IS APPROX. 12 INCHES. THIS IS A POWERFUL, DYNAMIC, MOTION CONTROL UNIT. ALL ITEMS PICTURED ARE INCLUDED. ARE ARE NO SPECS. / CONNECTION DIAGRAMS WERE AVAILABLE, AND THE OPERATOR SHOULD BE FAMILIAR WITH THIS SYSTEM. THE ASSEMBLY WILL BE SHIPPED WITH THE MOTOR REMOVED FROM THE BALL NUT HOUSING FOR SAFE SHIPPING. THE MOTOR IS EASILY RE-ATTACHED WITH THE FOUR HEX BOLTS.ONE OTHER UNIT IS AVAILABLE FOR PARTS. IT IS OPERATIONAL BUT HAS DAMAGE TO THE MOTOR MOUNT HOUSING/FLANGE. IT RUNS UP FINE BUT WOULD BE A BETTER CANDIDATE FOR SPARE PARTS. The estimated packed weight is 50 lbs. with ESTIMATED shipping cost of $44.90 to many parts of the U.S. via USPS. Higher to the more Southern / Western parts of the U.S. Large / Oversize Carton rates apply. NOTE: This is only an ESTIMATE! Please email for a firm shipping quote to you! International shipping via USPS International is available but will be very expensive. Estimated range of $150 - $200 or more to some destinations due to size and weight. Please email for a firm shipping quote to you, or go to USPS.com "Calculate Postage" for more info. on cost and services to your destination.

Condition:	Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...	Brand	SANYO DENKI
Country/Region of Manufacture	Japan
Model	R730B-012E (MOTOR)
TESTED AND OPERATIONAL	WITH LEAD SCREW, 80VDC MOTOR, BALL NUT ASSEMBLY
