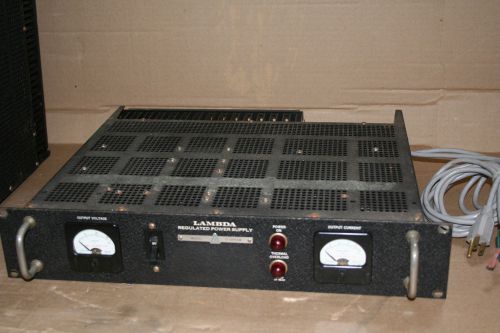

Up for your consideration / auction is an Vintage Lambda Power supply LGS-6-15-D-0V-R AC-DC switching power supply. Please read this description and review and examine all the pictures before placing any bids on this item. I have had this power supply in my possession since 2000. I bought this for a project that I never did get around to doing. It has been inside of dry storage of an warehouse for the past 12 years, I have not used it. It is made in Melville, L.I., NEW YORK from the back information plate lettering of silk screen printing that was done at the factory. This power supply is in very nice condition. It has been lightly used, with only some scratch marks on the bottom from being moved around in it's storage days. There are a few scratches on the top left edge of the case from being handled and that is all of the marks on the other sides of this case that I could find. The front panel is in nice usable shape with all the hand tighten screw on terminals present and the Phillips/Standard-head screws are all in great shape with no rounding out of the heads of the screws. The voltage adjustment screw works and does limit how high the voltage goes as you adjust the screw. The only thing I could find wrong is that are a few areas on the front face where the paint has worn away and the metal is slightly exposed and you can see this in the photos of the front face. All the sides of the casing seems to be in great shape with some small marks , there is a few areas where the factory paint has come off and there are a small bit of surface rust on there areas, please see the photos.. The front of the case has a terminal block. It looks to have been used lightly as there there is only a slight amount of dust. All the ventilation holes on the top, side, and bottom are all clear and clean and are not damaged in any way. There are no burn marks or heat damaged paint anywhere on this power supply. There are several sets of mounting holes on the front,side, and bottom of this power supply, made of course to mount it inside of a rack or other mounting equipment. This power supply is currently wired for 120 input Voltage operation and has a wire connection plug for standard 120 Volt plug into the wall. This power supply was tested and found the, voltage only, to be in working condition. I am unable to correctly test the current output of this power supply, as I do not have a way to properly load test it, I will have to list this as partially working, or for parts only. Specifications of this Power supply LGS-6-15-D-0V-R: (Please note that this is Model "6" not a Model "6A", these specifications are for a "6A", I was unable to find the exact specifications for a model "6"). 1 Nominal output Voltage V Adjustable by user : 0-15 Volts D.C. 2 Maximum Output Current 25Amps Max. @ 40 Degrees C, 23Amps Max. @ 50 Degrees C, 20 Amps Max. @ 60 Degrees C, 15 Amps Max. @ 71 Degrees C 3 Maximum Output Power Watts 970 Watts max at 0.7 P.F. at maximum output voltage, normal line. 4 Efficiency (Typ) % Minimin 64% at maximum output voltage. 5 Input Voltage Range 105 ~132 VAC; 47-440 Hz. 6 Input Current (Typ) N/A 7 Inrush Current(Typ) Limits inrush current at turn on. 8 Output Voltage Range (Typ) % N/A 9 Maximum Ripple & Noise mV 10 mV RMS; 35mV pk-pk. 10 Maximum Line Regulation 0.1% for line variations from 105 to 132 VAC. 11 Maximum Load Regulation 0.1% for 0 to full load. 12 Over Current Protection Pre-set current limiting circuit limiting at factory. Internal failure protection by means of line fuse. 13 Over Voltage Protection Built in, adjustable overvoltage protection standard on all sets. When preset voltage is exceeded, the overvoltage protector crowbars the output and removes the invert drive. Thermal By self resetting thermostat. 14 Hold-Up Time (Typ) 17.5 milliseconds @ 105 VAC 60 Hz Input, Max Output Power. 15 Remote Sensing Provision is made for remote sensing to eliminate effect of power output lead resistance on DC regulation. Remote Programming Resistance 1000 ohms/volt nominal. Remote Programming Voltage volt per volt. 16 Remote ON/OFF Control N/A 17 Parallel Operation N/A 18 Series Operation N/A 19 Operating Temperature Continuous duty from 0 degrees C to 71 degrees. 20 Operating Humidity N/A 21 Storage Temperature -55 degree C to +85 degree C. 22 Storage Humidity N/A 23 Cooling Convection cooled, no blowers, no fans. 24 Temperature Coefficient 0.03%/Degree C. 25 Withstand Voltage Input - Chassis : N/A Input - Output : N/A Output - Chassis : N/A 26 Isolation Resistance N/A 27 Vibration N/A 28 Shock N/A 29 Safety Standard Completely protected. Short circuit proof; continuously adjustable automatic current limiting 30 Conducted Emission N/A 31 Weight Lbs 19 32 Size (WxHxD) inches 3-3/16 Height x 7-1/2 Deep x 15-1/8 wide 33 Monitoring Signal N/A Features of this power supply: The LGS series has passed the following tests in accordance with MIL-STD-810C: 1) Low pressure-Method 500.1, Procedure I. 2) High Temperature-Method 501.1, Procedures I & II. 3) Low Temperature-Method 502.1, Procedure I. 4) Temperature Shock-Method 503.1, Procedure I. 5) Temperature-Altitude-Method 504.1, Procedure I Class 2 (0 degree C operating). 6) Humidity-Method 507.1, Procedure I. 7) Fungus-Method 508.1, Procure I. 8) Vibration-Method 514.2, Procedures X & XI. 9) Shock-Method 516.2, Procedures I & III EMI Conducted and radiated EMI conforms to MIL-I-6181D with one output terminal grounded and FCC docket 20780 Class A. All models are ruggedized to MIL-STD-810 Environmental Conditions. All models are UL recognized and CSA certified thereby minimizing the problems associated with end-user equipment certification. Convection cooled. No fans or blowers required. Meets FCC Docket 20780 Class A and MIL-I-6181D. Built in filtering allows the unit to be used in military and industrial equipment without using external filters to protect sensitive adjacent equipment Grade 1 design. I am available to answer questions in the early morning AMs from Monday through Friday. I do ship items, once they have been fully paid for, in the the very early afternoons on Mondays through Fridays. I do not ship items on weekends or holidays as the USPS is closed on those days. The power supply will be double boxed and shipped as if I was receiving it, an will be very well packaged. Insurance and Signature Confirmation is included in the shipping price of this power supply.
