Vitrek 951i Hipot Ac/dc Dielectric Tester Electrical Safety Compliance Analyzer

US $1,998.00

Valencia, California, United States
Mar 28th

Open on mobile:
QR code

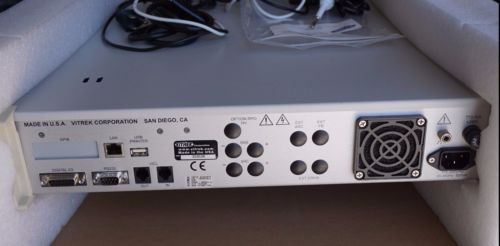

A full functional, like new condition Vitrek 951i DC and AC Dielectric Tester and Hipot Electrical Safety Compliance Analyzer, Digital programmable. made in USA. Purchased new from Vitrek 2 years ago at $4500, only used a few times, original owner.will ship in the original package with original probes and Certificate of Calibration.Here is a copy of the spec sheet. For more product details please go to Vitrek.com. 950i Series Performance Specifications DC Dielectric Tests (DCW, DCIR, DCez, DCCAP) DC Output Voltage: 30V to 6500V (951i & 952i) Resolution: 0.1V up to 999.9V, 1V above Accuracy: 0.25% + 0.5V ( 1 year 23°C ± 3°) DC Current Sourcing: 50mA max, 25mA above 6000V (951i & 952i) 30mA max, 20mA above 6000V, 10mA above Ramp Time: 0.01 to 9999sec, 0.01sec resolution or 0.1 to 50000V/sec, 0.1V/sec resolution Dwell Time: 0.02 to 9999 seconds or user terminated, 0.01sec resolution Discharge: 25mA max in solid-state constant current discharge mode, selectable same as ramp rate or ramp to next level if next step is DCW, DCez or DCIR DC Leakage Current: Measurement Range: 0 to +/-200mA, Resolution: 4 digits (9999 counts) down to 100pico-amp Accuracy: 0.25% + 0.5nA + 1/2 digit ( 1 year 23°C ± 3°) Min & Max Current limits: Selectable for Ramp and Dwell 100 pico-amps and up Measurement Period: 1 power line cycle (50/60Hz) Insulation Resistance (IR): Test modes include: End on pass reading, end on fail or end on dwell timer Test Voltage 5% Accuracy* Max resistance 10% Accuracy* Max resistance 20% Accuracy* Max resistance 500V 50G? 100G? 200G? 1000V 100G? 200G? 400G? 2500V 250G? 500G? 1T? 5000V 500G? 1T? 2T? 10000V 1T? 2T? 4T? *Above uncertainties are approximate, IR accuracy is determined by adding output voltage accuracy to current measurement accuracy in percentages. AC Dielectric Tests (ACW, ACIR, ACez, ACCAP) AC Output Voltage: 30V to 6000V RMS (951i, 952i, 953i, 954i) 100V to 30,000V RMS (option AC-30) Resolution: 0.1V up to 999.9V, 1V above Accuracy: 0.5% + 1.5V (+ 0.01% per Hz above 100Hz) Decrease max output voltage by 0.1% per Hz, above 100Hz Decrease max voltage by 12.5V/mA loading (25V/ma 955i) AC Current Sourcing: 50mA RMS max (951i, 952i, 953i, 954i) 30mA RMS max , (955i) 200mA RMS with option AC-2 (2KVAC RMS max output) 10mA RMS Max with AC-30 option Output Frequency: Digitally synthesized, low distortion sinewave 20Hz to 500Hz, standard or AC-2) 40Hz to 500Hz, (955i) 0.1% accuracy, 0.1Hz resolution (1Hz above 99.9Hz) Ramp Time: 0 to 9999sec, 0.01sec resolution or 0.1 to 100000V/sec, 0.1V/sec resolution Dwell Time: 0.02 to 9999 seconds or user terminated, 0.01sec resolution Accuracy: 0.05% + 20mS Ramp Down: Selectable same as ramp time or ramp to next level if next test step is an ACV test type AC Leakage Current: Measurement Range: 0 to +/-200mA RMS Resolution: 4 digits (9999 counts) down to 100pico-amps Accuracy: 0.5% + 10nA (add 0.005% per Hz above 100Hz) Selectable min & max limits for Ramp & Dwell, from 100 pico amps up Measurement Period: 1 power line cycle (50/60Hz) Phase Measurement: Total RMS current, In-phase current, Quadrature current (reactive/out-of-phase) Accuracy: 0.01° per Hz, relative to output voltage AC Insulation Resistance: Test modes include: End on pass reading, end on fail or end on dwell timer Test Voltage (50/60Hz) 10% Accuracy* Max resistance 20% Accuracy* Max resistance 500V 5G? 10G? 1000V 10G? 20G? 2500V 25G? 50G? 5000V 50G? 100G? 10000V (955i only) 100G? 200G? *Approximate uncertainties, ACIR accuracy is determined by adding output voltage accuracy to in-phase current accuracy in percentages.

“Like new condition, full functional, original owner”

Brand	Vitrek
MPN	S/N 019106
Model	951i
Country/Region of Manufacture	United States
