Wall Chart For Metal Lathe Milling Machine For Bridgeport Hardinge Monarch Etc

US $15.00

Hagerstown, Maryland, United States
Jan 30th

Open on mobile:
QR code

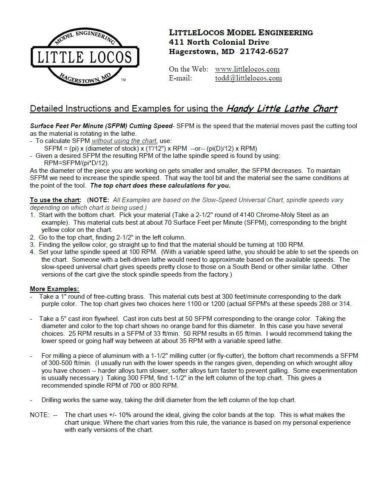

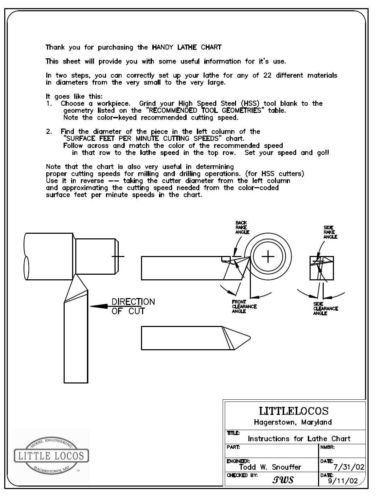

HANDY LITTLE LATHE CHART FAST UNIVERSAL EDITION for 25-3000rpm Metal Lathes and Milling Machines LITTLELOCOS MODEL ENGINEERING is proud to present our HANDY LITTLE LATHE CHART, an outstanding timesaver for your shop. Using one chart, you can easily find the correct tool cutting angles and the proper cutting speeds for any of 22 different materials. Cutting speeds for the "Fast-Speed Universal" edition provides 16 rounded spindle speeds, matching most newer metal lathes and milling machines. This is the most universal of our lathe charts. All cutting speeds are COLOR CODED for ease of use. To use the HANDY LITTLE LATHE CHART: 1. Choose a metal and grind your High Speed Steel (HSS) tool blank to the geometry listed on the “RECOMMENDED TOOL GEOMETRIES” table. Note the color-keyed, recommended cutting speed. 2. Find the diameter of the piece in the left column of the “SURFACE FEET PER MINUTE CUTTING SPEEDS” chart. Follow across and match the color of the recommended speed in that row to the lathe speed in the top row. Set your belts and go!! SPINDLE SPEEDS: Compare the following speeds to your metal lathe and see how close we come: HLLC-U30 Fast Universal 25 50 100 200 300 400 500 750 1000 1250 1500 1750 2000 2250 2500 3000 Note: This is the chart we recommend for newer, faster-turning metal lathes and milling machines of any make. It is our FAST Universal Chart. HANDY LITTLE LATHE CHART – SPECIFICATIONS and USES Each chart is a FULL-COLOR DIGITAL PRINT on 11”x17” bright white paper. Each is FULL-SEAL HOT LAMINATED with heavy duty (5-mil) FILM. The chart is totally sealed for years of use and wipes clean with a soft cloth. We use only GBC Ultra-Clear Laminates and a commercial-quality laminator for highest quality. The Recommended Tool Geometries table gives all the angles needed to correctly grind your high-speed-steel cutter blanks to the correct cutting angles for 22 DIFFERENT MATERIALS. The Surface Feet Per Minute Cutting Speed table calculates the speed that the metal stock passes by the tool tip. THIS IS THE CRITICAL SPEED IN WORKING WITH METAL as each different material likes to be cut at different speeds. GRAPHICAL INSTRUCTIONS, PLUS TWO PAGES OF DETAILED INSTRUCTIONS are included with each chart, showing the definitions for each of the grinding angles and walking through a typical use for the chart. USE IT BACKWARD for your MILLING AND DRILLING OPERATIONS as the cutting speeds apply to all HSS cutters. Just take the rotating cutter diameter as the stock diameter and read the recommended RFM from the top of the chart. SHIPPING INFORMATION: - Shipping to anywhere within the US is via USPS First Class Parcel with Delivery Confirmation. - Shipping to all other countries, world-wide is via USPS First Class Mail International (Air Mail). - FREE US Shipping. $5.00 flat-rate to Canada. $7.00 flat-rate International shipping. - We typically ship within 1 business days of receipt of order. PAYMENT INFORMATION: PayPal Only Please see our “ABOUT ME” page if you would like to know more about Littlelocos terms, policies, recent feedback, etc. Thanks for looking! Powered by eBay Turbo Lister The free listing tool. List your items fast and easy and manage your active items. Froo www.froo.com | Froo Cross Sell, Free Cross Sell, Cross promote, eBay Marketing, eBay listing Apps, eBay Apps, eBay Application

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Country/Region of Manufacture	United States
Model	Fast Universal Chart
Brand	Littlelocos
MPN	U30
