Waveguide Ka Band X4 Frequency Multiplier 33.8ghz - 40ghz Wr28 Radar

US $375.00

  • Ashkelon, default, Israel
  • Jan 29th
Open on mobile:
QR code
  Waveguide Ka Band Multiplier x4  33.8 - 40GHz WR28 (+ 34.3GHz ) Radar transmitter   GOOD WORKING CONDITION , FULLY TESTED.       * SEE THE VIDEO AT END OF PAGE ! ** This x4 Active Multiplier will multiply signal from 8.5 to 10GHz at input  TO 34 - 40GHz at output !   sale is for ONE UNIT.  SALE PRICE ! power out :  13dbm from 33.8 to 35GHz  and 17dbm from 35 to 40GHz !  High power , 12v ,  the output is waveguide WR28 that can connect to waveguide horn antenna . ( will also work below 33.8ghz with low power out ) ONLY THE X4 Multiplier is included.  ( you can buy signal source of 8 to 10GHz Stellex Yig - Many on Ebay for 30 to 40$ )  the yig can be modulated and this will be x4 multiplied to Ka RADAR BAND. This is Active Multiplier with High output power, hard to find , can be used in many applications like Test source, communication, Radar, Jamming etc... INV:R3M3B2   SAMPLE OF APPLICATION :ON THE LEFT - STELLEX YIG AS SOURCE 8 TO 10GHz ( Stellex yig NOT included ) , ON THE RIGHT - THE X4 MULTIPLIER FOR SALE , PRODUCE 33.8 TO 40GHz ! High Power ( 12v operation , need Heat sink) ( UNIT ALSO WORKS BELOW 33.8GHZ WITH REDUCED POWER OUT ,  33.8GHz give 14dbm ! )
Condition Used :
An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections.
Seller Notes “good working condition”

Directions

Similar products from Waveguides Adapters & Terminators

COMMSCOPE SNAP IN FOR WAVEGUIDE CABLE. PART# EWSH-63. QTY-10

COMMSCOPE SNAP IN FOR WAVEGUIDE CABLE. PART# EWSH-63. QTY-10

  • Chicago Heights, Illinois, United States
  • Jan 29th
RF SWEEP SIGNAL GENERATOR 92 - 95GHz ( W BAND ) WR10 MICRO-NEW 716 WAVEGUIDE OUT

RF SWEEP SIGNAL GENERATOR 92 - 95GHz ( W BAND ) WR10 MICRO-NEW 716 WAVEGUIDE OUT

  • Ashkelon, default, Israel
  • Jan 29th
WR22 WAVEGUIDE ASSY TRG 07397 09-1929305 33 - 50GHz

WR22 WAVEGUIDE ASSY TRG 07397 09-1929305 33 - 50GHz

  • Ashkelon, default, Israel
  • Jan 29th

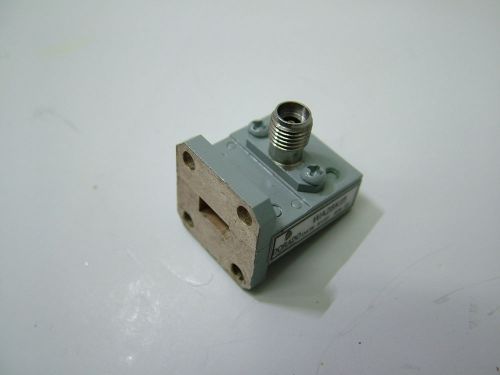

WR28 TO K CONNECTOR WAVEGUIDE ADAPTER WA28K 26.5 - 40GHz
