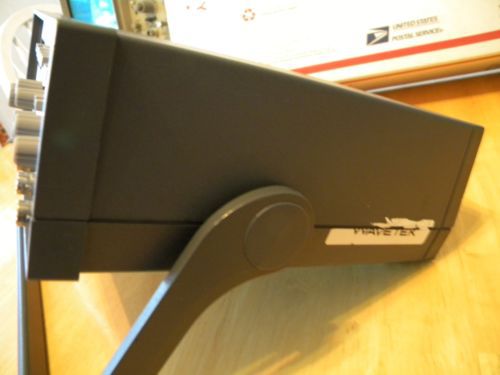

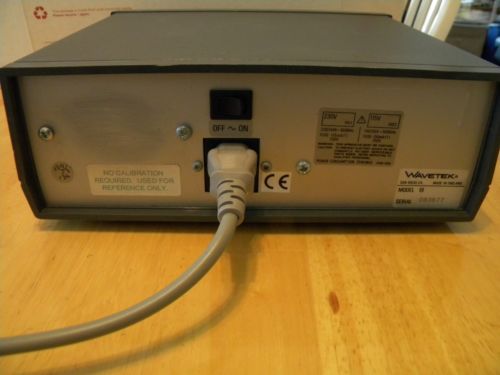

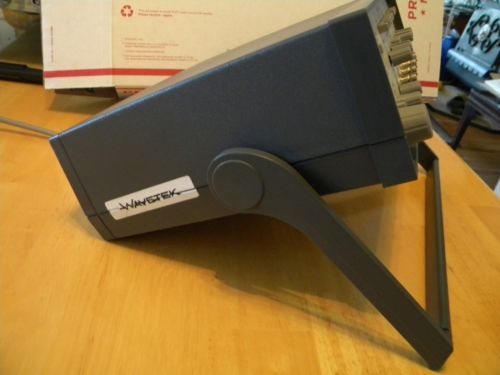

Wavetek 2mhz Sweep Function Generator Model 19

US $68.00

  • Portland, Oregon, United States
  • Jun 9th
Open on mobile:
QR code

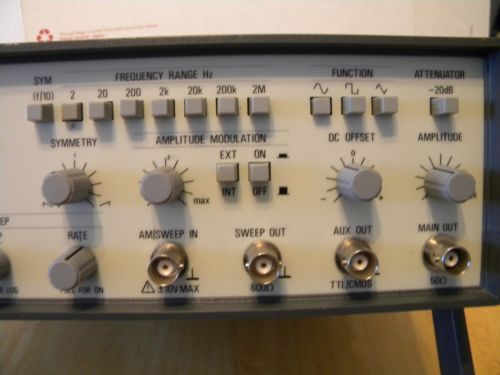

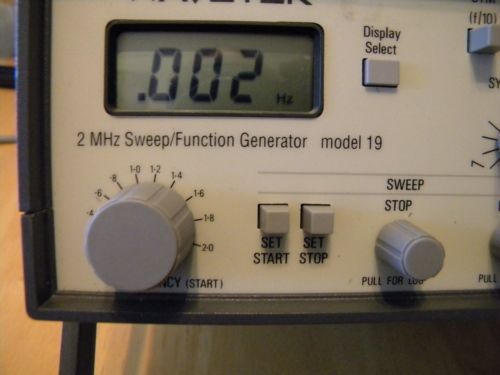

2 MHz Sweep/Function Generator The generator is a precision source of sine, triangle, ramp, and pulse waveforms plus DC output. A TTL/CMOS output is also provided. The frequency range is 0.002 Hz to 2MHz selected by a seven decade range multiplier and calibrated vernier. Both the frequency vernier and the sweep input can control up to 1000:1 frequency change within a selected range.The generator output level is 20 Vp-p maximum from a 50 ohm source. The level is set via a switched attenuator plus vernier with a total range of 50 dB. DC offset is vernier adjustable over a ±10V range with center detent for 0V. A 9:1 symmetry range permits ramp and pulse waveforms to be produced. Waveforms sine, triangle, square, TTL pulse or DC OUT Frequency 0.002 Hz to 2 MHz (7 ranges) 2: 0.002 to 2 Hz 20: 0.02 to 20 Hz 200: 0.2 to 200Hz 2k: 2 Hz to 2kHz 20k: 20 Hz to 20 kHz 200k: 200 Hz to 200 kHz 2 M: 2 kHz to 2MHz Internal Sweep Generator Sweep Range Up to 1000:1 within each range Sweep Rate 30 ms to 15 s (typically 20 ms to 20 s) Sweep Mode Linear or logarithmic. Amplitude Modulation Modulated by internal 400 Hz oscillator Precision (Display Accuracy) Frequency ±5 digits on 2 kHz to 2MHz ranges <= 1.5% of full scale on 2Hz to 200Hz ranges Amplitude Typically 5% of range at 1kHz DX offset Typically 2% of reading + 100 mV Resolution 0.05% maximum on all ranges (1 part in 2000) Distortion less than 1% on 200, 2k and 20k ranges (sine) less than 1.5% on 20 and 200k ranges (sine) Output Impedence Source of selected function at 50 ohm Peak Output 100 mA maximum into 50 Ohm
“Excellent condition. Minor case scuffing.”
Brand Wavetek
MPN 083677
Model Model 19
Country/Region of Manufacture United Kingdom
