Weighing 24 Bit Hx711 Sensor Dual-channel Precision A/d Module Pressure Sensor

US $1.17

Hong Kong, Hong Kong
Jan 29th

Open on mobile:
QR code

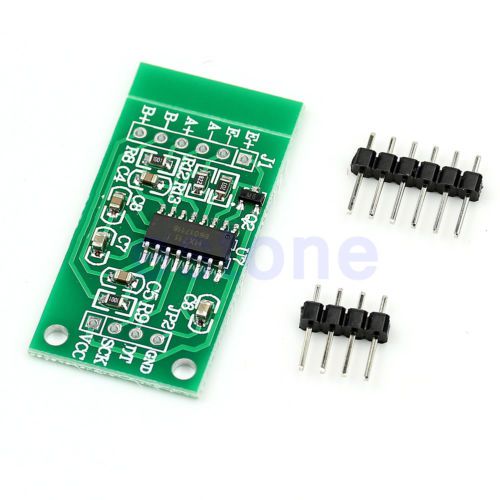

a¦aЂ“a°a?a»a?a§a 1/2 aЂ~a©a?aµ 6 HX711 Weighing Sensor Dual-Channel 24 Bit Precision A/D Module Pressure Sensor Description: 100% brand new and high quality Quantity:1pc Weight:5 g Color: as picture show Size:40mmx20mm/1.56"x0.79"(inch) (approx) This module uses 24 high precision A/D converter chip hx711. It is a specially designed for the high precision electronic scale design, with two analog input channel, the internal integration of 128 times the programmable gain amplifier. The input circuit can be configured to provide a bridge type pressure bridge (such as pressure, weighing sensor mode), is of high precision, low cost is an ideal sampling front-end module. Features: *Two selectable differential input channels *On-chip active low noise PGA with selectable gain of 32, 64 and 128 *On-chip power supply regulator for load-cell and ADC analog power supply *On-chip oscillator requiring no external component with optional external crystal *On-chip power-on-reset *Simple digital control and serial interface: pin-driven controls, no programming needed *Selectable 10SPS or 80SPS output data rate *Simultaneous 50 and 60Hz supply rejection *Current consumption including on-chip analog power supply regulator: normal operation < 1.5mA, power down < 1uA *Operation supply voltage range: 2.6 ~ 5.5V *Operation temperature range: -40 ~ +85°C *This module uses 24 high-precision A / D converter chip hx711, is designed for high-precision electronic scale and design, with two analog channel input, the internal integration of a gain programmable amplifier 128. Input circuit can be configured to provide an electrical bridge bridge voltage (such as pressure, weight) sensor model is an ideal high-precision, low-cost sampling front-end module. If you need files, please click this button below. Download Note: Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you! Package includes: 1pc HX711 Weighing Sensor Dual-Channel 24 Bit Precision A/D Module . Payment: We accept payment through Paypal ONLY. If you do not have Paypal account, please registered with (http://www.paypal.com) Payment must be received within 5 days after auctions ended. Please do not bid if you are not intending to buy. Unpaid dispute will be filed to ebay for the non payable bidders. Shipping and handling:
