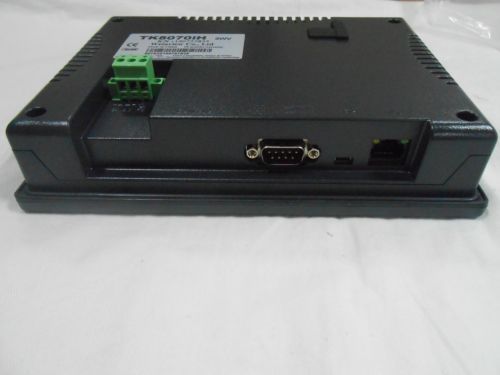

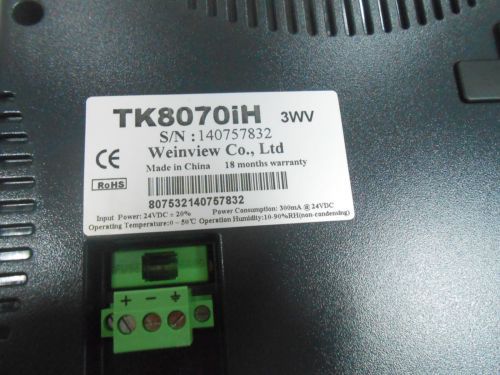

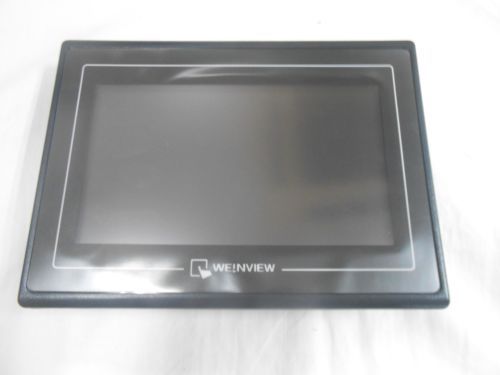

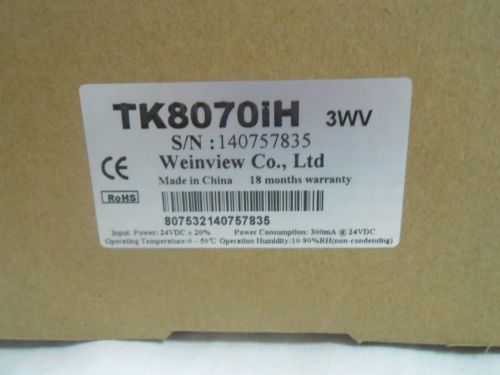

WEINVIEW HMI TK8070IH 7" Human Machine Interface New in box free shipping, US $325.00 – Picture 0

WEINVIEW HMI TK8070IH 7" Human Machine Interface New in box free shipping, US $325.00 – Picture 1

WEINVIEW HMI TK8070IH 7" Human Machine Interface New in box free shipping, US $325.00 – Picture 2

WEINVIEW HMI TK8070IH 7" Human Machine Interface New in box free shipping, US $325.00 – Picture 3

WEINVIEW HMI TK8070IH 7" Human Machine Interface New in box free shipping, US $325.00 – Picture 4

Weinview Hmi Tk8070ih 7" Human Machine Interface New In Box Free Shipping

US $325.00

shenzhen,Guangdong, China
Jan 29th

Open on mobile:
QR code

WEINVIEW HMI TK8070IH 7" Human Machine Interface New in box free shipping Descriptions: MT8000 series is the new HMI generation of Weintek. With the design concept of meeting customers’ satisfaction while easy-to-Use attribute as before, a MT8000 not only performs as a Human Machine Interface but also plays as a role of data exchange center. Through the most popular Ethernet connection, data can be shared among MT8000s without limitation and any SCADA/HMI software on the PC can simply access data from MT8000s. Features: Specifications Display 7" TFT Brightness 350 cd/m2 Color 65,536 colors Contrast Ratio 550:1 Resolution (W x H dots) 800 x 480 Back Light LED CCFL Life Time 30,000 hr. Touch Panel 4 wires resistive type Touch Accuracy Active Area Length(X)±2%, Width(Y)±2% Surface Hardness 4H I/O port COM1 (RS-232/RS-485 2W/4W), COM2(RS232), USB Host 1 USB 2.0 Full Speed Host port Audio 1 x Audio Line Out, 1 x MIC In Processor 32bit RISC CPU 400MHz DRAM 128MB 64MB DDR2 RAM Ethernet 10 / 100 Base-T General Specification Input Power 24±20% VDC (Power Isolator Inside.) Power Consumption 1.6 A@24VDC CE Complies with EN50081-2 and EN50082-2 standards FCC Complies with FCC Class A Voltage Resistance 500VAC (1 min.) Isolation Resistance Exceed 50? at 500VDC Vibration Endurance 10 to 25 Hz (X,Y,Z direction 2G 30mins) Protection Structure IP65 front panel (O ring seal) Operating Temperature 0~45°C Operation Humidity 10-90% RH (non –condensing) Enclosure Aluminum Dimensions WxHxD 200 x 146 x 41.8mm Panel Cutout Dimensions 192 x 138 mm (7.5"x5.4") Weight Approx. 0.7 kg Operating System Operating System EB8000 V4.5 or Newer Applications: Weinview HMI, couple with PLC, can be used on such field as glue pudding machine, printing machinery industry, tire industry, food machinery, fryer, toughening furnace, textile industry, packaging machinery industry, charging piles, incubation industry, SCADA System, pharmaceutical machinery industry, sewage disposal monitoring system, solar photovoltaic grid-connected inverter, plastic industry, hybrid electric bus industry, screw compressor, electrical power engineering, speed frames Schematic diagram Other hot items of this WEINVIEW HMI for above applications: MT506MV Weinview HMI MT506MV 5.6" New in box free shipping TK6070IK Weinview HMI TK6070IK 7" New in box free shipping TK6070IH Weinview HMI TK6070IH 7" New in box free shipping TK6100IV5 Weinview HMI TK6100IV5 10" New in box free shipping TK6102IV5 Weinview HMI TK6102IV5 10" New in box free shipping TK8070IH Weinview HMI TK8070IH 7" New in box free shipping MT6050IV Weinview HMI MT6050IV 4.3" New in box free shipping MT6070IH Weinview HMI MT6070IH 7" New in box free shipping MT6100IV2 Weinview HMI MT6100IV2 10" New in box free shipping MT6100IV5 Weinview HMI MT6100IV5 10" New in box free shipping MT8050I Weinview HMI MT8050I 4.3" New in box free shipping MT8070IH Weinview HMI MT8070IH 7" New in box free shipping MT8100I Weinview HMI MT8100I 10" New in box free shipping MT8104IH Weinview HMI MT8104IH 10" New in box free shipping MT8121X Weinview HMI MT8121X 12.1" New in box free shipping MT8150X Weinview HMI MT8150X 15" New in box free shipping Contact information: Fast To Buy Ltd 1207, International E-Commerce Industrial Park of FuTian, Shangmeilin, Futian district, Shenzhen, 518049, CN Phone: +0086 13724354369 or +0086 755 82546545 email: ebay@fasttobuy.com skype: ebayfasttobuy our working time: EST 9:00AM ~ 6:00 PM Shipment: Once payment received. Item will be shipped out within 1-3 working days by DHL, Fedex, UPS, EMS ASAP. Usually it takes 3-7 working days to most of the country. You will be notified the traking number once shipped out. Kindly please note the Tax fee and Customs clearance fee are not included in the item’s listing price. Kindly please feel free to contact us before shipping if there’s any thing we can do for you. Warranty: Fast To Buy Ltd make sure the item is brand new with original package and offer 1 year warranty for the quality. Return policy: We accept return or refund within 14 days for the quality reason, not man-made reason. Kindly please contact us before returning the package. Payment will be refunded to you within 24hrs once the package received by us. You understanding appreciate. Kindly note: Pls check and confirm the part NO. and your application before place order, any further assistance please feel free to let us know.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	WEINVIEW
MPN	TK8070IH
Model	TK8070IH
