Wideband Pulse/ac Current Monitor Transformer Ion Physics Cm-01-s 1mv/a 500khz

US $279.00

Alviso, California, United States
Feb 13th

Open on mobile:
QR code

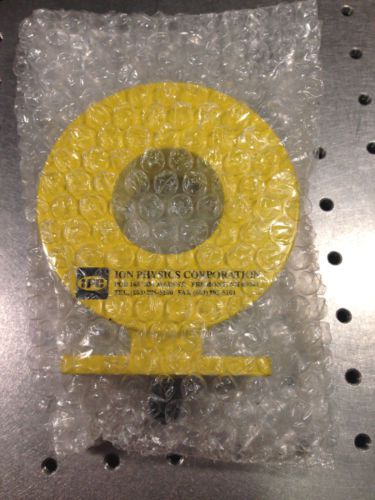

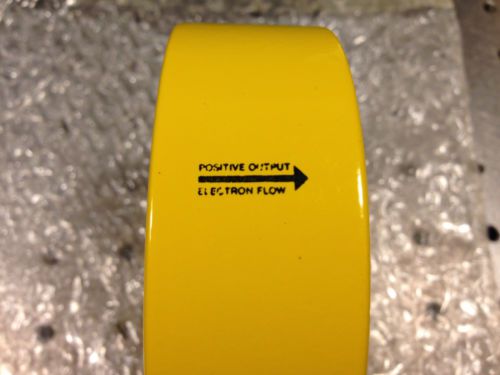

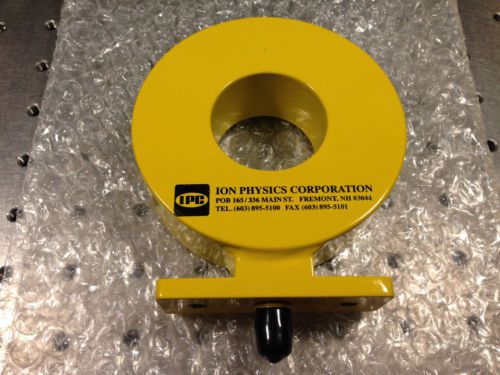

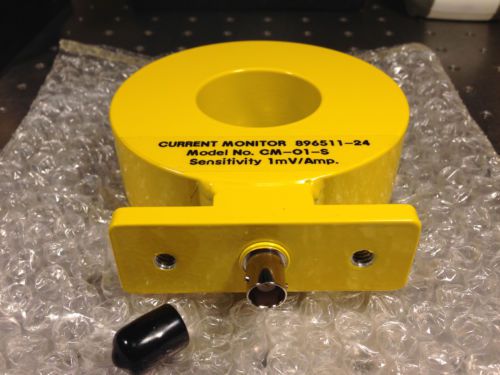

NEW Ion Physics CM-01-S Wideband Pulse Current Monitor IPC's current monitors are wide band current transformers that measure ac or pulse currents with an oscilloscope or other voltage-sensing instrument. By passing the current-carrying conductor or charged particle beam through the monitor opening, the monitor will sense the associated magnetic field and accurately measure the current without requiring a direct connection. IPC's current monitors convert the primary current into a proportional voltage signal, which is then displayed on the scope or voltmeter. More information is available on the IPC web site. Specifications Sensitivity into 50 Ohms: 1 mV/A Max. Allowable Peak Pulse Current: 500 KA Max. RMS Current at 60 Hz: 600 A Max. Allowable ? i dt Value without Bias: 2.0 As Max. Allowable ? i dt Value with 0.5A Bias: 6.0 As Max. Allowable Ratio of Peak Current to Frequency: 20 As Droop: 0.25 %/ms Low Frequency 3 dB Point: 0.4 Hz Useable Risetime: 700ns High Frequency 3 dB point: 500kHz Hole Diameter: 1.6" (4 cm) Outer Diameter: 4.0" (10.2 cm) Thickness: 1.2" (3.05 cm) Notes Monitor is electrostatically shielded and has a female BNC connector. Monitor is designed to operate into an impedance of 50 ohms at the scope or other test instrument as this configuration produces the best risetime. Monitor is calibrated at 400 Hz to agree with standard monitor within plus/minus 0.5%. The CM-01-S has similar specifications as the CM-01-L, but uses a different core material which increases its droop and low frequency 3dB point and is better for unipolar repetitive pulses. Click HERE for complete specifications. To see other related items, be sure to Visit my eBay Store If you like what you see, you can Add Junktronix to your Favorite Sellers List Why Buy From Junktronix? eBay member in good standing since 1996 We specialize in lasers and photonic test equipment and have developed expertise and tools to properly test most of the items we sell All items offered with a 100% Satisfaction Guarantee Payment We always accept payment by PayPal. If your organization does not allow PayPal, please contact us to arrange payment by credit card or bank wire transfer. California residents will be charged sales tax. Shipping Please use the eBay shipping calculator to determine the carrier and cost for shipping. We ship most items by USPS with no packing or handling charge added. Some heavier or more expensive items will ship by UPS. We can ship by FedEx on request and international delivery by DHL is also available. Please contact us before bidding if you require a different shipping method. Warranty Items listed AS-IS do not include any warranty. Items listed as NEW or USED are guaranteed to arrive in the condition described in the listing. Items which are found to be significantly not as described may be returned for a full refund. If you receive an item which has been damaged in shipping, please hang on to the packing material and contact us. We will file a damage claim with the shipper and start the process of getting you a replacement or a refund. Return Policy Everything we sell comes with a 100% satisfaction guarantee. If you are not satisfied with your purchase, you may return it. Items must be returned in the condition received and include all the original cables, paperwork and packaging. Shipping charges are not refundable and most items will incur a 15% fee to cover testing and restocking the item. Items found to be damaged, altered or in any other way not re-sellable cannot be refunded. International Sales We are qualified to ship non export restricted items almost anywhere in the world. Import duties, taxes, and charges are not included in the item price or shipping cost. These charges are the buyer's responsibility. Please check with your country's customs office to determine what these additional costs will be prior to bidding or buying. CONTACT US Starlight Photonics PO Box 1134 Alviso, CA 95002 eBay@StarlightPhotonics.com 408-940-5273

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Ion Physics Corp
Country/Region of Manufacture	United States
Model	CM-01-S
MPN	CM-01-S
