Wolfvision Vz-7d Desktop Visualizer Projector

US $199.99

Woodbridge, Virginia, United States
Jan 30th

Open on mobile:
QR code

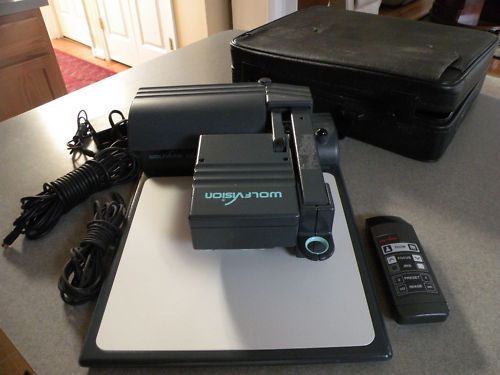

Wolfvision VZ-7D Desktop Visualizer This unit is in very good physical condition. It was tested and is fully functional. It comes with the carrying case. Features: Technology PAL or NTSC video Camera 1-CCD 1/4" Pictures per second (as picked up by the camera) 50 (PAL) or 60 (NTSC) fields (=half-pictures) Effective Pixel (=pixels actually used for image information) 752 x 582 (PAL) 768 x 494 (NTSC) Total pixels of CCD(s) 470,000 Pixels processed per second (=effective pixels x frames per second) 10,900,000 Color reproduction / precision very good colors Native signal output PAL or NTSC Resolution (measured) 470 lines Iris automatic and manual White balance adjustment automatic and manual Autofocus / Speed yes (continuously working) Manual focus yes On screen menu and on screen help DIP-switches can be used to change basic settings Zoom / Lens 18 x optical + 4x digital Max object height on working surface 130mm (5.1") in tele position 370mm (15") in wide position Max. pick-up area on working surface length: 270mm (10.8"), width: 360mm (14.4") Min. pick-up area on working surface (in full resolution, with optical zoom) 22 x 16 mm (0.9" x 0.6") Min. pick-up area on working surface (with digital zoom) 5.5 x 4 mm (0.2" x 0.2") low resolution Max. pick-up area outside of working surface unlimited Depth of focus on small object (42 x 33 mm) 18mm (0.7") Depth of focus on large object (360 x 270 mm) 200mm (8") Tilt range of camera 110° (20° to speaker + 90° to audience) Blinding of audience or speaker none Light source long life high frequency fluorescent lamp average lifetime 10000 hours 9W, 48V Reflection free area on working surface 284 x 230mm (11.1"x 9.2") Recordings outside of the working surface yes (to the back of the unit) Intelligent folding system pneumatic arm, 3-step set up User programmable presets 3 (plus 8 fixed presets through RS232) Special working surface for transparencies yes Slide pick-up through slide drawer on camera head Bottom light optional external lightboxes Y/C (=S-video) output one (original S-video), 4-pin Composite video outputs one (RCA) RS232 port 9-pin D-Sub Dimensions in operation (L x W x H) 405mm x 310mm x 580mm (15.9" x 12.2" x 22.9") Dimensions folded (L x W x H) 405mm x 310mm x 121mm (15.9" x 12.2" x 4.8") Weight 5 kg (11 lbs) Remote control Infrared (with laserpointer) Power External power pack: multi range 100-240 V, 20W, power consumption: 18W Carrying case / dust cover carrying case included Made in EU / Austria FREE! Sellers: Add a FREE map to your listings. FREE!
