Wood Casting Pattern For 2 Belt Grinder Wheels

US $125.00

  • Rogers, Arkansas, United States
  • Feb 24th
Open on mobile:
QR code

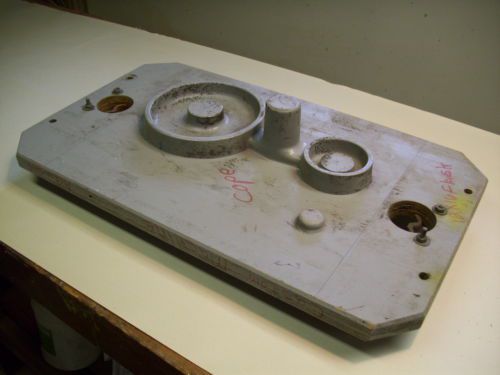

Wood casting pattern for two belt grinder wheels. Wheels are 2 1/4 inch wide (will finish machine for a 2 inch belt),3 1/2 in. dia and 6 7/8 in. dia. Hub is large enough to fit a water pump bearing (Federal Mogul #885165-1). Pattern fits a 12x16 inch flask and has the pin guides. Pattern was made for and always cast w/ aluminum, a foundry will need to be consulted to use other materials. Wheels were designed to be idler wheels for a 2 inch belt belt grinder. They can be used with the big wheel as the drive wheel and the small wheel as idler. It would lack the rubber cover on the drive wheel but would make a low cost sander and if all the work was done on the belt between wheels (with a backup on the belt) you would never know the differance. The purchase of a pattern will pay for it self very quickly over the cost of solid aluminum wheels. I can supply the name of good foundry in Oklahoma but a local source would save on shipping cost. On your first batch be sure to order extra cause they some how disappear. . Good luck in your bidding
