Wood Lathe Chuck/spindle Adapter Morse Taper 2 To 1" - 8tpi - From Lathecity

US $35.99

Fargo, North Dakota, United States
Jan 30th

Open on mobile:
QR code

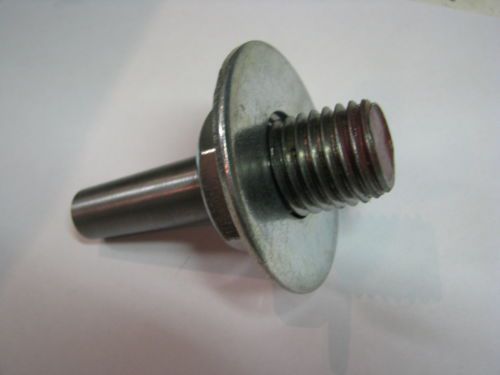

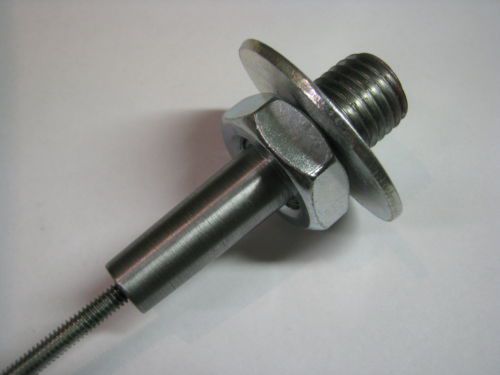

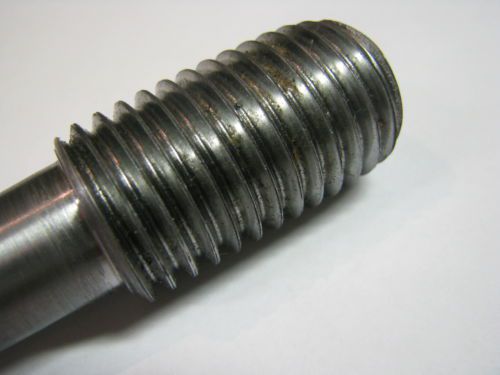

May be used as a spindle-adapter for a wood lathe from LatheCity Included: Morse Taper #2 (MT2) to 1"-8 TPI (x1.5" thread length), steel, 1/4-20 drawbar, RH threads + nut and washer runout should be sufficient for a wood lathe LatheCity tip: Putting a shoulder on the spindle would be significantly more expensive. We can do that as a custom design, but $60. If you need a shoulder to hold a chuck then use a nut and eventually a washer (included). Tighten the nut against the chuck. The thread length (1.5") is long enough for most chucks which require only 1" thread length. 1-8TPI nuts should be available locally in a good hardware store, but we offer one together with the spindle. In addition, various chucks are in circulation which require different thread length. This spindle has an "adjustable" thread length. These are right hand threads, i.e., don't reverse RPM. The spindles are taped at the backend for 1/4-20 bolts which can be used to fix a drawbar. A drawbar is common on metal lathes. It is a bolt or threaded rod which is inserted into the backend of the spindle to secure the spindle. This may not be necessary for wood lathes. The spindles have an estimated runout smaller 0.005" which is sufficient for wood lathes. The piece is cut on a lathe with spindle runout of 0.0004"-0.0006" The chuck should be screwed against the nut. Hold the nut with a wrench and screw the chuck against the nut. Draw bar is not included, use a long 1/4-20 screw or threaded rod (if required on your lathe). The length of the drawbar depends on your lathe model, they are all different, i.e., it would not make sense to include this. Safety Notes, Trouble Shooting, and Disclaimer: General safety rules for machine/power tools are in place. For an extended list of safety notes, consult the literature or go to our website. You can download free of charge a safety booklet, which is also typically included (free of charge) for first-time customers. Use protective closing including, most importantly, safety glasses. The adapter may start to rotate. Do not try to stop the rotating adapter with your hands. Do not reverse the lathe rotation direction or one may unscrew the adapter. Use the drawbar to secure the spindle. The spindle should rotate towards you (on front side of the lathe bed). The chuck should be screwed against the nut. Hold the nut with a wrench and screw the chuck against the nut. The runout (TIR) of the adapter may not be sufficient for using it on a metal lathe. TIR estimated as approx. 0.005" (Machined on a lathe with TIR 0.0006") RPM maximum are 2800. We do not warrant that any accessories can be used for any particular application. Usage of accessories or damage caused by unprofessional use is at the risk of the customer. Neither LatheCity nor its owner shall be liable for damage arising from unprofessional use or misuse of LatheCity accessories. Neither LatheCity nor its owner shall be liable for damage arising from unprofessional use or misuse of LatheCity accessories. Any legal action brought against LatheCity/Uwe Burghaus shall be tried in the State of North Dakota in Fargo, USA. WARRANTY: we do not provide any warranty for our products. In no event shall LaheCity's liability exceed the purchase price paid for the product. We shall in no event be liable for death, injuries to persons or property or incidental, contingent, special or consequential damage arising from the use of our products. Returns in resalable conditions are accepted within 14 calendar days after shipment. All shipping costs will be covered by the customer. We do not reimburse credit card fees, taxes, import taxes, broker fees, whatnot fees/taxes if applicable at all. No restocking fees, no questions asked. No returns of custom designs or customized designs. No returns of bulk orders. We do not reimburse shipping costs for items shiped as free shipping. Note, however, that the return rate of LatheCity products is below 1%. International shipping: no insurance, no tracking, no reimbursement or replacement of lost international orders, custom fees, credit card fees, broker fees, taxes, are up to the customer. We charge up to $3 for handling on international orders. Over payed shipping will be reimbursed via PayPal. Other shipping options on request. We ship at cost internationally. Uwe Burghaus (LatheCity) Made in US. We are a manufacturer & not a retailer. Fargo, North Dakota, USA ©, 20124 LatheCity

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	LatheCity
Country/Region of Manufacture	United States
Model	Wood lathe chuck adapter
Country of Manufacture	United States
MPN	wood lathe spindle adapter
