Xilinx Spartan-3 Fpga Kit. Development Board Xk2f3

US $49.99

Tallinn, Harjumaa, Estonia
Jan 29th

Open on mobile:
QR code

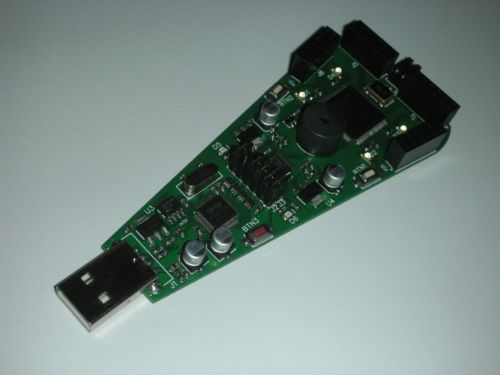

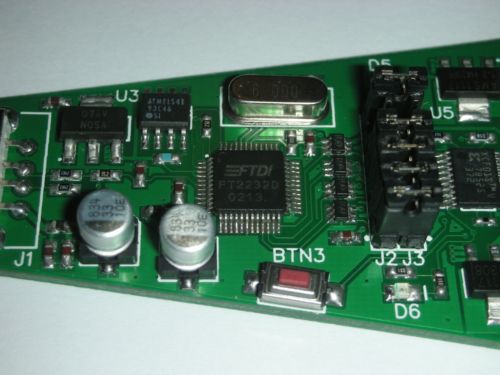

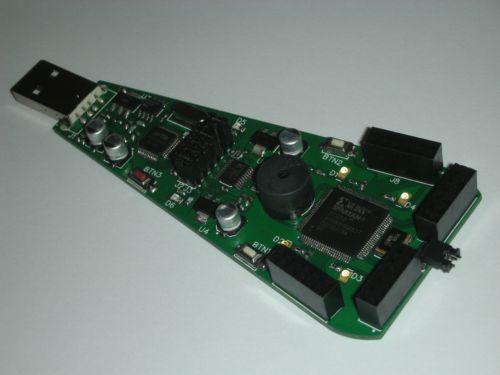

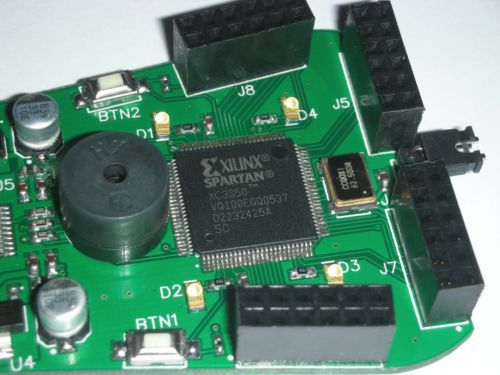

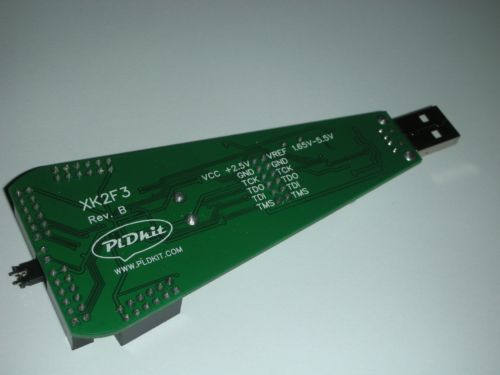

Introduction Xilinx SPARTAN-3 XK2F3 FPGA kit mainly oriented for FPGA beginners and students. Handy board design allows to overcome problems, which experience beginners, when starting to learn XILINX FPGA programming. This kit doesn’t require external power supply or programming cable. Kit is powered from USB. Onboard USB controller allows JTAG programming and UART communication. Kit also has basic peripherals for easy FPGA projects. Experienced users also can find this kit useful, because it can be used as USB programmer, for programming any other external JTAG device, not necessarily XILINX. Documentation includes easy, step by step instructions, and demo projects, for complete beginners. Features 1) XILINX XC3S50 VQ100 5C FPGA * 50000 gates (1728 Logic Cells) * 63 User I/O (42 routed on this board) * 4x 18x18 hardware multipliers * 4x 18K-bits block RAMs (72K) * 2 Digital Clock Managers * Fully supported by latest XILINX design tools 2) XILINX XCF01S VO20C FLASH * 1 Mbit Platform Flash PROM * IEEE Standard 1149.1/1532 Boundary-Scan (JTAG) support for programming * Endurance of 20000 Program/Erase Cycles * Fully supported by latest XILINX design tools 3) FTDI FT2232D USB controller * USB to JTAG port A * USB to UART port B * Reset supervision * Buffered port for programming external JTAG devices. Vref 1.65V -5.5V 4) Onboard IO peripherals * 4 LEDs * 2 push buttons * Speaker * 62.500 MHz CMOS crystal oscillator (can be converted to 50MHz) 5) Handy configuration * Configuration from onboard USB programmer * Configuration from external programmer * Mode select jumper (JTAG or FLASH) * DONE LED * Reset push button 6) Onboard power supply * Kit is powered from USB * 5V (USB controller) * 3.3V (IO, PERIPHERALS) * 2.5V (VCCAUX) * 1.2V (CORE VOLTAGE) * POWER-ON LED 7) 32 independent I/O routed to the connectors * Four 2x6 female connectors (8 IO, 2 VCC, 2 GND) * Peripheral modules support * 2.54mm pitch for all connectors * 3.3V IO voltage 8) Small and handy PCB outline Schematics, user's guide, demo projects Package includes: 1x XK2F3 FPGA kit Standard traceable shipping worldwide. Within European Union, most of the packages are delivered in 3-6 work days. Check my other auctions

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	PLDkit
Country/Region of Manufacture	Estonia
Model	XK2F3
