Yaskawa Z1000 Ac Drive - For Hvac Fan And Pump W/ Manuals 7 1/2 Hp

US $1,099.99

Enfield, Connecticut, United States
Jan 29th

Open on mobile:
QR code

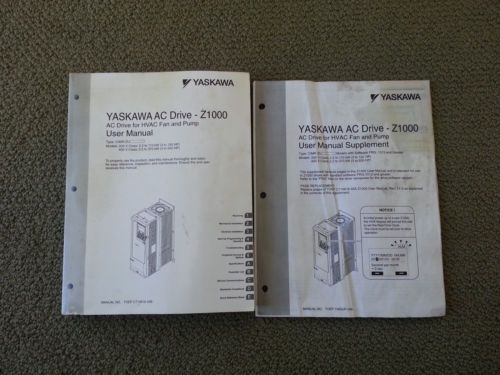

Yaskawa Z1000 AC Drive Used but in working condition Comes with manuals. Here is the product details from the manufacturers website: Specifications and Features for Z1000 Drive Harmonic Mitigation Built-in 5% line impedance for input harmonic reduction. Noise Filter On board EMI/RFI filter complies with IEC 61800-3 restricted distribution for first environment. Serial Communications Embedded BACnet communications (BTL Certified), along with Modbus/Memobus. Ratings Plenum Rated (UL 1995). Seismic Rated (IBC 2006 - Certification 12/2011). Made with RoHS compliant materials. Internal Real-Time Clock Time and date stamping for events, along with timer controls for starting stopping and speed changes without the need for external controls. PI Feature Maintains a set point for closed loop control of fans and pumps for pressure, fl ow or temperature regulation and eliminates the need for a closed loop output signal from a BAS. Independent PI to control an external device in the system. LCD Operator 5-Line 16 character alpha-numeric, easy to read and understand display, with Hand-Off-Auto functions. Carrier Frequency 5 kHz carrier frequency with dynamic noise control for quiet motor operation. Application Macros Choose from pre-configured set up macros to match the application for quick and easy set up. Sealed Heatsink Allows for drive to be mounted in a NEMA 12 enclosure with heatsink external. Item Specification Overload Capacity 110% for 60 seconds, 175% instantaneous Output Frequency 0.01 to 240 Hz Control Methods V/Hz Control Open Loop Vector Control for Permanent Magnet motors Motor Types Squirrel Cage Induction Type Interior Permanent Magnet (IPM) Enclosures NEMA Type 1 / IP20 : 3 - 100 HP 208V and 3 - 250 HP 480V Open Type / IP00 : 125 - 150 HP 208V and 300 - 500 HP 480V Ambient Operating Temperature -10°C to 40°C (14°F to 104°F) Global Certification UL, CSA, CE, RoHS Standard I/O Multi-Function Programmable Digital Inputs (24Vdc): 7 Multi-Function Programmable Analog Inputs (0-10VDC or 4-20mA): 2 Fault Relay Output (Form C - 2 Amps at 250Vac max): 1 Multi-Function Programmable Relay Output (Form A - 2 Amps @ 250Vac max): 3 Multi-Function Programmable Analog Outputs (0-10Vdc or 4-20mA): 2 24 Vdc, 150 mA Transducer or Transmitter Power Supply for customer use: 1 Network Communications Built-in BACnet, RS485/422 - Programmable up to 76.8 kbps Optional: LonWorks, Metasys / APOGEE FLN If you have any questions or want more pictures feel free to email me Thank you for looking at my auction.

Condition:	Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...	Brand	Yaskawa
Model	Z1000
