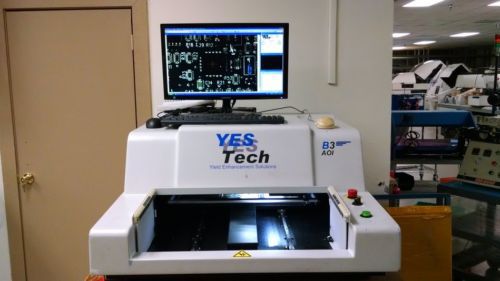

Yestech B3 2009 AOI Automated optiacal inspection system PCB SMT Powered by SellerVantage Product DescriptionPaymentShippingReturnsAbout UsLegal Yestech B3 AOI System - 2009 Vintage Standard and Hi-Mag high resolution cameras multi color lighting good working order Info from the mfg - not verified to be 100% accurate YESTech’s advanced Thin Camera™ technology offers off-line benchtop PCB inspection with exceptional defect coverage. This benchtop system inspects solder joints and verifies correct part assembly enabling users to improve quality and increase throughput. Programming the B3 is fast and intuitive. Operators typically take less than 30 minutes to create a complete inspection program including solder inspection. The B3 utilizes a standard package library to simplify training and insure program portability across manufacturing lines. Programs created with the B3 are also compatible with YESTech’s complete line of AOI systems. Newly available Fusion Lighting™ and advanced image processing technology integrates several techniques, including color, normalized correlation and rule-base algorithms, to provide complete inspection coverage with an extremely low false failure rate. The B3 is equally effective for pre / post-reflow or even final assembly inspection. Remote programming maximizes machine utilization and real-time SPC monitoring provides a valuable yield enhancement solution. AUTOMATED INSPECTION FOR: Solder & lead defects Component presence and position Correct part Polarity Through-hole parts Paste YESTech “World Leader in Automated Optical Inspections and X-Ray Inspection Systems” SPECIFICATIONS* Inspection Capabilities Throughput 4 sq. in./ sec.: > 200,000 components per hour Maximum Board Size 350mm x 250mm (14 x 10 in.) Clearance 2” (50mm) top and bottom Minimum Component Size 01005 Defects Detected Component: position, missing, wrong, polarity, skew, tombstone Lead: bent, lifted, bridging Solder: open, insufficient, short, solder balls Software Algorithms Normalized correlation, OCV, OCR, barcode recognition and rule-based CAD Translation Package CircuitCAM, Unicam, YESTech CAD Utility Programming Skill Level Technician or operator Operating System Windows XP Off-line Software Optional - Rework, Review and Program Creation SPC Software Optional - Real-time local and remote monitoring of first pass yield, defect trends, and machine utilization. Hardware Lighting Proprietary Fusion Lighting™ multiangle LED Imager Thin Camera: 25 micron, and / or 12 micron pixel size Resolution 1280 x 1024 Optics Telecentric lens (eliminates distortion for more accurate and repeatable measurement and inspection results) Facilities Power 100-240 VAC, 50/60 Hz, 10 amps Footprint 34” x 39” x 17” (864mm x 991mm x 432mm) Weight 170 lbs (77 kg) Payment Pay with your credit card through PayPal. All in state residents within our state will be charged state and/or local sales tax at the time of checkout. Payment must be received within 7 days of the close of auction. If payment isn't received within 7 days, the auction will be revoked and a Non-Paying Bidder alert will be filed. Shipping Packages are usually shipped within 48 hours of payment receipt (excluding Saturday/Sunday) Shipping costs for all orders can be determined by the shipping calculator in this auction. All orders are shipped via UPS, FedEx, DHL, or USPS. International buyers, please be aware that you may incur a brokerage and/or customs fee upon delivery. Winning bidder is responsible for shipping charges. We reserve the right to choose carrier based on shipping method selected at time of payment. Combined shipping is done at the sellers discretion. If you purchase more than one item from us, they may arrive in separate packages. PFI of Florida: 607 Savage ct longwood, FL 32750 Telephone: 4078224499 Returns All items are sold as-is. We accept returns only if the item was not as described in the auction. Buyer must return the item exactly as received within 7 days and will be responsible for all additional shipping charges. We do our best to present accurate, detailed information about every item we sell. If you have any questions, please contact us before placing your bid. About Us PFI is a Florida Corporation who has been doing business since 1981 we are available 5 days a week from 8-4 our main phone number is 407-822-4499 Legal PFI of Florida has used its best efforts to inspect the item(s) for sale and create descriptions and furnish photographs that fairly and adequately depict the type, condition and image of the goods at the time of sale. PFI of Florida makes no express or implied warranties or representations regarding the condition or suitability of the goods and to the extent allowed by law, specifically disclaims any express or implied warranties, including but not limited to any warranty of merchantability or fitness for purpose. Any warranty expressed in the listing itself superceeds these terms. PFI of Florida reserves the right to cancel bids on any item due to feedback. Seller Name: pcbassyequip Add to Saved Sellers Powered By SellerVantage, an Inventory and Consignment Software Solution
