Zaber Tech 50 Mm Travel Motorized Linear Stage T-lsm050a Nib

US $1,500.00

Crow Agency, Montana, United States
Feb 15th

Open on mobile:
QR code

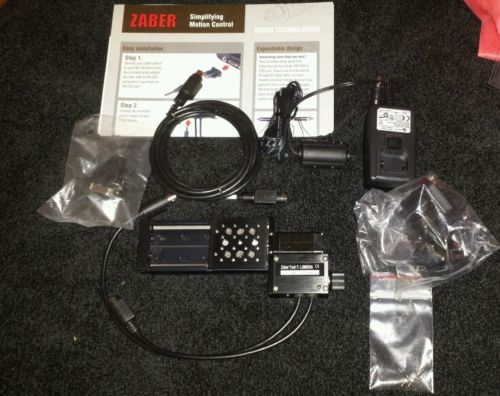

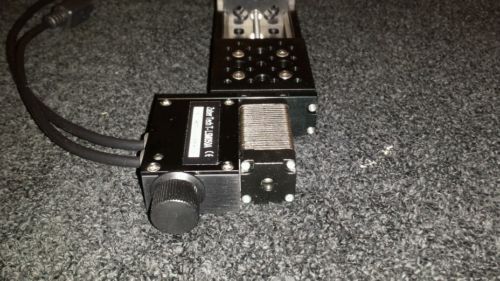

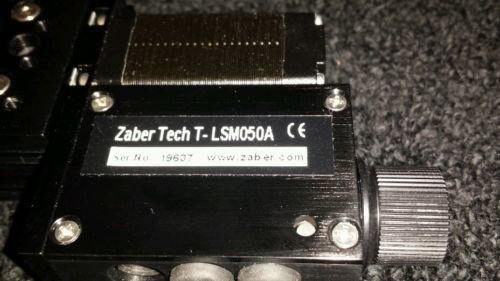

Up for auction is a brand new Zaber tech 50 mm travel Motorized Linear Stage with Built-in Controllers T-LSM050A. This comes with a switching power supply and RS-232 connections. Please ask any questions before bidding, this is a really nice unit please see video below. Zaber's T-LSM series devices are computer-controlled motorized linear stages with high thrust and speed capabilities and a very compact size. They are stand-alone units requiring only a standard 15V power supply. A potentiometer knob at the end of the unit permits smooth manual control; turn it fully to get maximum speed. These slides connect to the RS-232 port of any computer and can be daisy-chained with up to 254 units per chain. They can also be chained with any other T-Series products. Convenient 6-pin mini din cables on the unit allow for direct interconnection between units in close proximity. For longer distances, a standard cable extension can be used. At only 21 mm high, these miniature stages are excellent for applications where a small profile is required. The T-LSM's innovative design allows speeds up to 29 mm/s and loads up to 10 kg. Like all Zaber's products, the T-LSM series is designed to be 'plug and play' and very easy to set-up and operate. If you are considering a multi-axis system, in the XY configuration these stages make excellent microscope stages. Adding a T-JOY3 Joystick Controller allows manual control of both x and y or xyz axes from a single interface as well as allowing microscope stage positions to be saved and recalled at the touch of a button. Specification (click for definition) Value Alternate Unit Microstep Size (Default Resolution) 0.047625 µm Integrated Controller Yes Travel Range 50.8 mm 2.000 " Accuracy (unidirectional) 15 µm 0.000591 " Repeatability < 1 µm < 0.000039 " Backlash < 3 µm < 0.000118 " Maximum Speed 7 mm/s 0.276 "/s Minimum Speed 0.00022 mm/s 0.00001 "/s Speed Resolution 0.00022 mm/s 0.00001 "/s Encoder Type None Peak Thrust 55 N 12.3 lb Maximum Continuous Thrust 25 N 5.6 lb Communication Interface RS-232 Communication Protocol Zaber Binary Maximum Centered Load 100 N 22.4 lb Maximum Cantilever Load 300 N-cm 424.8 oz-in Guide Type Needle roller bearing Vertical Runout < 8 µm < 0.000315 " Horizontal Runout < 12 µm < 0.000472 " Pitch 0.02 degrees 0.349 mrad Roll 0.005 degrees 0.087 mrad Yaw 0.02 degrees 0.349 mrad Maximum Current Draw 500 mA Power Supply 12-16 VDC Power Plug 2.1 mm center positive Linear Motion Per Motor Rev 0.6096 mm 0.024 " Motor Steps Per Rev 200 Motor Type Stepper (2 phase) Inductance 1.5 mH Default Resolution 1/64 of a step Data Cable Connection Minidin 6 pin M/F Mechanical Drive System Precision lead screw Limit or Home Sensing Magnetic hall sensor Manual Control Yes Axes of Motion 1 LED Indicators Yes, Bi-Colour Mounting Interface M3 and M6 threaded holes and M4 threaded center hole Vacuum Compatible No Operating Temperature Range 0 to 50 degrees C Stage Parallelism < 25 µm < 0.000984 " RoHS Compliant Yes CE Compliant Yes Weight 0.32 kg

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Zaber Tech
MPN	T-LSM050A
Model	T-LSM050A
