1axis Nema 34 Stepper Motor Dual Shaft 1600oz-in+driver 7.8a80v 85bygh450c-012b

US $150.00

Changzhou,Jiangsu, China
Jun 9th

Open on mobile:
QR code

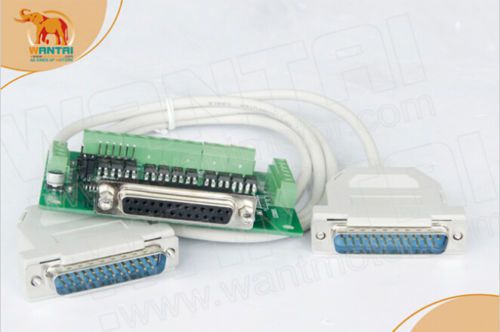

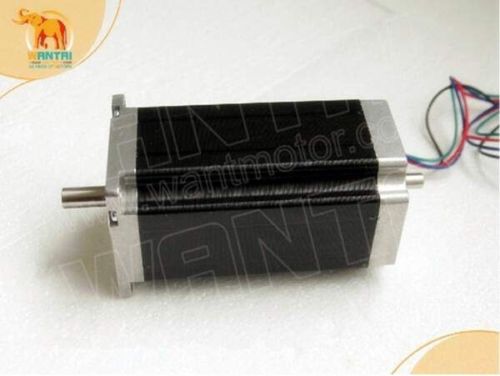

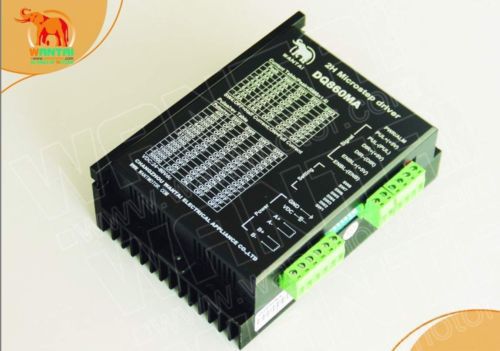

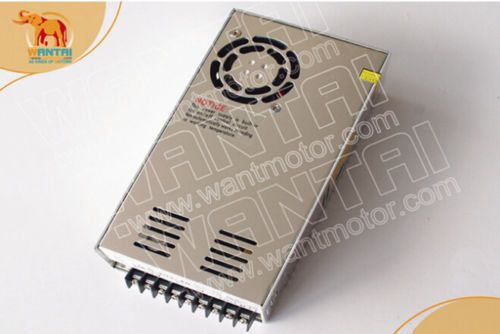

Welcome to my store! Hope you have a happy shopping! Great News from Wantaimotor! Ship from USA warehouse to USA,Germany wearhouse to EU Customers,after payment,within 3-5 days for receiving goods. No taxes from customs, nodamage, better service, please don't hesitate! This Item includes: 1 pc Stepper Motor 85BYGH450C-012B DUAL SHAFT 3.5A 11.5N.m(1600oz-in) 151mm 1 pc Stepper Motor driver DQ860MA 7.8A 80V 256microsteps 1 pc Power Supply:350W 60V 1 pc Breakout Board&Cable For free 1 Stepper Motor:85BYGH450C-012B DUAL SHAFT Technical Specifications Part No.: WT85STH151-3004B (85BYGH450C-012B) Frame Size: NEMA34 Step Angle: 1.8 degree Voltage: 5.7V Current: 3.5A/phase Resistance: 1.9 Ohm/phase Inductance: 22 mH/phase Holding torque: 11.2N.m 1600oz-in Rotor inertia: 3600g-cm2 Number of wire leads: 4 Weight: 5 kg Length: 151mm 2 Stepper Motor Driver:DQ860MA Introduction: DQ860MA is a type of two-phase hybrid stepping motor driver, the drive voltage of it is from 24VDC to 80VDC. It is designed for use with 2-phase hybrid stepper motor of all kinds with 57mm to 110mm outside diameter and less than 7.8A phase current. This circuit that it adopts is similar to the circuit of servo control which enables the motor run smoothly almost without noise and vibration. Holding torque when DQ860MA runs under high speed, is also significantly higher than the other two-phase driver, what’s more, the positioning accuracy is also higher. It is widely used in middle and big size numerical control devices such as curving machine, CNC machine, and computer embroider machine, packing machines and so on. Features: High performance, low price Average current control, 2-phase sinusoidal output current drive Supply voltage from 24VDC to 80VDC Opto-isolated signal I/O Overvoltage, under voltage, overcurrent, phase short circuit protection 14 channels subdivision and automatic idle-current reduction 8 channels output phase current setting Offline command input terminal Motor torque is related to speed, but not related to step/revolution High start speed High holding torque under high speed Electrical specification: Input voltage 24-80VDC Input current < 6A Output current 2.8A~7.8A Consumption Consumption:80W; Internal Insurance:10A Temperature Working Temperature -10~45°C; Stocking temperature -40°C~70°C Humidity No condensation, no water droplets gas Prohibition of combustible gases and conductive dust weight 500G 3. Power Supply:350W 60V Index Type S-350-5 S-350-7.5 S-350-12 S-350-15 S-350-24 S-350-27 S-350-48 DC Voltage 5V 7.5V 12V 15V 24V 27V 48V Voltage Tolerance ± 2% ± 2% ± 1% ± 1% ± 1% ± 1% ± 1% Rated Current 50A 40A 29A 23A 14.6A 13A 7.3A Current Range 0-50A 0-40A 0-29A 0-23A 0-14.6A 0-13A 0-7.3A Ripple&Noise(Max.) 150mVp-p 150mVp-p 150mVp-p 150mVp-p 150mVp-p 200mVp-p 240mVp-p Line Regulation ± 0.5% ± 0.5% ± 0.5% ± 0.5% ± 0.5% ± 0.5% ± 0.5% Load Regulation ± 1% ± 1% ± 0.5% ± 0.5% ± 0.5% ± 0.5% ± 0.5% Rated Power 250W 300W 348W 348W 350.4W 351W 350.4W Rated Power 74% 79% 74% 78% 83% 83% 84% Voltage Adjust Range 4.5-5.6V 6-9V 10-13.2V 13.5-18V 20-26.4V 26-32V 41-56V Voltage Range 90~132VAC/180-264VAC 47~63Hz;255~370VDC AC Current 4.5A/115V 2.5A/230V Inrush Current(Max.) 25A/115V 50A/230V Leakage Current <3.5mA/240VAC Overload Protection 105-145% TYPE:OUTPUT CUTOUT AC Restart Over-voltage Protection 115%-135% Over-temperature Protection RTH3>=50°C FAN ON=80°C OUTPUT CUTOUT(5-15V) RTH3>=60°C FAN ON=85°C OUTPUT CUTOUT(24-48V) Temp.Coefficient ± 0.03%/°C(0~50°C) Setup.Rise,Hold Time 200ms,100ms,20ms Vibration 10~500Hz,2G 10min,/11cycle,60min,each axes Withstand Voltage I/P-O/P:3KVACI/P-FG:1.5KVACI/P-FG:0.5KVAC Isolated Resistor I/P-O/P,I/P-FG,I/P-FG:500VDC/100M? Working Temp.Humidity -10°C~+50°C,20%~90RH Storage Temp.Humidity -20°C~+85°C,10%~95%RH Dimension 215?A115?A50mm Weight 0.9kg Safety Standards UL1950 1.All parameters NOT specially mentioned are measured at 230VAC input ,rated load and 25 of ambient temperature. 2.Tolerance:includes set up tolerance,line regulation and load regulation 3.Ripple&noise are measured at 20MHZ of bandwidth by using a 12 twisted pair-wire terminated with a 0.1uf&47uf parallel capacitor. 4 Breakout Board: Description Built in DB25 male connector. DB25 output pin:P1,P2,P3,P4,P5,P6,P7,P8,P9,P14,P16,P17 DB25 input pin:P10,P11,P12,P13,P15. DB25 GND pin:P18-P25. Power supply:+5VDC Built in C-class optical-coupler. High quality with surface-mount Tech. It can connection 6 drivers and control 6 motors in the same time. Built in DB25 male connector. DB25 output pin:P1,P2,P3,P4,P5,P6,P7,P8,P9,P14,P16,P17 DB25 input pin:P10,P11,P12,P13,P15. DB25 GND pin:P18-P25. Power voltage is 5VDC and support with MACH3 ect.software Built in optical-coupler. You can set these pins according to software as follows: Output pins:P1,P2,P3,P4,P5,P6,P7,P8,P9,P14,P16,P17 P2-X axis Pulse,P3-X axis Direction; P4-Y axis Pulse,P5-Y axis Direction; P6-Z axis Pulse,P7-Z axis Direction; P8-A axis Pulse,P9-A axis Direction; P14-B axis Pulse,P1-B axis Direction; P16-C axis Pulse,P17-C axis Direction; Input pins:P10,P11,P12,P13,P15 Set them for Emergency Stop and X Y Z Limit switch About us ? We are specializing in Stepping motor, Brushless DC Motor, Stepping Geared Motor, Power Supply, Control Board and Control System. ? Our customers all over the world, warmly welcome new and old customers to patronize. Honor ? CE and RoHS approved, also obtain ISO9001:2000 certification. ? Provide professional OEM service, manufacture high-quality products as customers' design. Payment ? We accept paypal, credit card, bank account, western union etc. ? Payment must be made within 7 calendar days of auction end time. ? Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer responsibility. Shipping ? We ship by DHL,FEDEX,UPS,TNE,EMA or China Post Airmail/Parcel. ? There is online tracking number after the item shipped. ? Usually it takes 3-10 business days to most countries like US, Canada, Mexico, UK, Australia and Europe. Problem and Feedback ? Please give us the opportunity to resolve any problem when you have, we will try our best to help you. ? Your satisfaction is of the most importance for us, so please contact us before you want to leave a negative feedback, thanks very much in advance! Refund ? If you are not satisfied with the parcel, please tell us the detail reason and provide the photos. ? Any reason required for all refund, item must be in it’s original condition and no physical damage. ? Buyer responsible for all shipping cost. Contact me ? E-mail: ting.ren@hotmail.com ? Mobile:0086-13776852921 ? Skype: renting5578 Note: We are professional stepper motor supplier and manufacturer,and we manufacture products according to customer's requirement. We ship worldwide!

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Wantai Motor
MPN	www.wantmotor.com
