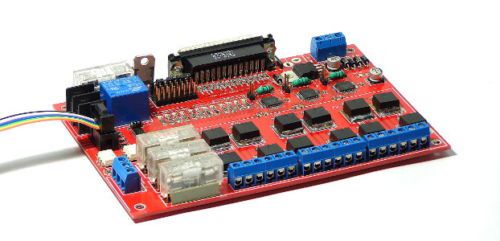

New 3 axis CNC Unipolar Stepper Driver Board 24V 6A, US $74.99 – Picture 0

New 3 axis CNC Unipolar Stepper Driver Board 24V 6A, US $74.99 – Picture 1

New 3 Axis Cnc Unipolar Stepper Driver Board 24v 6a

US $74.99

default, San Jose, Costa Rica
Jun 9th

Open on mobile:
QR code

ChrystianJ CJ-C14 Driver Board for Unipolar Stepper Motor New 3 axis 24V 6A On Stock and Ready to Ship! Description You are bidding on a Brand New ChrystianJ CJ-C14 Driver Board Are you a hobbyist CNC person? Do you want to make a 3 axis cnc milling machine and need a robust stepper driver board? or Do you need a 3 axis board for your mini-lathe cnc conversion project? This is what you need: A ChrystianJ CJ-C14 Driver Board for 3 axis. This board was designed using high technology surface mount components for improved energy efficiency and high integration on small board space (you will have 3 single unipolar stepper drivers integrated on one 6”x4” board) Picture: Surface Mount Components This board can be used with any software or hardware capable to generate step and direction signals, also this board accept generic step and direction signals, 5volts TTL compatible (like signals from lpt parallel port or external controller board) Do you need a driver board for low torque fast stepper motor? Or What about if you need a stepper driver for a slow high torque power hungry stepper motor? No problem at all. This board was designed for fast stepping operation. With 24V and a proper current limit resistor a stepper motor can reach more than 3000 RPM with not load. In our Lab, a NEMA23 (156 oz-in) can reach more than 3000RPM with not load. But that's not all, The CJ-C14 Board has been designed for those power hungry stepper motors. It can handle up to 6 Ampere per phase using high efficiency power MOSFET transistors. Here are some CJ-C14 Features: Features Summary Designed For Unipolar Stepper Motors (for motors with 5, 6 or 8 wires) Simultaneous Axis 3 Axis Build-in with dedicated processor for each axis Status and Power Indication One led for power indicator and four status leds on each axis Independent Power Supply input for Circuitry processing Supports 9Vdc to 12Vdc, Polarity Protected Independent Power Supply input for stepper motor power Supports Up To 24Vdcand 6 Ampere per axis Step Sequence Full or Half Stepping High Speed Step Frequency Up to 35 000 steps / sec Data Signals (step/dir/enable) 5V TTL Compatible Compact Design Small 6x4 inches, 3 axis board with Surface Mount Components Connectors Easy EuroStyle PCB Connectors Warranty One Year Warranty AC Relay output Can handle 5A AC load (for example for spindle on/off controll) Limit switches signal inputs You can use your limit switches to have a safe machine operation E-Stop Input Immediately stops the CNC machine when E-Stop button is pressed. LPT port connector You can use your standard PC LPT port to drive your stepper motors Product's Manual Please Contact Me: I will be happy to send an email with the pdf document. Package Contents ChrystianJ CJ-C14 Driver Board x 1 Detailed Installation Manual x 1 Payment and shipping policy By bidding on this item you agree to the following rules: Payment within 7 natural days via PayPal only. If payment is cleared, item will be shipped by Registered Priority International Airmail direct from Costa Rica. Delivery time is 4 to 8 weeks. For fast delivery, EMS service can be used for Expedited Shipping. USA buyers can select this shipping method at checkout. For customers outside USA, please contact me first for an expedited shipping quote. Non-payment transactions will be reported to eBay after 7 days. Costa Rican customers have to pay 13% tax I will ship according to your PayPal registered address. Please ask first if you intent to ship to an address that is different from the one you registered at PayPal. Your 100% satisfaction is my top priority, do not hesitate to contact me if you have any questions. If you have any problem with your purchase, please email me before leaving feedback. International Buyers – Please Note: Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer’s responsibility. Please check with your country’s customs office to determine what these additional costs will be prior to bidding/buying. Warranty Warranty starts the day and time you sign for your item, recorded by the Post Office on delivery and handed to me. One year limited warranty against defects of materials Your ChrystianJ product is warranted to be free from defects in materials. Should this equipment require service, ChrystianJ will render this service at no charge for the period of One Year from the date of purchase to the original purchaser. This warranty shall not apply if the equipment has been modified, abused or tampered with in any way, accidentally or otherwise. It does not cover repair or replacement of parts damaged as a result of normal wear and tear; or if the product has been previously repaired by any other repair organization without the prior permission of the distributor. Any repairs or adjustments required after expiration of the warranty period, or any products that have been modified, abused or tampered with, are subject to our standard repair charges. In the event that an adjustment or repairs is necessary during the warranty period, all postage, insurance and transportation charges (such as freight and fare to travel to and from the factory) are at the expense of the owner. All warranties implied by law shall be for a period of One Year from the date of purchase. The above warranty is additional to customers' statutory rights. No warranties, express or implied, including the warranty of merchantability or the warranty of fitness for a particular purpose are made by and distributor or dealer of the equipment herein warranted. Such dealer or distributor shall in no event be liable for the payment of any direct or consequential damages, or inconveniences caused by the failure or malfunction of this equipment. This warranty is not transferable. Any ChrystianJ product accessories are not covered under warranty. ChrystianJ shall not be liable for any consequential, incidental or accidental damages, such as ruined stock material, milling tools, drills, vises, chucks or any other equipment / product. Refunds and Returns Shipping & handling are not refundable for any reason. If your package does not arrive after 8 weeks of the shipped date, I will refund 100% of your store total but not the shipping fee. Refunding of returned items will not be done until received and checked for a valid reason. If the returned item does not qualify for warranty you will not be refunded. Return postage is standard rate. It is fundamental and necessary that the buyer notify me before returning the item. Items returned for warranty of defects in materials or workmanship will be repaired or replaced at factory's discretion. However, if the warranty claim is not for a valid reason our standard labor rate still apply. Return postage is standard rate.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	ChrystianJ
MPN	CJ-C14
