1pcs Dc/dc 5v 3a Voltage Regulator Step-down 6.5v-23v, Repl.7805,lm7805,lm2596

US $7.00

127018, Moscow, Russian Federation
Jun 9th

Open on mobile:
QR code

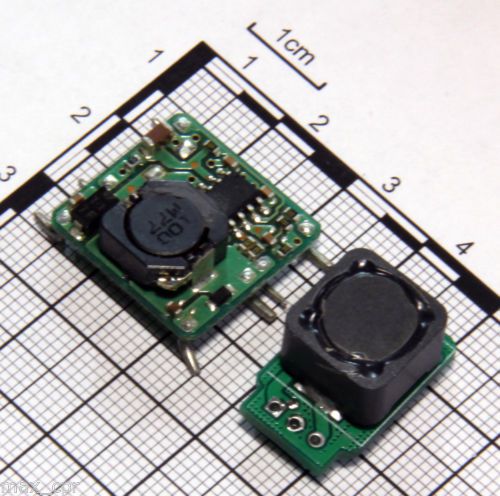

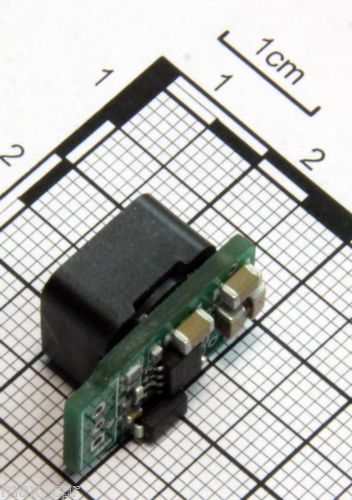

Description: It's a very efficient step-down power voltage regulator (converter) module. Input voltage - 6.5-23V, output - 5V, current - 2.2A In most cases it can replace widely used in microcontrollers, arduino projects, etc. LM7805 or similar regulators. It has fully compatible with LM7805 footprint (TO-220) and smallest size. The reasons to replace are: much more efficiency, much less heating, more current (2..3A), wide input voltage range. F.e. you can use your existing arduino (or other 5V microcontroller) project in car (12V) application almost with no changes - this item connector holes step is to-220 compatible. If you'll try to use LM7805 to convert 12V to 5V you'll loose almost half of energy on heating this LM7805. And it will be really very hot even with radiator. You can use this item to build a high quality high current USB car charger - with it's small size you can place it almost anywhere in car and connect it to outer USB port connectors (not included). The rated current of this item is enough to charge almost any device in your car. You can see on photo one of the similar (square, almost twice bigger) item - please keep in mind that so thin inductor CAN NOT be used for large currents. Inductor wich was used in item offers if rated for at least 3.5A. You can visually compare this sizes on photos (two last photos after scheme). If you need a thinner item - you can just replace inductor by yourself or write me when ordering. This item has not soldered connectors because it can be used in different cases - with straight or right angled connectors. By default it ships with right-angled 3-pin connector (see photo) Details: No-load current: about 18mA Output Current: continuous 2.2A, peak output 4A Size: 19.5 x 12.5 x 11.3 mm. Thickness (11.3mm) can be reduced by changing inductor to other one with less current (<3A). Output voltage: 5V Input voltage: 6.5-23V typical, 26V maximum Internal Frequency: Fixed 340kHz Protection: Cycle-by-cycle over current protection Package: 1 pcs PWR5 module 1 pcs 3-pin right angled connector

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	eRain
MPN	Does Not Apply
Model	ERNPWR5
Country/Region of Manufacture	Russian Federation
