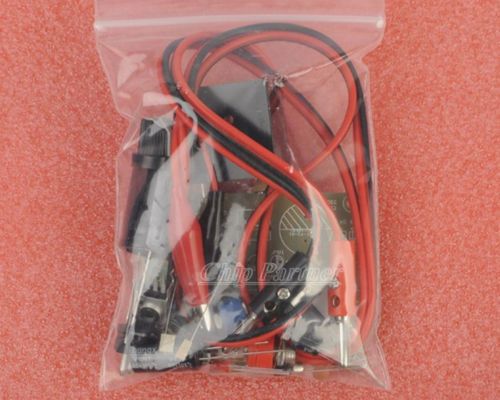

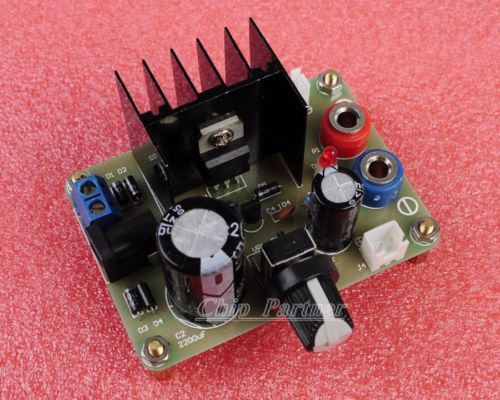

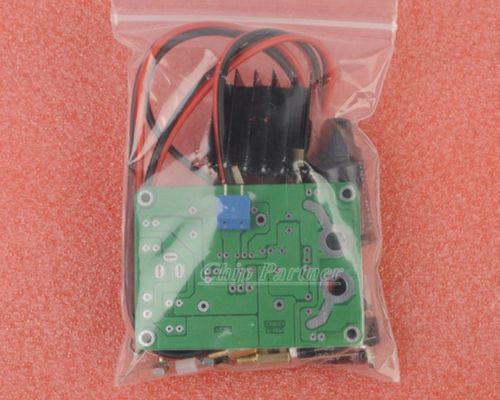

LM317 Adjustable Regulated Power Supply Suite DIY Kits, US $110 – Picture 0

LM317 Adjustable Regulated Power Supply Suite DIY Kits, US $110 – Picture 1

LM317 Adjustable Regulated Power Supply Suite DIY Kits, US $110 – Picture 2

LM317 Adjustable Regulated Power Supply Suite DIY Kits, US $110 – Picture 3

Lm317 Adjustable Regulated Power Supply Suite Diy Kits

US $110

shenzhen, China
Jun 9th

Open on mobile:
QR code

Product Name:LM317 Adjustable Regulated Power Supply Suite DIY Kits Description Package Name: LM317T adjustable power supply Kit Model: POW-T PCB size: 69 * 50mm Electrical parameters: DC input:5-35V AC input:6-25V DC output:1.3-30V Maximum current: 1A Minimum differential pressure: 3V Kit features: 1. Input and output interfaces complete Two input interface, to three output interface (main output, two auxiliary outputs), the main output interface connected to the banana plug clip line, more convenient to use. 2. Increase a transistor for load protection LM317T adjustable power supply, often due to poor contact so that the output of the potentiometer voltage rises and burned the load transistor to be made in this case to protect the load. 3. the heatsink dimensions of 30 * 25 * 30mm, LM317T provide sufficient cooling area. 4. PCB four corners with studs plus nut fixing, making installation easier, place more stable. 5. new original device + PCB, quality the military grade A material sheet production worthy of trust. Plate thickness 1.2MM, Dimensions 69 * 50mm. Pad HASL process welding easier! Features With excellent connectors: two inputs and three outputs (a main and two auxiliary outputs). It's more convenient to operate when the main output is connected to the Banana jack. Adding a transistor to support load protection. Even the regulated power supply can be adjusted by LM317T, the load will be burned with the poor contact of potentiometer. Then a transistor can play an important role to support the load protection at this time. The heat sink, with the dimensions of 30*25*30mm, provides LM317T with enough area of dissipation. Four corners of PCB are fixed with copper cylinder and nuts. It makes the installation more convenient and the placement more stable. Brand new original suite and A level PCB with the thickness of 1.2mm. Pad with solder coating makes the welding much more easier. Specification Suite Type?POW-T PCB Dimensions?69*50mm DC IN ?5?35V AC Input?6?25V DC COUT?1.3?30V Max. Current?1A Diagram List of Components For more quantity, please contact us 1) We accept PayPal payment ONLY. inkfrog terapeak inkFrog Analytics

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Unbranded
Type	Does not apply
Model	LM317
Color	Does not apply
MPN	Does not apply
Material	Does not apply
Country/Region of Manufacture	China
UPC	Does not apply
