25 Pcs/lot Ic Pic16f630-i/sl, 14-pin, Flash-based 8-bit Cmos Microcontroller

US $23.00

Shenzhen, China
Jan 29th

Open on mobile:
QR code

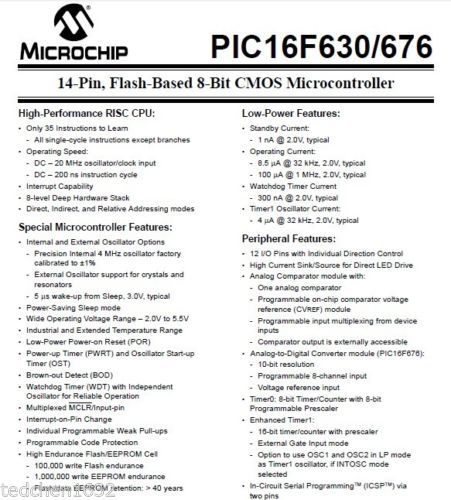

High-Performance RISC CPU: • Only 35 Instructions to Learn - All single-cycle instructions except branches • Operating Speed: - DC – 20 MHz oscillator/clock input - DC – 200 ns instruction cycle • Interrupt Capability • 8-level Deep Hardware Stack • Direct, Indirect, and Relative Addressing modes Special Microcontroller Features: • Internal and External Oscillator Options - Precision Internal 4 MHz oscillator factory calibrated to ±1% - External Oscillator support for crystals and resonators - 5?s wake-up from Sleep, 3.0V, typical • Power-Saving Sleep mode • Wide Operating Voltage Range – 2.0V to 5.5V • Industrial and Extended Temperature Range • Low-Power Power-on Reset (POR) • Power-up Timer (PWRT) and Oscillator Start-up Timer (OST) • Brown-out Detect (BOD) • Watchdog Timer (WDT) with Independent Oscillator for Reliable Operation • Multiplexed MCLR/Input-pin • Interrupt-on-Pin Change • Individual Programmable Weak Pull-ups • Programmable Code Protection • High Endurance Flash/EEPROM Cell - 100,000 write Flash endurance - 1,000,000 write EEPROM endurance - Flash/data EEPROM retention: > 40 years Low-Power Features: • Standby Current: - 1 nA @ 2.0V, typical • Operating Current: - 8.5?A @ 32 kHz, 2.0V, typical - 100?A @ 1 MHz, 2.0V, typical • Watchdog Timer Current - 300 nA @ 2.0V, typical • Timer1 Oscillator Current: - 4?A @ 32 kHz, 2.0V, typical Peripheral Features: • 12 I/O Pins with Individual Direction Control • High Current Sink/Source for Direct LED Drive • Analog Comparator module with: - One analog comparator - Programmable on-chip comparator voltage reference (CVREF) module - Programmable input multiplexing from device inputs - Comparator output is externally accessible • Analog-to-Digital Converter module (PIC16F676): - 10-bit resolution - Programmable 8-channel input - Voltage reference input • Timer0: 8-bit Timer/Counter with 8-bit Programmable Prescaler • Enhanced Timer1: - 16-bit timer/counter with prescaler - External Gate Input mode - Option to use OSC1 and OSC2 in LP mode as Timer1 oscillator, if INTOSC mode selected • In-Circuit Serial ProgrammingTM (ICSPTM) via two pins

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Microchip
IC Package	SOIC14_39MM
Model	GoJGo.com-10375
Category	MCU
MPN	PIC16F630-I/SL
