50pcs/lot Ic Pic16f1937-i/pt, 8-bit Cmos Microcontrollers With Lcd Driver

US $68.00

Shenzhen, China
Jan 29th

Open on mobile:
QR code

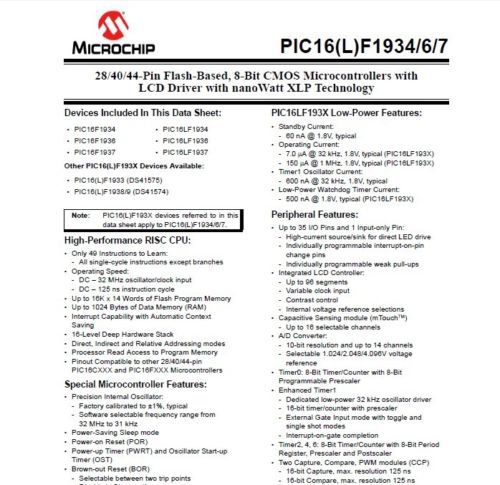

50 pcs/lot IC PIC16F1937-I/PT Brand new Package: TQFP44_10X10X08P ------------------------------------- 28/40/44-Pin Flash-Based, 8-Bit CMOS Microcontrollers with LCD Driver with nanoWatt XLP Technology Devices Included In This Data Sheet: Other PIC16(L)F193X Devices Available: High-Performance RISC CPU: • Only 49 Instructions to Learn: - All single-cycle instructions except branches • Operating Speed: - DC – 32 MHz oscillator/clock input - DC – 125 ns instruction cycle • Up to 16K x 14 Words of Flash Program Memory • Up to 1024 Bytes of Data Memory (RAM) • Interrupt Capability with Automatic Context Saving • 16-Level Deep Hardware Stack • Direct, Indirect and Relative Addressing modes • Processor Read Access to Program Memory • Pinout Compatible to other 28/40/44-pin PIC16CXXX and PIC16FXXX Microcontrollers Special Microcontroller Features: • Precision Internal Oscillator: - Factory calibrated to ±1%, typical - Software selectable frequency range from 32 MHz to 31 kHz • Power-Saving Sleep mode • Power-on Reset (POR) • Power-up Timer (PWRT) and Oscillator Start-up Timer (OST) • Brown-out Reset (BOR) - Selectable between two trip points - Disable in Sleep option • Multiplexed Master Clear with Pull-up/Input Pin • Programmable Code Protection • High Endurance Flash/EEPROM cell: - 100,000 write Flash endurance - 1,000,000 write EEPROM endurance - Flash/Data EEPROM retention: > 40 years • Wide Operating Voltage Range: - 1.8V-5.5V (PIC16F193X) - 1.8V-3.6V (PIC16LF193X) PIC16LF193X Low-Power Features: • Standby Current: - 60 nA @ 1.8V, typical • Operating Current: - 7.0?A @ 32 kHz, 1.8V, typical (PIC16LF193X) - 150?A @ 1 MHz, 1.8V, typical (PIC16LF193X) • Timer1 Oscillator Current: - 600 nA @ 32 kHz, 1.8V, typical • Low-Power Watchdog Timer Current: - 500 nA @ 1.8V, typical (PIC16LF193X) Peripheral Features: • Up to 35 I/O Pins and 1 Input-only Pin: - High-current source/sink for direct LED drive - Individually programmable interrupt-on-pin change pins - Individually programmable weak pull-ups • Integrated LCD Controller: - Up to 96 segments - Variable clock input - Contrast control - Internal voltage reference selections • Capacitive Sensing module (mTouchTM) - Up to 16 selectable channels • A/D Converter: - 10-bit resolution and up to 14 channels - Selectable 1.024/2.048/4.096V voltage reference • Timer0: 8-Bit Timer/Counter with 8-Bit Programmable Prescaler • Enhanced Timer1 - Dedicated low-power 32 kHz oscillator driver - 16-bit timer/counter with prescaler - External Gate Input mode with toggle and single shot modes - Interrupt-on-gate completion • Timer2, 4, 6: 8-Bit Timer/Counter with 8-Bit Period Register, Prescaler and Postscaler • Two Capture, Compare, PWM modules (CCP) - 16-bit Capture, max. resolution 125 ns - 16-bit Compare, max. resolution 125 ns - 10-bit PWM, max. frequency 31.25 kHz • Three Enhanced Capture, Compare, PWM modules (ECCP) - 3 PWM time-base options - Auto-shutdown and auto-restart - PWM steering - Programmable dead-band delay Peripheral Features (Continued): • Master Synchronous Serial Port (MSSP) with SPI and I2CTM with: - 7-bit address masking - SMBus/PMBusTM compatibility - Auto-wake-up on start • Enhanced Universal Synchronous Asynchronous Receiver Transmitter (EUSART) - RS-232, RS-485 and LIN compatible - Auto-Baud Detect • SR Latch (555 Timer): - Multiple Set/Reset input options - Emulates 555 Timer applications • 2 Comparators: - Rail-to-rail inputs/outputs - Power mode control - Software enable hysteresis • Voltage Reference module: - Fixed Voltage Reference (FVR) with 1.024V, 2.048V and 4.096V output levels - 5-bit rail-to-rail resistive DAC with positive and negative reference selection

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Microchip
MPN	PIC16F1937-I/PT
Model	GoJGo.com-10130
