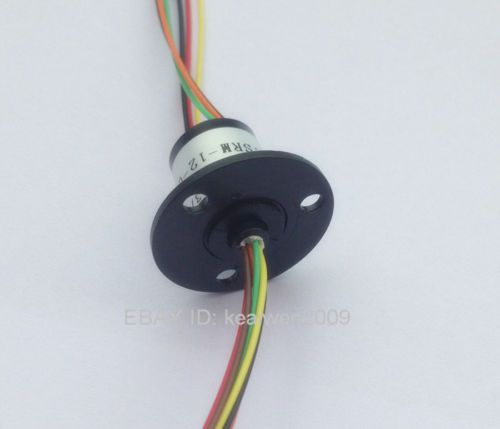

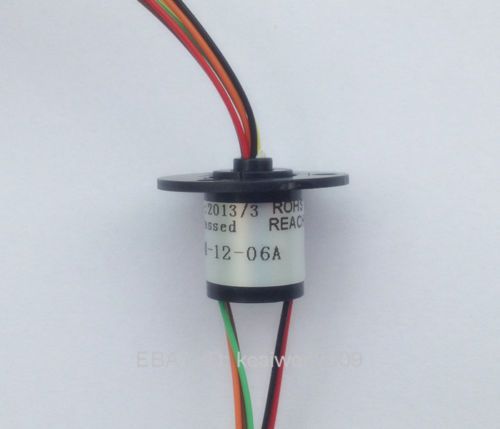

300Rpm 12.5mm 6 Wires 6 Conductors Capsule Slip Ring 240V AC F Monitor Robotic, US $130 – Picture 0

300Rpm 12.5mm 6 Wires 6 Conductors Capsule Slip Ring 240V AC F Monitor Robotic, US $130 – Picture 1

300Rpm 12.5mm 6 Wires 6 Conductors Capsule Slip Ring 240V AC F Monitor Robotic, US $130 – Picture 2

300Rpm 12.5mm 6 Wires 6 Conductors Capsule Slip Ring 240V AC F Monitor Robotic, US $130 – Picture 3

300Rpm 12.5mm 6 Wires 6 Conductors Capsule Slip Ring 240V AC F Monitor Robotic, US $130 – Picture 4

300rpm 12.5mm 6 Wires 6 Conductors Capsule Slip Ring 240v Ac F Monitor Robotic

US $130

Hong Kong, Hong Kong
Jan 29th

Open on mobile:
QR code

300Rpm 12.5mm 6 Wires 6 Conductors Capsule Slip Ring 240V AC F Monitor Robotic SKU:KY000103 ITEM INFO Feature:The Capsule slip ring is a standard, off-the-shelf series product, that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplified electrical connections.Using a 90 degree V-groove ring design for each ring, provides smoother running, lower torque low contact wear rates than competitive slip ring. provides 6, circuit configurations. Used advanced technology to design,lower consumtion. Compact design allows tremendous flexibility in dealing with system size restrictions: 12.5mm outside diameter, and15 mm length. Can combine signal and power in same slip ring,completely satisfy 360 degrees of rotation Precision module provides long time maintenance –free operation(no cleaning or lubrication required); Specification:Voltage: 240 VAC/DC Current: 2A per circuits Speed: 0-300 Rpm Circuits: 6 Housing Material: Engineering Plastics Work Humidity: 60%RH or higher Work Temp.: -40℃~+80℃ Contact material: Gold plated ring-Gold plated brush Insulation resistance: 1000 MΩ @ 500 VDC Lead size: 225mm 30# AWG Teflon wire Dielectric strength: Between each circuit and all other circuits , ≥ 500 VAC @ 50Hz Electrical noise: ≤10mΩ Work life: Depending on speed and working environment, ≥50,000,000 runs ref Outside dia: 12.5mm Flange dia.: 24mm Length: 15mm CE, ROHS passed Applications:CCTV Monitoring System Electrical test equipment Medical equipment Robotics Contains:1* Capsule slip ring more product: isn't the item suitable for you? would you please check "PRODUCT". there are more other products on sale. welcome to purchase. CONSIGNMENT: Please read our SHIPPING terms and condition,since we will be sending items from China to our Coverage Area,we try to offer as many shipping methods as possible to suit every customer's preferences * People from Other countries not listed below coverage area please E-MAIL us for quote BEFORE Payment Cost Add Services Shipping Estimated Delivery free free Economy Int'l Shipping NON Registered Post 14-25 business days $3 free Standard Int'l Shipping/ePacket Registered Post 14-25 business days $28 free Expedited Int'l Shipping DHL/TNT/UPS/EMS 5-7 business days NON Registered PostCOVERAGE AREA I: No Tracking Number.Please allow up to 48 hours preparation for shipping, although usually item send within 24 hours after payment confirmedWe will not be responsible for item loss because of wrong or undeliverable address.You can choose registered post with tracking number provided by paying an extra $3 for the postal insurance. It is highly recommend the buyer to pay insurance (send by registered mail) if the buyer want tracking number.Taxes & Duties: Customer is responsible for all taxes & dutiesIf you do not receive your item on time, please contact us immediately for further assistance. We will be responsible for any damages or losses incurred in the shipping process. simply leaving negative/neutral feedback or open ebay case/PP dispute can't solve the problem. We will give you a satisfied result. Registered Post Shipping Cost: Would Better to pay $3 TO Upgrade ——Registered Post(Standard Int'l Shipping).COVERAGE AREA II: We hope you can choose registered post with tracking number provided by paying an extra $3 for the postal insurance. It is highly recommend the buyer to pay insurance (send by registered mail) if the buyer want tracking number. If buyer purchase more than $20 value items. We will send the parcel by using air register mail (Tracking Noxxxxxxxxx) If buyer is from US/UK/AU and choose Standard Int'l Shipping. We will send the parcel by using ePacket, it will take 7-12 working days to arrive. (Tracking Noxxxxxxxxx) Express Courier NEED URGENT? would you please choose the Expedited Int'l Shipping($28)We offers a varienty of shipping methods to meet your needs, choose the Expedited Int'l Shipping, the goods will be delivered by courier provided by TNT-Global Express ,UPS ,DHL ,FedEx after the payment has been paid in full and cleared. It is estimated to arrive in 5-7working days in normal conditions.would you please send the telephone number to us when you pay the Expedited Int'l Shipping, it is important for shipping PAYMENT: We ONLY accept Paypal.go to paypal account eCheque will be held until cleared We appreciate prompt payment and look forward to your business in the future.Unpaid item will be filed without receiveing payment in 7 days from listing ended. Warranty && Policy: This item is ALL BRAND NEW and in the original factory box and packing,All products have been checked and packaged in good condition before dispatch. 12 months Manufacture's Warranty for defective items (excluding items damaged and/or misused after receipt) Defective items Must BE reported and returned to us within the warranty period(and the original package.).we will give you a return ID.Meanwhile Please tell us what the defect is,to eliminate improper use. Return shipping fee be responsible from buyer Warranty && Policy: We maintain high standards of excellenceand strive for 100% customer satisfaction.Feedback is very important to us.We request that you contact us Immediately BEFORE you give us neutralor negativefeedback,so that we can satisfactorily address your concerns here is illustration shows how to leave me the feedback, please follow, thanks! Our store | About us | Contact | Product | Shipping | Wholesale | Warranty Back to Top ∆ Copyright©2012 keaiwen2009 All rights reservd. Engineered for professional eBay sellers!

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Model	12-06
Country of Manufacture	China
