50pcs 3mm Blue 8000mcd Leds Water Clear Round Top 2pin LED Emitting Diode, US $160 – Picture 0

50pcs 3mm Blue 8000mcd Leds Water Clear Round Top 2pin LED Emitting Diode, US $160 – Picture 1

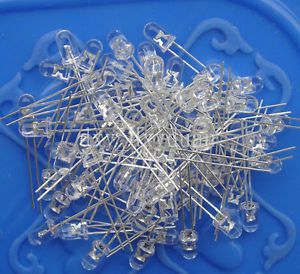

50pcs 3mm Blue 8000mcd Leds Water Clear Round Top 2pin Led Emitting Diode

US $160

Shen Zhen, China
Oct 30th

Open on mobile:
QR code

50pcs 3mm Blue 8000mcd Leds Water Clear Round Top 2pin LED Emitting Diode Click to Enlarge Click to Enlarge Description : PProduct description: Colour : Blue Size (mm) : 3mm Lens Colour : Water Clear Peak Wave Length (nm) : 460-470nm Forward Voltage (V) : 3.2 ~ 3.8 Reverse Current (uA) : <=30 Luminous Intensity Typ Iv (mcd) : Average in 6000mcd Life Rating : 100,000 Hours Viewing Angle : 20 ~ 25 Degree Absolute Maximum Ratings (Ta=25°C) Max Power Dissipation : 80mw Max Continuous Forward Current : 30mA Max Peak Forward Current : 75mA Reverse Voltage : 5~6V Lead Soldering Temperature : 240°C (<5Sec) Operating Temperature Range : -25°C ~ +85°C Preservative Temperature Range : -30°C ~ +100°C Dimension Radiation Diagram Do you want more? Size: 3mm, 5mm, 8mm, 10mm Figure: Standard Round, Flat Top, Rectangular, Tower, Square, Oval, Flangeless Color: White, Blue, Red/Blue/Flash,Green, Yellow ,Orange, Red/Blue/Green Flsh,Purple,Pink. Shipping : Items will be shipped within 1-2 days after payment received. Parcel will be sent from Hongkong ,China via airmail, shipping time will be 10-25 working days for most of the countries. We maintain a high standards of customer service! Positive Feedback is very important to us. We request that you contact us BEFORE leaving neutral or negative feedback, we will solve any of your problem in a friendly way Payment : We accept PayPal ONLY! It is agreed that the winning bidder would enter in a legally biding contract for purchasing the above item after won the auction. inkfrog terapeak
