ATLAS/CRAFTSMAN 12" Pedestal Metal Lathe 3995 & 3996 Parts Manual 0047, US $19.50 – Picture 0

ATLAS/CRAFTSMAN 12" Pedestal Metal Lathe 3995 & 3996 Parts Manual 0047, US $19.50 – Picture 1

Atlas/craftsman 12" Pedestal Metal Lathe 3995 & 3996 Parts Manual 0047

US $19.50

United States
Jan 30th

Open on mobile:
QR code

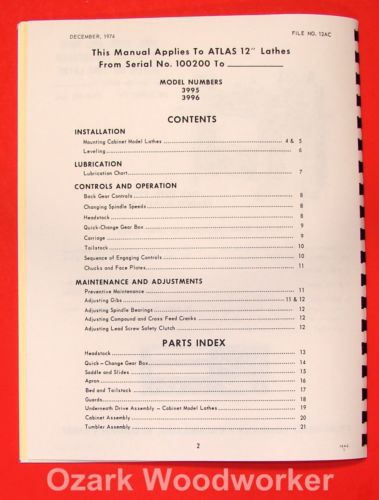

Free, Fast Shipping Every Business Day! See All Categories How-to Books Lathe Practices Series Lathe Operations Milling Operations Grinding Operations Metalworking Woodworking Brands JET Tools/Asian Atlas Press Company 12 - Inch Pedestal Lathes Model 3995 & 3996 Click for Our Complete Catalog Manual Description: Number of Pages: 21 This is a reproduction, not a photocopy, of an original Atlas 12" Pedestal Lathes Model 3995 & 3996. This was also sold under the Craftsman brand name. This manual contains information on setup, lubrication, maintenance, and controls as well as a complete parts list and exploded views and adjustments. This is one of the most complete Atlas manuals I have seen. Don't forget to check out my other items! Contents: INSTALLATION Mounting Cabinet Model Lathes..............................4,5 Leveling.....................................................6 LUBRICATION Lubrication Chart............................................7 CONTROLS AND OPERATION Back Gear Controls...........................................8 Changing Spindle Speeds......................................8 Headstock....................................................8 Quick-Change Gear Box........................................9 Carriage.....................................................9 Tail stock..................................................10 Sequence of Engaging Controls...............................10 Chucks and Face Plates......................................11 MAINTENANCE AND ADJUSTMENTS Preventive Maintenance......................................11 Adjusting Gibs...........................................11,12 Adjusting Spindle Bearings..................................12 Adjusting Compound and Cross Feed Cranks....................12 Adjusting Lead Screw Safety Clutch..........................12 PARTS INDEX Headstock...................................................13 Quick-Change Gear Box.......................................14 Saddle and Slides...........................................15 Apron.......................................................16 Bed and Tailstock...........................................17 Guards......................................................18 Underneath Drive Assembly - Cabinet Model Lathes............19 Cabinet Assembly............................................20 Tumbler Assembly........................................... 21 Picture From Inside:
