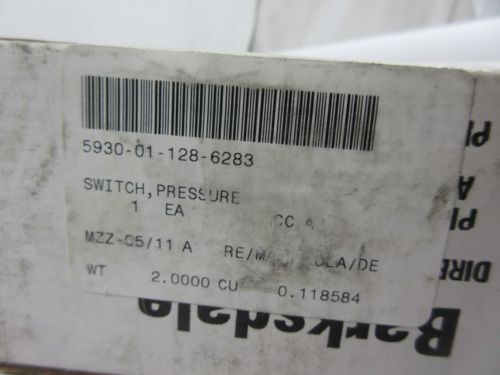

Barksdale B1t-a32ss Pressure Activated Switch - Nsn 5930-01-128-6283 -new- G1614

US $150.00

Hollywood, Florida, United States
Jun 9th

Open on mobile:
QR code

Barksdale B1T-A32SS Pressure Activated Switch - NSN 5930-01-128-6283 -NEW- G1614 5930-01-128-6283 (B1T-A32SS-F3, 13222E5274, B1T-A32SS-FX) Data 5930-01-128-6283 (5930011286283) NSN Information NSN FSC NIIN Item Name INC 5930-01-128-6283 5930 011286283 Switch, Pressure 00206 5930-01-128-6283 Features MRC Parameter Characteristics AARX Inside Diameter 0.500 inches nominal single connection ABFE Hazardous Locations/Environmental Protection Weather resistant and salt spray resistant and fungus proof ABHP Overall Length 4.375 inches nominal ABKW Overall Height 7.062 inches nominal ABMK Overall Width 2.500 inches nominal ADAU Body Height 5.250 inches nominal AEBV Unthreaded Mounting Hole Diameter 0.344 inches nominal AFDS Longest Horizontal Distance Between Mounting Centers 1.974 inches nominal AFDV Longest Vertical Distance Between Mounting Centers 5.875 inches nominal AJZC Pressure Switch Type GAGE AXGY Mounting Method Bracket and unthreaded hole CBBL Features Provided Electrical access port and internally grounded CQGB Contact Action Stimulus Increase CQJB Proof Pressure 4800.00 pounds per square inch gage CQYJ Mounting Facility Pattern Two position diagonal CRLD Nonpile-UP Contact Arrangement 1 pole, double throw, both positions maintained CSCF Terminal Type Screw CTHF Contact Load Current Rating 10.0 amperes resistive load first voltage CTHF Contact Load Current Rating 3.0 amperes resistive load second voltage CTYC Contact Adjustability Actuation point adjustable and deactuation point adjustable CTYM Contact Adjustment Range +239.00/+3200.00 actuation point pounds per square inch gage and +160.00/+3121.00 deactuation point pounds per square inch gage CTYS Contact Adjustment Type External actuation point screw and external deactuation point screw CTZB Contact Voltage Rating IN Volts 125.0 ac at sea level first voltage CTZB Contact Voltage Rating IN Volts 480.0 ac at sea level second voltage MEDA Media FOR Which Designed Gas or liquid STYL Style Designator Rectangular W/bracket 5930-01-128-6283 Manufacturing Part Numbers (SKUs) MFG SKU CAGE STATUS ISC RNVC RNCC SADC DAC HCC RNAAC 13222E5274 97403 A 5 2 3 1 CT B1T-A32SS-F3 89326 A 5 9 5 5 AJ B1T-A32SS-FX 89326 A 5 2 5 5 ZZ 5930-01-128-6283 Manufacturer MFG SKU CAGE Manufacturer Type Status Role B1T-A32SS-F3 89326 Barksdale Inc. A A B1T-A32SS-FX 89326 Barksdale Inc. A A 13222E5274 97403 Cecom LR Center A A 5930-01-128-6283 Replaces the Following Cancelled NSN Cancelled NSN Cancelled NIIN 5930-01-347-6843 013476843 5930-01-128-6283 FLIS Identification PMIC ADPE CODE CRITL CODE DEMIL CODE DEMIL INTG NIIN ASGMT ESD HMIC ENAC SCHEDULE_B INC A 0 X A 1 26-MAR-82 P 8536509065 00206 5930-01-128-6283 FLIS Management MOE REC REP CODE MGMT CTL USC PHRASE CODE PHRASE STATEMENT DM H 15B2--- M DN 9B----- N DS F ------- I DA F Q2100X- A DF N SF9EH-N F 5930-01-128-6283 Demilitarization Codes & Management DML PMIC HMIC ADPEC Criticality ESDC A P 0 X 5930-01-128-6283 Miscellaneous Management MOE (S_A) SOS AAC QUP UI SLC CIIC RC MCC SVC DA SMS H 1 EA 0 U F Q2100X- A DA SMS H 1 EA 0 U F Q2100X- D DA SMS H 1 EA 0 U F Q2100X- F DA SMS H 1 EA 0 U F Q2100X- M DA SMS H 1 EA 0 U F Q2100X- N DF SMS H 1 EA 0 U SF9EH-N A DF SMS H 1 EA 0 U SF9EH-N D DF SMS H 1 EA 0 U SF9EH-N F DF SMS H 1 EA 0 U SF9EH-N M DF SMS H 1 EA 0 U SF9EH-N N DM SMS H 1 EA 0 U H 15B2--- A DM SMS H 1 EA 0 U H 15B2--- D DM SMS H 1 EA 0 U H 15B2--- F DM SMS H 1 EA 0 U H 15B2--- M DM SMS H 1 EA 0 U H 15B2--- N DN SMS H 1 EA 0 U 9B----- A DN SMS H 1 EA 0 U 9B----- D DN SMS H 1 EA 0 U 9B----- F DN SMS H 1 EA 0 U 9B----- M DN SMS H 1 EA 0 U 9B----- N DS SMS H 1 EA 0 U ------- A DS SMS H 1 EA 0 U ------- D DS SMS H 1 EA 0 U ------- F DS SMS H 1 EA 0 U ------- M DS SMS H 1 EA 0 U ------- N 5930-01-128-6283 Component / End Item WPN SYS ID WPN SYS SVC WEAPON SYSTEM C7 N Navy Expeditionary Programs SF A Water Purification Unit, Reverse Osmosis (Rowpu) 5930-01-128-6283 Management Control Air Force FUND BUDGET MMAC PVC SF 9 EH N 5930-01-128-6283 Management Control Army MATCAT 1 MATCAT 2 MATCAT 3 MATCAT 4 5 ARC Q 2 1 00 X 5930-01-128-6283 Management Control Marine Corps SAC CEC MEC MIC OTC PCC 1 5 B2 5930-01-128-6283 Management Control Navy COG SMIC IRRC SMCC 9B 5930-01-128-6283 Freight NMFC NMFC SUB UFC HMC LTL LCL WCC TCC SHC ADC ACC ASH NMF DESC 061300 X 34410 P 658 Z 9 A H Z

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Barksdale
MPN	B1T-A32SS
Model	B1T-A32SS
Country/Region of Manufacture	United States
