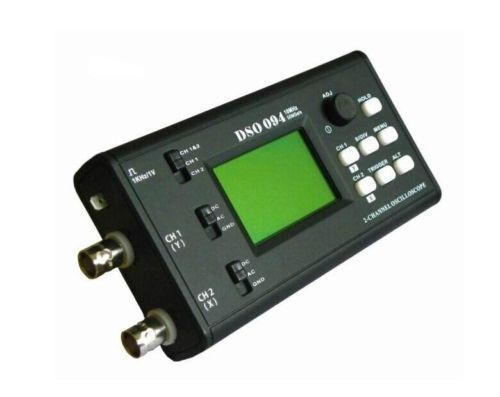

Dso 094 Dual Channel 10mhz 50msa/s Usb Virtual Digital Storage Oscilloscope

US $780

??, ???, China
Jan 29th

Open on mobile:
QR code

is_customized:YesBrand Name:CLENModel Number:DSO 094Channel:Dual ChannelAnalog Bandwidth:0 - 10MHzSensitivity:10mV/Div -- 5V/DivResolution:8-bitInput Impedance:1M ohmMaximum Input voltage:50Vpk (for 1X probe) and 400Vpk (for 10X probe)Coupling:DC, AC, GNDDimensions :140mm X 70mm X 30mmWeight:190 gram Feature Y/T mode and Y/X mode selectable Save/Recall up to 4 captures Screen image hardcopy USB connection for data transfer and firmware upgrade Rotary encoder for quick parameter setting 10MHz analog bandwidth 50Msps real-time sampling rate on each channel Vertical sensitivity 10mV/Div to 2V/Div (1X probe) and 0.1V/Div to 20V/Div (10X probe) Record length 500 - 8000 points on each channel adjustable Trigger position adjustable and trig point indicated Trigger sensitivity 0.2div - 4div adjustable Save/Recall up to 4 captures of maximum record length Screen image hardcopy via USB Firmware upgradable via USB Battery/USB powered Descripition: CLEN094 is the first two-channel member of our oscilloscope family. It not only can work in commonly used Y/T mode but also work in Y/X mode. The Y/X mode opens a new measurement area since it can graph relationships of any two signals. It is also an USB oscilloscope . CLEN094 is very easy and straightforward to use. No annoying command navigations. Parameters are logically grouped and can be fast adjusted with rotary encoder. Special operations are clearly listed and done by "modeless" menu which you can bring up and execute any time no matter what mode you was in. CLEN 094 comes with rugged enclosure and is battery powered This is ideal for field applications. Now CLEN 094 can also be used as PC oscilloscope . 094 has some unique features that are not commonly found in many similar portable oscilloscopes: It can be placed in "Persistent Display" mode that keeps waveforms on screen until you erase them. This is very useful when combined with NORMAL trigger mode to capture and compare multiple waveforms that meet certain trig condition. You can manually erase waveform and display. This will help you to get better viewing result especially for slow signal graphing. The trigger sensitivity is adjustable. This enhances the stability of capturing noisy signals. Vertical Number of Channel: 2 Analog Bandwidth: 0 - 10MHz Sensitivity: 10mV/Div -- 2V/Div Resolution: 8-bit Input Impedance: 1M ohm Maximum Input voltage: 50Vpk (for 1X probe) and 400Vpk (for 10X probe) Coupling: DC, AC, GND Horizonal Max Real-time Sampling Rate: 50MSps Timebase: 0.2us/Div - 10m(minute)/Div Record Length: 500 - 8000 points (each channel) changeable Run/Hold Modes: one button switchable Trigger Trigger Modes: Auto, Normal, Single Trigger Types: Rising/falling edge Trigger Sources: Ch 1 or Ch 2 Trigger sensitivity 0.2div - 4div adjustable Trigger Position: 0% - 100% of capture buffer adjustable Trig Point Indicator: Yes Display 2-inch 128 X 64 black-and-white dot-matrix LCD Backlight ON/OFF control Contrast adjustable Power supply 3.7V Li-ion battery/USB Supply Current: 300mA @ 3.7V(LCD backlight ON, typical). Built-in charger package info: One DSO094 oscilloscope ( international order has no battery because of shipping forbidden) Two BNC probe (20MHz, 1x and 10x switchable) USB cable User Manual(English) Powering ON/OFF the Device 2. Setting Parameters Contact Us Please contact us via leaving message,we will reply to you in 12 hours. Please don't hesitate to contact us if you have any questions and idea Goods Return/Refund 1 All of our products have been checked and packaged in a good condition before post out 2 Please note that men made defects are not guaranteed, such as damage after incorrect use and so on 3 The items returned should be kept in their original status 4 We will try our best to work with you to solve the problem Shipping · We Ship to Worldwide United States ,Canada,United Kingdom ,France,Australia we will used E-packed ship ,arrived about 10~15 days . · Items will be shipped within 3 business day on payment received. · Items are shipped from China using Airmail/ ePacket, reach most of the countries within 10 to 30 business days. Or you could choose other express. Check out my other items! Be sure to add me to your favorites list!

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	CLEN
Bandwidth	Less than 60MHz
Model	DSO 094
Channels	2
MPN	CLEN094
Sample Rate	Less than 200MSa/s
Type	Digital
Country/Region of Manufacture	China
