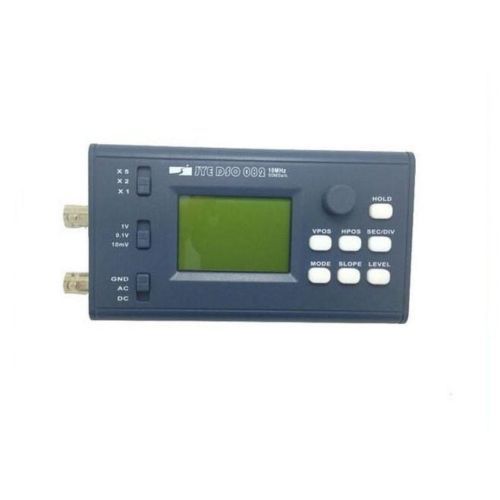

Jye Dso082 Digital Storage Oscilloscope 10mhz Portable With Full Probe &adapter

US $1900

??, ???, China
Jan 29th

Open on mobile:
QR code

is_customized:YesModel Number:DSO082Channel:SingleAnalog Bandwidth:0 - 10MHzSensitivity:10mV/Div -- 5V/DivResolution:8-bitInput Impedance:1M ohmMaximum Input voltage:50Vpk (for 1X probe)Coupling:DC, AC, GNDDimensions :140mm X 70mm X 30mmWeight:150 gram (not including probe and power adapter) Descripition: DSO082 is specified as 10MHz analog bandwidth but its actual 3db bandwidth is closed to 15MHz by real measurement and design. Up to 50Msps real-time sampling rate and 10mV/Div sensitivity enable the unit to carry out plenty of daily measurements for a regular electronic engineer or DIYer. Thanks to ample tactile controls and rotary encoder operations of DSO082 are straightforward and easy-there is no annoying menu navigation which is usually found with other portable oscilloscopes. Features also packed within the gadget include 1024point FFT, USB connection, capture save/recall, adjustable memory size, rugged enclosure, and more. Firmware is field upgradable through a simple USB cable. 20MHz 10X/1X switchable BNC probe and universal power adapter are included. Features 10MHz analog bandwidth and higher 50Msps real-time sampling rate Vertical sensitivity 10mV/Div to 5V/Div Record length 2000 - 16000 points adjustable Trigger position adjustable and trig point indicated Up to 10x zoom-in in HOLD state Save/Recall up to 4 captures Screen image hardcopy via USB Firmware upgradable via USB FFT with selectable length of 256, 512, or 1024 points and sampling rate from 1KSps to 50MSps Quick operation by keypad/rotary encoder combination. No annoying menu navigating Rugged enclosure Specification Vertical Number of Channel: One Analog Bandwidth: 0 - 10MHz Sensitivity: 10mV/Div -- 5V/Div Resolution: 8-bit Input Impedance: 1M ohm Maximum Input voltage: 50Vpk (for 1X probe) Coupling: DC, AC, GND Horizontal Max Real-time Sampling Rate: 50MSps Timebase: 0.2us/Div - 10s/Div Record Length: 2000 - 16000 points user selectable Zoom-in: Up to 10X in HOLD mode Run/Hold Modes: one button switchable Trigger Trigger Modes: Auto, Normal, Single Trigger Types: Rising/falling edge Trigger Sources: Internal/external Trigger Position: Adjustable Trig Point Indicator: Yes Other Features Save/Recall up to 4 captures Screen image hardcopy USB connection for data transfer and firmware upgrade FFT with selectable length of 256, 512, or 1024 points and sampling rate from 1KSps to 50MSps Rotary encoder for quick parameter setting Dispaly 2-inch 128 X 64 black-and-white dot-matrix LCD Backlight ON/OFF control Contrast adjustable Power Supply 9V AC/DC power adapter Supply voltage range: 8 - 12V Supply Current: 300mA (LCD backlight ON, typical) Reverse polarity and over-voltage protected Packing List: One DSO082 oscilloscope One BNC probe (20MHz, 1x and 10x switchable) One AC/DC universal power adapter (choice of North American or European style plug) Manual of Operation (English) The detail complete manual will send by email after shippment! Contact Us Please contact us via leaving message,we will reply to you in 12 hours. Please don't hesitate to contact us if you have any questions and idea Goods Return/Refund 1 All of our products have been checked and packaged in a good condition before post out 2 Please note that men made defects are not guaranteed, such as damage after incorrect use and so on 3 The items returned should be kept in their original status 4 We will try our best to work with you to solve the problem Shipping · We Ship to Worldwide United States ,Canada,United Kingdom ,France,Australia we will used E-packed ship ,arrived about 10~15 days . · Items will be shipped within 3 business day on payment received. · Items are shipped from China using Airmail/ ePacket, reach most of the countries within 10 to 30 business days. Or you could choose other express. Check out my other items! Be sure to add me to your favorites list!

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Model	DSO082
Channels	2
MPN	DSO082
Sample Rate	Less than 200MSa/s
Type	Digital
Country/Region of Manufacture	China
Bandwidth	Less than 60MHz
