Guzik S1701mp Hard Drive Spinstand With Rwa-1632 Prml, Ana-961 Prml & Computer

US $2,500.00

Coalinga, California, United States
Feb 13th

Open on mobile:
QR code

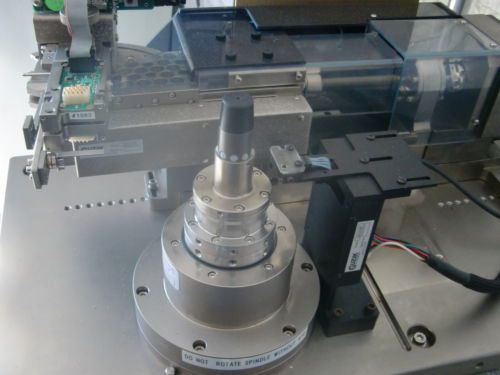

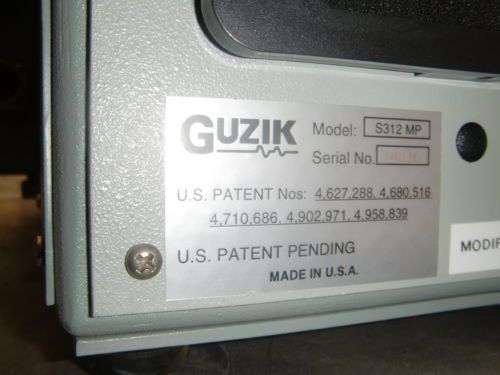

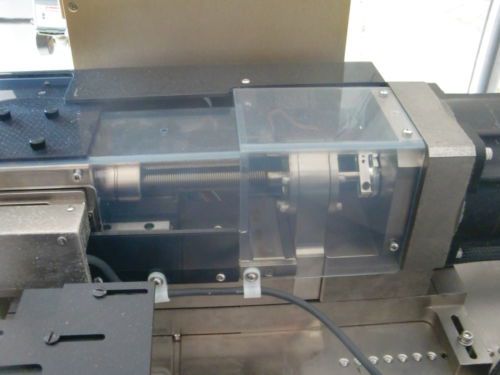

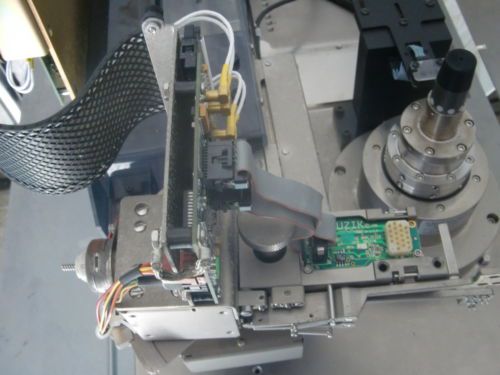

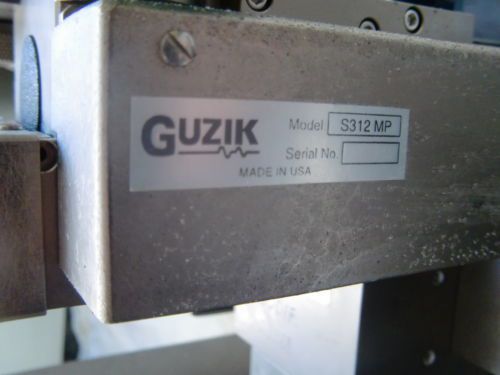

GUZIK Spinstand 312MP The GUZIK S-312MP Micro Positioning Universal Spinstand is equipped with a precision closed loop positioning system consisting of a piezo substage and optical scale with 0.08 µIn resolution. This results in track positioning repeatability of 1 µIn and track profile measurements with effectively zero hysteresis. This capability is a requirement in MR-Head testing and high TPI track profile and track interference analysis. Through a patented linear simulation of rotary skew, the S-312MP's positioning mechanism allows simulation of a drive's rotary positioner. Any valid pair of skew angles from -7 degrees at the I.D. to +22 degrees at the O.D. can be easily configured, and step size is automatically varied as a function of track location, thereby accurately simulating a rotary actuator. mounted on a granite platform The S-312MP is designed to be a universal spinstand that is capable of double sided testing of all types of HGA's using optional head cartridges. As a disk tester it can test media as small as 1.3" to as large as 5.25", with available spindle chucks. Features Micro Positioning repeatability of 1 µ with 0.08 µ resolution. All standard features of S-312 spinstand: Linear simulation of Rotary Skew configurable from -7 to +22 degrees. Universal Spinstand fully equipped for head testing or disk testing Uses HGA’s mounted in easy change adapters for top and bottom testing. Step size automatically varied as a function of skew angle. Uses 8 and 9 ball media clamps. Dynamic or Static head loading at any radius. Interchangeable "Z" height head cartridges. Optical RPM encoder. Programmable spindle speeds from 200 to 10000 RPM. Specifications: Physical Size 24" x 12" x 18" Weight 150 lb. Power 110 vac ± 15% 50/60 Hz, 3 amps approximately 230 vac ± 15% 50/60 Hz, 2 amps approximately Environmental: Operational: 15 C to 40 C, 90% maximum relative humidity, with no condensation Spindle Bearings: Air Bearing Motor: Brushless DC, programmable, 200 RPM - 10,000 RPM, RPM Jitter: ± 0.02% typical

“this was removed from a working environment.”

Brand	Guzik
Products Tested	Hard Drive
Model	Hard Drive Spin Stand
Equipment Class	Test and Analysis
MPN	S1701MP
Options Included	RWA-1632 320/Mbps PRML Read Write Channel Analyzer
