Inno Ifs-15h Fusion Splicer & Odm Ttk 500 Sm & Mm Test Kit 1310/1550 & 850/1300

US $10,400.00

Phoenix, Arizona, United States
Jan 29th

Open on mobile:
QR code

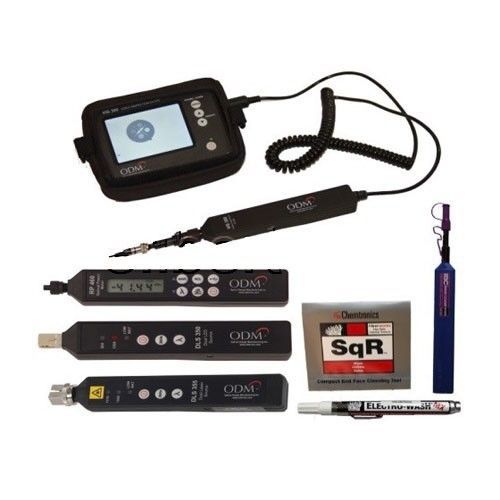

eFiberTools Product ID: Item may require 7 to 14 days lead time. Fiber Optic Loss Test Kit with VIS 300 connector inspection monitor/probe, single mode and multimode light sources, power meter, battery kit, cables, connectors, software, case and cleaning supplies. Splicer, cleaver, cooling tray, indoor stripper, protector, battery, cooling tray, power cable, AC adapter, electrodes, CD, working table, carrying case, car charger cable. This combo pairs INNO Instrument's New Core Alignment IFS-15H Fusion Splicer with ODM's TTK 500 Single-mode & Multi-mode Optical Loss Test Set. Splice single fibers fast using the IFS-15H splicer then test using the accurate TTK-500 kit all while saving money. Manufacturer Description IFS-15H Features: Compact size 1.82kg weight (without battery) Splicing Method: DACAS (Digital Analysis Core Alignment System) Friendly smart GUI Quick optimize menu High precision splicing USB master port, easy to upgrade software Replaceable universal holder Replaceable Splice-On Connector (SOC) holder Replaceable Splice-On Connector (SOC) heating oven FTTH fitted package The IFS-15H core-alignment fusion splicer with the new (DACAS) Digital Analysis Core Alignment System is one of the most dependable splicers on the market. The IFS-15H has a user friendly, intuitive GUI (Graphical User Interface) with a 4.3 inch high-resolution color LCD screen that is easy to see and use. With the compact size of the fusion splicer (155mm*130mm*137mm) and the portable carrying case, the IFS-15H FTTH Master provides an adaptable and convenient package to FTTx field technicians. More impressive than the compact size is the significant innovation in compatibility. The IFS-15H is compatible with the most widely used fibers and cables, including splice-on connectors. It combines the functions of both splicing and heating for those cables which are popular in FTTH: 250µm fiber, 900µm fiber, flat cable, fiber jumper and splice-on connector. INNO Instrument 3-Year Warranty The INNO Instrument IFS fusion splicer models include a three-year warranty against manufacturer's defects. For a period of three-years defective materials will be repaired or replaced. Wearable items such as battery and electrodes are not covered. No warranty is expressed or implied regarding damage resulting from consumer misuse or neglect or for any consequential damages arising out of the use of this product. Physical damage, improper use, and shipping are not covered under any warranty. TTK 500 TTK 500 is configured for Video Inspection with USB for data download to your computer. • RP 460 power meter with streaming data software • DLS 350 LED light source • DLS 355 Laser light source • The kit is also equipped with cables, adapters and cleaning items for both single mode and multimode testing. • VIS Image Manager Software included to create Loss Reports. IFS-15H Weight 1.82kg without battery Applicable Fibers SM(ITU-TG.652)/MM(ITU-TG.651)/DS(ITU-TG.653)/NZDS(ITU-TG.655)/ITU-TG.657A/ITU-TG.657B Compatible Fiber/Cable 0.25mm/0.9mm/2.0mm/2.4mm/3.0mm/ Flat cable Fiber Count Single Core Fiber Holder Detachable (Standard: FH-40, Optional: FH-10, FH-ST, FH-SC) Fiber Diameter Cladding:80-150µm/Coating:100-1000µm Fiber Cleave Length Diameter 250µm-1000µm: cleave length 8-16mm Splice Mode Max/Preset 64/24 Typical Splice Loss SM:0.02dB/MM:0.01dB/DS:0.04dB/NZDS:0.04dB/G.657:0.02dB (ITU-T Standard) Return Loss >>60dB Splicing Time SM Quick Mode: 7 seconds Estimated Splice Loss Available Attenuation Splicing 0.1dB-20dB (0.1dB step) Heat Oven/Heating Time Heat Mode: 32/Heating Time (Typical): 35 second Applicable Protection Sleeve Length 10mm, 20mm, 30mm, 40mm, 50mm, 60mm Results Storage The last 2000 results Mechanical Proof Test 1.96~2.25N [Based on the fiber count] Operating Condition Operating Altitude:0-5000meter above sea level, 95% relative humidity, - 10~50°C, Max Wind 15m/s Storage Condition 0~95% relative humidity, -40~80°C, Battery: -20~ 30 °C Size/ Color 155*130*137(L*W*H)/ Eco-green Display 2 Cameras and 4.3 inch color LCD monitor (with high resolution and shock-proof protect surface) Fiber View & Magnification X/Y 300x, XY 180x Power DC 18V Power Supply No of splice/Heating with Battery Typical 160 times(Splice + Heat) / Splice + Heat=26.7mA/per time Battery:4200mAh Electrode 2500 Times Splicing Terminal USB 2.0/RS232 (for storage and upgrading) Other Functions IFS-15H Exclusive Software /Exclusive Heat Oven-for splice-on connector/Splice and Heat mode for connectors TTK-500 Resolution .01dB Dynamic Range 60dB Multimode Dual 850/1300nm Singlemode Dual 1310/1550nm Fiber Optic Tools & Supplies BUY | SELL | TRADE Mail/Shipping Address: eFiberTools 329 W. Melinda Lane Phoenix AZ 85027, U.S.A. Phone: Toll-Free: (623) 582-5560 (877) 773-3423 Business Hours: 8:00 am - 4:00 pm (AZ time) Monday to Friday Email: ebay@efibertools.com PAYMENT OPTIONS Credit/Debit Cards are accepted for USA and Canadian eBay transactions pursuant to our eBay Sales Policy*. Cards accepted: Visa, MasterCard, Discover Card, and American Express. We may require shipping to the card holder's billing address and signed CC Authorization form. PayPal is always accepted for USA and Canadian transactions when shipping to a PayPal Confirned address. Shipping to a PayPal verified address may be required. Authorization for PayPal acceptance when the item is being shipped to outside of the U.S.A. at our discretion. Contact us with questions. Bank Wire Transfers are accepted for amounts over $200. This is the preferred payment optiosn for international customers, dropship, and high-value items. Check and Money Orders are accepted, at our discretion, and may require a wait time before shipping item. Use the shipping quote calculator supplied by eBay, or contact us for a shipping or freight quotes. Do not hesitate to contact us directly if you feel the shipping calculated using the eBay quote calculator is excessive. We generally do not ship on the buyer's shipping account, except in unusual circumstances. Contact us prior to bidding if you wish to use your account. Most items ship using UPS. USPS may be used upon request. Most items are shipping within one business day unless otherwise indicated. We will help you to find the lowest, reliable rates for any pallet or crate shipments, and you may use your own freight carrier with no additional costs except typically a palletizing charge. If an item appears to be damaged due to shipping, PLEASE SAVE ALL PACKAGING MATERIAL and contact customer service immediately. International We use UPS for international shipments. In some exceptional instances we may us USPS. If the eBay site's shipping quote calculator total seems excessive then we encourage you to contact us immediately. Box size of each item is specified in our database and some international shipping quotes can be reduced by finding a more accurate box size. Domestic We use UPS with most packages, or USPS for some small packages. All items shipped by UPS include insurance. Items exceeding 150lbs, or larger than UPS allows must be shipped by freight using a pallet or crate and must quoted manually. Contact us prior to bidding for freight shipping quotes. Local Pickup You are welcome to pick up your purchase during normal business hours M-F, 8am to 4pm.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	INNO Instrument
Battery Life Cycle	160 Splice and Heat Cycles
Model	IFS-15H
Fusion Splicer Options	Stripper and more
Item Application	Fiber Optic Cable
Splicing Capabilities	Core Alignment
Wavelength	SM and MM
Splicer Power Required	AC 100-240V
Equipment Class	Battery
