Odm Otr 500-s-p Singlemode Otdr 1310/1550 W/ Vis 300 Connector Inspection Scope

US $2,995.00

Phoenix, Arizona, United States
Jan 29th

Open on mobile:
QR code

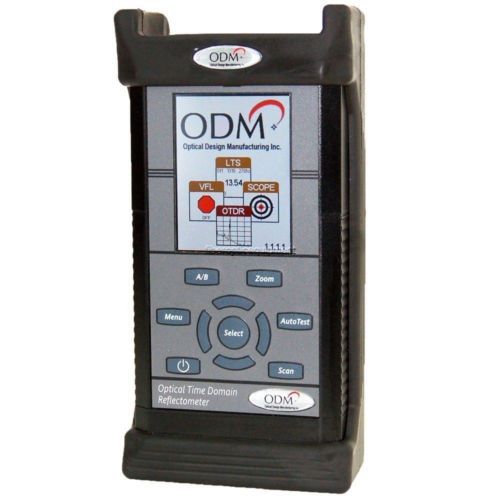

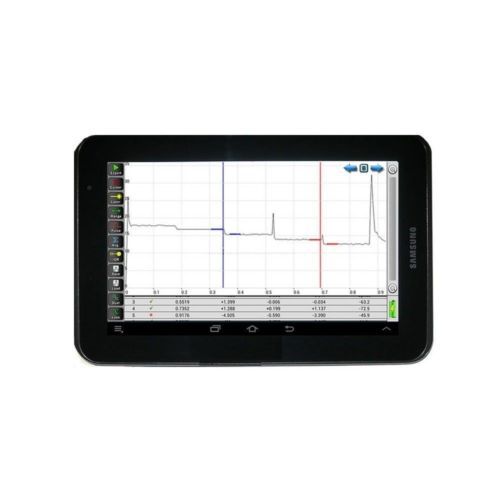

Item may require 7 to 14 days lead time. Includes ODM OTR 500-S-P Single-Mode 1310nm/1550nm OTDR with accessories in hard carry case. Optical Time Domain Reflectometer from Optical Design Manufacturing, Inc. (ODM). SM unit with dual wavelengths of 1310nm and 1550nm. Bluetooth compatibility with Android Bluetooth enabled smartphones and tablets. The OTR 500-S-P includes the available VIS 300 upgrade with 4 adapter tips. View fiber endfaces directly on the OTDR using the VIS-300 upgrade (included). Contact us for more information on these new OTDRs from ODM. Manufacturer Description Event table with PASS/FAIL analysis Bi-directional averaging – unit automatically performs all necessary calculations Short event dead zone (2 meter for OTR 500) makes the unit ideal for short link installations Bluetooth compatibility for precision control with Android Bluetooth- enabled smartphones and tablets The ODM OTR 500 gives test technicians and contractors all the tools necessary for testing optical reflection and loss in fiber networks. The optional video scope (not included) allows for extensive options in endface inspection, ensuring industry acceptable optical connections. The units come in single mode (1310/1550nm), making the OTR500 the perfect option for single mode installations. The OTR 500 offers an event table with PASS/FAIL analysis for each reflective event, and the 2 meter dead zone provides accurate reflective event testing in all fiber systems. Each event can be inspected manually using the event selection feature or automatically with the device’s built-in pass/fail function. With ODM’s OpTrace app for smartphones and tablets, users can control their OTR device, view/save test results, and save data wirelessly via Bluetooth. While the OTR boasts a color screen 3.5”, and allows for up to 1,000 trace saves, screen size and save capacity are limited only by your smartphone or tablet when connected via Bluetooth. Wavelength 1310nm,1550nm, +-20nm Dynamic Range 32/30dB SM Pulse Width 20 - 10,000 ns Units of Measurement km, kf, mi Event Dead Zone 2m Attenuation Dead Zone 5m Resolution 0.25-64m Distance Uncertainty +-(0.75 + 0.005% x distance + sampling resolution) Full Scale Distance Range 1-64km MM, 1-240km SM Typical Real-Time Refresh Rate 4 Hz Group Index of Refraction (GIR) 1.024 - 2.048 Linearity +- .05 dB/dB Memory Capacity 1,000 traces Memory Type Internal Power Supply/Charger Universal Battery 6hr Storage Temperature -20 to 60 C Operating Temperature Range -10 to 50 C Dimensions (w/out rubber boot) 7.62” L x 3.88” W x 1.56” H (194mm L x 99mm W x 40mm H) Weight 1.6 lbs. Communications ports USB/Bluetooth Connector Styles FC, ST, SC Interchangeable

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	ODM
Wavelength	SM 1310/1550nm
Model	OTR 500-S-P
Equipment Class	Battery
Item Application	Fiber Optic Cable OTDR
