Lan Port Industry Waterproof Multipoint-temp Data Acquisition,2 Channels W/p_d2

US $149.50

shenzhen, guangdong province, China
Jan 29th

Open on mobile:
QR code

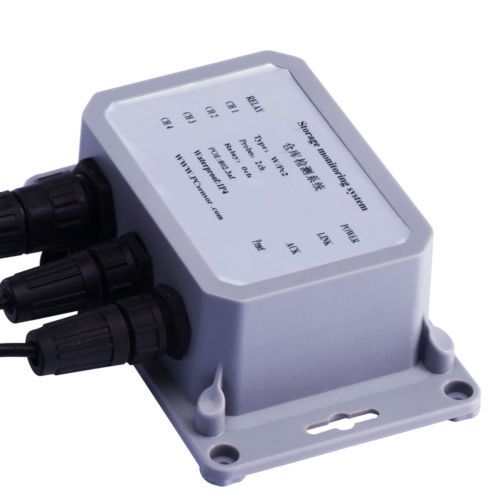

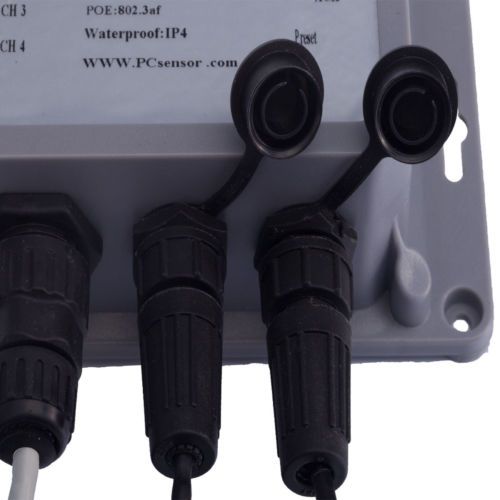

Waterproof network specification 1.Equipment Introduction: Model Name : W/P_D2 Application fields: Vegetable greenhouse temperature and humidity detection?storage temperature and humidity detection?industrial environment temperature and humidity detection, etc Feature 1.Device realizes real-time collecting temperature and humidity data. 2.Software realizes real-time reading environment temperature and humidity, and saves the data. 3.Software supports the Windows system 4.Standard POE power supply mode, compatible with 802.3 af Electrical parameters: 1.Working voltage: DC 5V 2.Working current:<110mA 3.Equipment power: < 0.6 W Factory settings: (1)IP address: 192.168.1.188 (the user can modify) (2)The subnet mask: 255.255.255.0 (the user can modify) (3). The gateway: 192.168.1.1 (the user can modify) (4). Connection types: TCP (default shall not modify) (Device supports secondary development, the details please consult the salesman) Equipment appearance: 2.Device Use Device using aviation plug connecting internal circuit board, probe and network port. Please tighten the aviation plug, and then connect the switch that support POE with the cable. Device can work( Note: You must insert the plug before power-on). 2.1 Panel function The front of the device has 8 lights to indicate the working status and a button to restore factory settings, function as follows: POWER light on : power supply normal LINK light on: network connecting normal ACK light flash: network port is sending and receiving data RELAY light: Indicator relay status,when the relay closes the light is on or the light is off CH1~CH4 light: If the device reads normally the light will flash. 2.2 Direct connection Connect device to computer with one cable, generally called direct connection or point-to-point connection. It makes it easy to visit device, wire and opera. Note: The device supports POE power supply mode only. 2.2.1 Network Settings Factory default IP (192.168.1.188) subnet mask (255.255.255.0) gateway (192.168.1.1).Computer and device must in the same network segment . Steps as follows: Step one: "Network Place" -> 'Check the local connection" ->"Local Connection", right click the "Local Connection"->"Properties" Step Two: "This connection uses the following items" ->"Internet Protocol Version (TCP/IP)"->"Properties" Step three: Select "Use the following IP address", fill in the subnet mask, default gateway same to the device. Set the IP as 192.168.1.xxx, the final data (xxx) of device IP and the computer IP can not be same (note : xxx don't set 0 or 255),Set up and then click "ok", save. 2.3 Networking connection The device and the computer have only one network port, if the user wants to visit several devices, or use several computers to visit one or more devices, it requires the user to form a network, the user needs to choose the switch supports POE. There must be more switch ports than the devices. If the computer and the device is not in the same network segment, users need to modify the IP, subnet mask, gateway to fit with current network, please refer to the device software setting 2.4 Restore factory settings If you forget the parameters or incorrectly set to make it not work, you can press the Preset button on device for 3~5 seconds. It is finished when the LINK and ACK light go out. 3. Data detection The resolution and precision of the data will be different by different probes. Please refer to the table below Probe types resolution Error Effective detection range temperature(°C) Humidity (%) temperature(°C) temperature(%) Temperature (°C) Humidity (%) Tx 0.0625 ±2 -40~+125 Dx 0.0625 ±0.5 -55~+125 HS10 0.04 0.03% ±1.5 <4% -40~+123.9 0~100% 4.Software installation 5.Pack List Model W/P body sensor CD software Paper specification W/P_T1 1 TXprobe:1 1 1 W/P_T2 1 TXprobe:2 1 1 W/P_D1 1 DXprobe:1 1 1 W/P_D2 1 DXprobe:2 1 1 W/P_H1 1 HS10probe:1 1 1 W/P_H2 1 HS10probe:2 1 1 Note:All probe line is 1 meter long, need to customize probe line please contact customer service. Besides the customer need to provide your own switch supports standard POE (IEE802.3 af) 6.Version Name Versions Note Waterproof network Specification(English)-2014 beta version v3 7.Copyright Copyright© 2014 by SHENZHEN RDING TECH CO., LTD.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	PCsensor
Country/Region of Manufacture	China
Model	W/P_D2
