Landis Type 4r & 4rh Crankpin Grinders Parts List Manual *1084

US $310

  • Goddard, Kansas, United States
  • Jan 30th
Open on mobile:
QR code

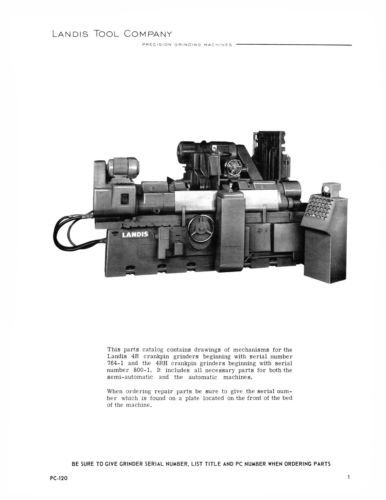

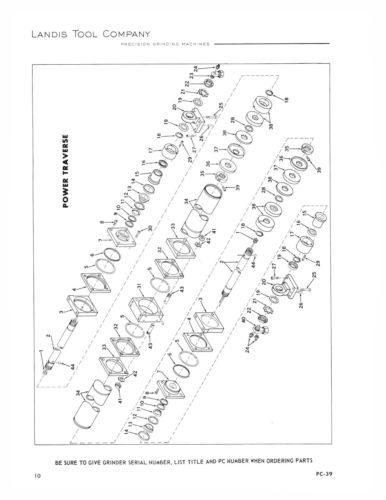

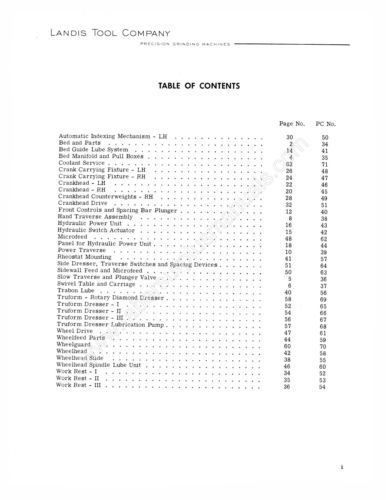

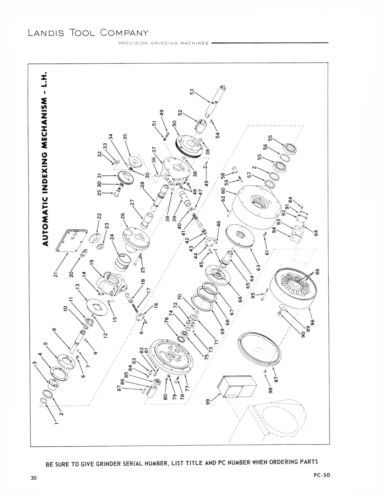

Landis Type 4R & 4RH Crankpin Grinders Parts Manual Parts List Manual For models:  Type 4R serial 764-1 & Over,                Type 4RH Serial 800-1 and Over Description: This parts catalog contains drawings of mechanisms for the Landis 4R grinders beginning with serial number 764-1 and the 4RH crankpin grinders beginning with serial number 800-1.  It includes all necessary parts for both the semi-automatic and the automatic machines.   The manual has 62 pages.  To inspect the quality of the manual, to view the table of contents, and to view select pages,  please click on the gallery images above to enlarge. Includes sections on: Exploded parts views Parts Lists Number of pages: Approx 62 Condition: Very Good Publication date: N/A Publication No.:  N/A Added Notes: Due to others making copies of these manuals for resale, select                             pages have been lightly watermarked to discourage this practice. About This Manual:    This is a high quality reproduction manual which has been scanned with a high resolution scanner.  Each page is then digitally edited in Photoshop to remove grease marks, fingerprints, writing, and other imperfections that the original manual may have had.  It is then printed on 24 lb heavy paper and 65 lb cardstock for the covers with a 600 DPI LaserJet printer.  The result is a clean and durable manual which many times is better than the original and should last many years in your shop. Questions? Email: eugene@fabersurplus.com Phone: 316-210-4079 after 11:00 am Central Time Please leave message if I don't answer. Ships USPS First Class Free or Upgrade to Priority Mail for faster delivery. Sales tax charged for Kansas sales. See my for more manuals
Condition New other (see details) :
A new, unused item with absolutely no signs of wear. The item may be missing the original packaging, or in the original packaging but not sealed. The item may be a factory second or a new, unused item with defects. See the seller’s listing for full details and description of any imperfections.
Seller Notes “New Reproduction Manual”
