Lcd1602 Blue Screen With Back Light 5v Lcd Mcu Development Display 1602a

US $4.99

Shenzhen, China
Jan 29th

Open on mobile:
QR code

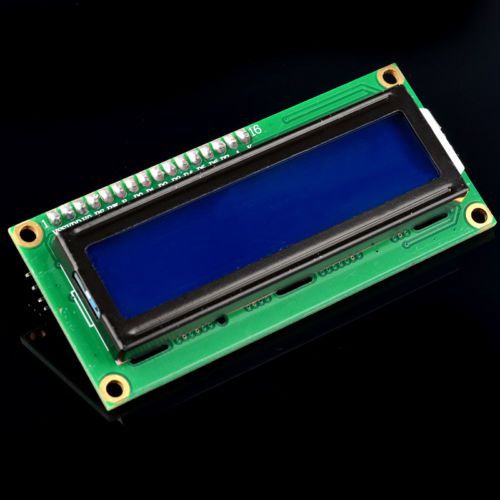

LCD1602 blue screen with back light 5v LCD MCU development display 1602A Description Description: 1602 LCD Blue glancing at the end of Standard 16 X2 liquid crystal display character module (the backlight/blue hold) 1602 the standard 16 feet interface, among them: 1 foot: for to power VSS 2 feet: VDD take 5 V is power 3 feet: V0 for LCD contrast the adjustment, and then when the power is the weakest contrast, grounding the power supply highest contrast, high contrast can produce the "ghost", when used, can pass a 10 K adjust potentiometer contrast 4 feet: RS for registers choice, high electric usually choose data registers, low electric usually choose instruction register. 5 feet: R/W signal lines for reading and writing, high electric usually are read operation, low electricity at ordinary times for write operation. When the RS and RW together for low electricity can be written instructions at ordinary times, or displays address, when RS for low level for high electricity can usually RW read busy signals, when RS for high level for the low electricity can usually RW write data. 6 feet: E end to make can end, when E is driven by high level jump into low electricity at ordinary times, LCD module executive order. 7 to 14 feet: D0 ~ D7 for eight two-way data cables. 15 feet: backlighting power positive 16 feet: backlighting power negative Package include: 1x LCD1602A LCD MCU development blue 5V with back light Payment 1. We accept payment via PAYPAL ONLY. 2. Payment must be made within 4~7 days of auction closing. 3. TOTAL AMOUNT DUE includes the final auction price plus S&H(Shipping and Handling) 4. S&H will be determined based upon the SHIP TO address. PLEASE NOTE: S&H DOES NOT INCLUDE DUTIES, LOCATL TAXES OR ANY OTHER IMPORTATION FEES. 5. Please list your special requests (color, packages, etc.) in the PAYPAL NOTES SECTION when you make payment. Delivery details 1. Items are dispatched within 48hours(except weekends and holidays) 2. Local pick up is not available. 3. Customers in Porto Rico, Alaska and Hawaii are recommended to contactus for shipping details(shipping cost&time) before placing an order. Warranty Returns&Refunds Return: 1.This product comes with 30-Day Money Back Guarantee. 2.If you receive an item and it doesn't work properly or you don't likeit because of any reason at all, we have a 100% refund/return policy. Wewill ship you a new item or refund your money for the full sale amount. 3.For all returned products, buyers MUST contact us for the returningaddress. Warranty: 1.Warranty will be valid for 12 months against manufacturing defect. 2.The warranty shall not apply to the following circumstances Feedback Please email us before leaving negative and neutral feedback. We will try ourbest to solve the issue. Your satisfaction is our first priority. We appreciateyour positive feedback. Contact us 1.We have alwaysbeen trying to provide the best service and reliable products for every customer, however, accident may happen sometimes, please contact us toresolve any issue before leaving a negative feedback. 2. We will reply you ASAP. If no response within 24 Hours, please check the spam in your mail box. Engineered for professional eBay sellers! On Dec-10-14 at 20:35:46 PST, seller added the following information:

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Type	Electronic Components
MPN	1602 LCD
Brand	ABK
Country/Region of Manufacture	China
Model	1602 LCD
