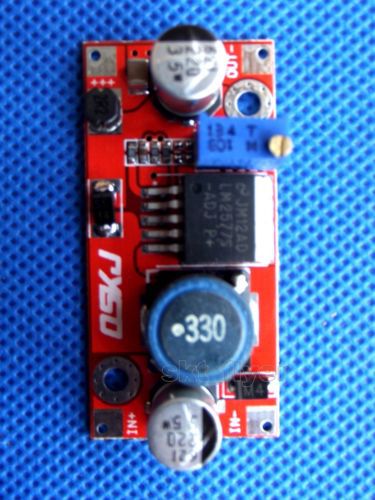

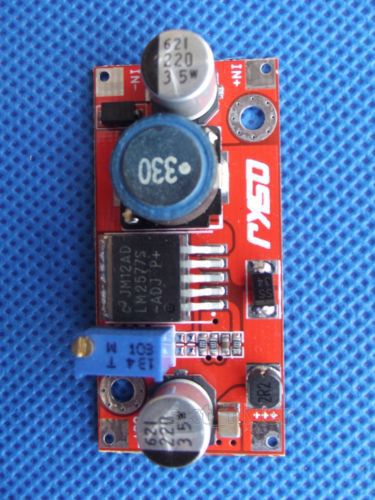

Lm2577 Dc Step-up Voltage Converter 3-34v To 4-35v Adjustable Power Supply

US $190

Nanjing , Jiangsu, China
Jan 29th

Open on mobile:
QR code

Description: Module Properties: non-isolated step-up module (BOOST) Input voltage :3-34V Output voltage: adjustable (4-35V) Output current: 2.5A (MAX) Input Current: 3A (MAX) Output power: natural cooling 15W, heat sink 25W(MAX) (this item do not including heat sink) please use the heatsink if the output is over 15w or the module may get burned conversion efficiency: 90% Maximum output power = input voltage * 3A * conversion efficiency Operating Temperature: Industrial (-40°c to +85°c) (if ambient temperature exceeds 40°c, lower power use, or enhance heat dissipation) Full load temperature rise: 45°c No-load current: Typical 15mA (5V to 12V) Load regulation: ± 0.5% Voltage regulation: ± 0.5% Dynamic response speed: 5% 200uS Short circuit protection: None (Please Install fuses and protection circuits at Input port.) Input Reverse Polarity Protection: None (Please Series diode at the input port.) Installation: You can screw (diameter 3 mm), 2 fixing holes Connection: Welding, pin can be directly soldered to a PCB Package LM2577 Boost DC-DC Step-up Converter 3-34V to 4-35V x1 WELCOME TO MY EBAY STORE http://stores.ebay.com/skt-flyer Payment We accept payment by Paypal. Shipping We ship by Airmail. We will select the fast and reliable way for delivery. Save on shipping and safter on delivery. We are not responsible for wrong or undeliverable address. Tracking number: The price is USD2.00, it is optional but you are recommanded to use it. Please contact us to buy if you need it. Delivery time By airmail: 2-4 weeks to ASIA, West EURO, and North America. 3-5 weeks to South America, Mid-East, East EURO and Africa. Over 45 days to Russion , italy By EMS: 5-7 businessdays For more information about the shipping time and please refer to the following link: http://members.ebay.com/ws/eBayISAPI.dll?ViewUserPage&userid=skt_flyer For public holiday in China and the delivery time will be delayed for some days due to the post office and customs will have holiday and the process of the package will be delayed. International Buyer please note 1 We are not responsible for any custom duty or import tax.These charges are not included in the item price and shipping cost. 2 Please Check with your country's customs office to determine what these additional costs will be prior to bidding/ buying. Return If you are not satisfied when you receive your item, please return it within 7 days for a replacement or money back. Please contact me before you return it. Not accept returning of electronic components. Full refund after we receive our original item.
