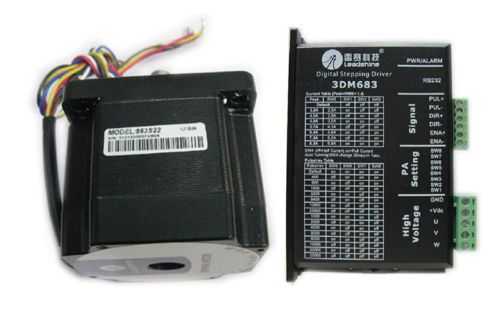

Nema34 312ozin 2.3nm 24-60vdc 3ph Stepper Motor Drive 863s22+3dm683 Dhl Freeship

US $228.00

  • shenzhen,Guangdong, China
  • Jan 29th
Open on mobile:
QR code

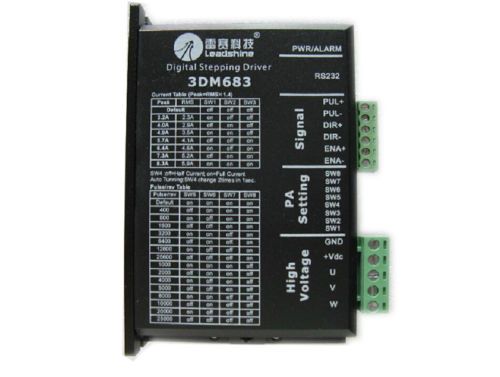

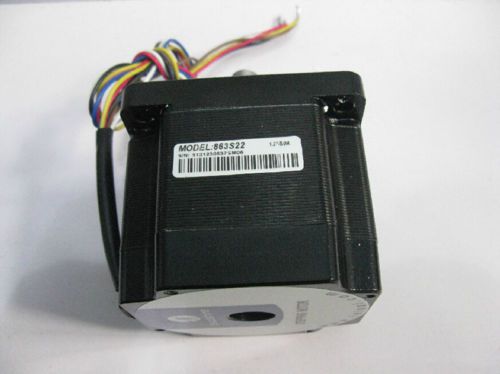

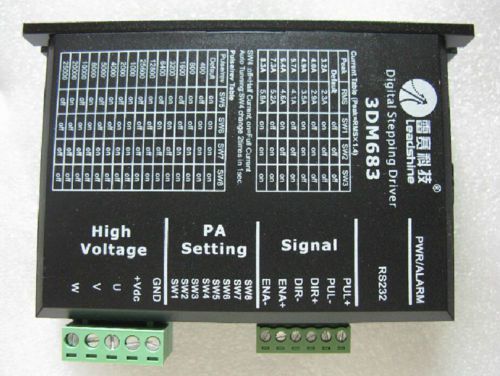

Leadshine NEMA34 86mm 312ozin 2.3NM 24-60VDC 3phase Stepper motor Drive kits 863S22+3DM683 NEW Stepper Motor 863S22 General Specifications Angle Accuracy +5%(full step, no load) Temperature Rise 80°C Max Ambient Temperature -10°C -- +50°C Insulation Resistance 100M?min.500VDC Dielectric Strength 500VAC for one minute Shaft Radial Play 0.06 Max.(450g-load) Shaft Axial Play 0.08 max.(450g-load) Electric Model No. 863S22 Step Angle 1.2° Phase 3 Phase Holding Torque 2.3 N.M 312 oz-in NEME Size NEME 34 Motor frame size Frame 86 Current /phase 5.0 A # of leads 6 Motor Weight 1.7 Kg Motor Length L 71 mm Drive 3DM683 DM Series Classis Analog Stepper Drives Highlights Step & direction or CW/CCW control Advanced DSP-based current control algorithm Low-middle speed anti-resonance Extra low noise; extra low motor heating; smooth motor movement Easy setup via DIP switches for microstepping resolution and output current Free software for fine tuning, output current, resolutions... Automatic stepper motor identification and self configuration Electrical Specifications Phase Series Model Current Voltage Microstep Motor Adapter Weight Size Controlling Signal 3 Phase DM 3DM683 3.2-8.3A 24-60DCV -- 57,42,86 -- 118*75*32 Single-ended;Differential Signal DM Series Applications Suitable for applications require high performance, extra low motor noise, extra smooth movement stepper systems, such as CNC routers, small and medium size milling or engraving machines, laser machines, lab automation instruments, textile equipment, medical devices, assembly machines, pick-and-place devices, etc. 863S22 Dimension   86 Series 3 Phase Electircal Connection 863S22+3DM683 Torque Diagram
Condition:
New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...
Brand Leadshine
MPN 863S22+3DM683
Model 863S22+3DM683
Country of Manufacture China
