New Charnwood W316 5/8'' Bench Top Morticer With Sliding Bed

GBP 279.00

Bardon, Leicestershire, United Kingdom
Jan 31st

Open on mobile:
QR code

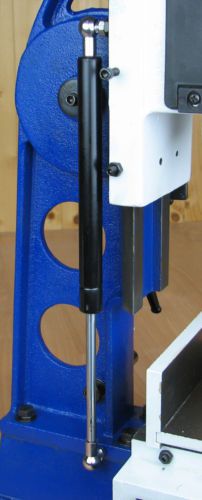

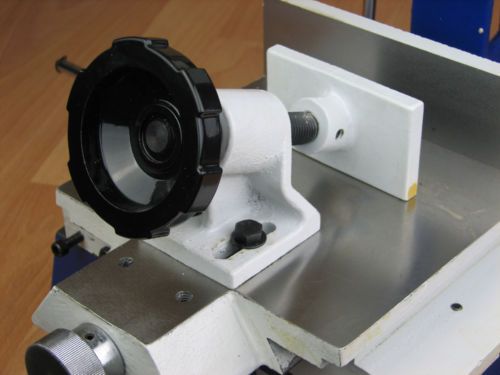

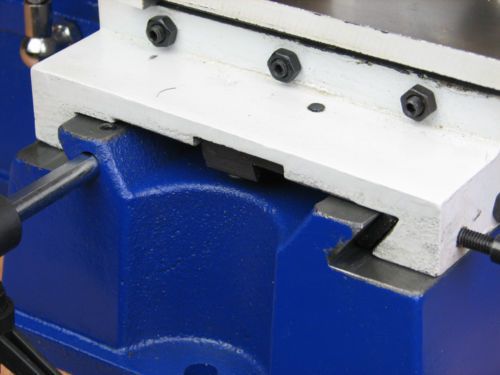

CHARNWOOD W316 5/8'' Bench Top Morticer with Sliding Bed Description Bench top hollow chisel morticer with an accurate sliding table system. Table Moves Through X and Y Axis Cast Iron Head, For Strength & Stability Cast Iron Table, Hard Wearing For A Long Life Cast Iron Fence, For Secure Workpiece Clamping Cast Iron Base, For Fixing to a Workbench Plunging Head Controlled by Gas Filled Spring Quite Induction Motor Delivers The Power Using Cast Iron throughout gives the strength and rigidity to this mortiser, to allow timbers of up to 125mm deep and 145mm high to be clamped securely. There are then two separate controls for moving the table. Firstly the operator winds the table forwards or back until the chisel is aligned with the back edge of the mortice. Secondly the hand wheel is turned to move the table left or right until the chisel is positioned at one end of the mortice. Pulling the main handle lowers the chisel and begins the cut. Once the first square has been cut, the chisel is withdrawn, and the table moved over to begin the next square. Once the complete length of the mortice has been cut, the table can then be wound backwards as required to create a wider mortice. The motor has been specially produced to run at a lower rpm than standard motors, which gives a better cut, with less chance of burning. For anyone wanting to make a series of identical cuts there is a limit stop for the left and right side of the table movement. This method of working is much more accurate, faster to achieve results and a great deal easier than using the traditional style of morticer with a fixed bed. Supplied with, mortice depth stop, handle return stop, chuck key, work clamp, 3/4" chisel bush, cable and plug. Specification From Chisel Bush to Table 220mm Maximum timber height with a 1/2" Chisel Fitted 110mm Timber Clamping width 25mm (1") to 125mm (5'') Chisel capacity 1/4" to 5/8" Vertical Chisel Stroke 105mm (4'') Accepts chisel shank size 3/4" Table travel (left to right) 170mm (6.5'') Table travel (front to back) 75mm (3'') Motor (induction) 375w (1/2hp), 240v Motor Speed 1400rpm Dimensions (WxDxH) 520mm x 550mm x 790mm Weight 42kg Rating Hobby Warranty 1 Year PAYMENT We would prefer payment by credit or debit card or by cash on collection although we do accept Paypal as well. CONTACT US Address: Cedar Court, Walker Road, Hilltop Industrial Estate, Bardon, Leicestershire LE67 1TU Telephone: 01530 516 926 Fax: 01530 516 929 SHIPPING Delivery cost covers England, Wales & Scotland(Not highlands). For Northern & Southern Ireland please call for a quote. VISIT US Our showroom is open to the public and to trade. Visitors are welcome at any time. If you would like a demonstration on one of our larger machines please contact us to arrange an appointment. Showroom Opening hours: Monday to Friday - 9am to 5pm The showroom is closed at weekends and on bank holidays PRODUCT WARRANTY DETAILS All Charnwood & Framers Corner machines are supplied with a one year guarantee; The guarantee starts on the day of despatch by us and covers faulty parts and workmanship. The faulty machine or component will be replaced or repaired, or the full purchase price refunded, at the discretion of Charnwood or Framers Corner providing that Charnwood or Framers Corner accept that the fault is due to faulty parts or workmanship. Claim procedure 1) The end user contacts Charnwood or Framers Corner and explains the fault. 2) We may ask the end user to provide proof of purchase, such as invoice. 3) Framers Corner will then arrange, at Charnwood or Framers Corners discretion either; i) Whenever possible, despatch of replacement parts to be fitted by the end user or ii) The faulty goods to be collected for repairs and then returned to the end user or iii) The faulty goods to be collected and a new replacement despatched or iv) The faulty goods to be collected, inspected and then a full refund of the purchase price given. At any time Charnwood or Framers Corner may ask for a paper copy of the proof of purchase, such as the invoice. For option i) Charnwood or Framers Corner must be supplied with the appropriate part numbers of any parts requested. Failure to do so will delay despatch as descriptions of parts can sometimes be confusing. Please request a copy of the parts diagram first if in doubt. Once the goods are used, the goods must be inspected by a Charnwood or Framers Corner engineer before a new replacement can be sent. Credit will not be given until the goods have been inspected and a fault identified by a Framers Corner engineer. Charnwood or Framers Corner will undertake to deal with all warranty complaints as quickly as possible which will be between 3 to 14 days from first notification. 4) It is the responsibility of the end user to ensure that all returns are suitably packaged for safe transport. Where the original packaging is no longer available every effort should be made to ensure adequate protection is given to the returned item. Goods without any packaging will not be accepted by the carrier. Charnwood or Framers Corner are not liable for any damage which occurs during return transit even if we have arranged the collection through our chosen carrier. Any damages found which have not been previously reported will not be repaired under warranty. A charge will be made to repair such damages, which will consist of the parts used and labour at ?30 per hour. 5) In cases where goods have been collected and inspected by an engineer and either i) No fault is found or ii) The fault is deemed not to be the responsibility of Charnwood or Framers Corner, a charge for the collection and re-delivery of the goods will be made. 6) All repairs and servicing work carried out by Charnwood or Framers Corner, which is not under warranty, will be charged for. The charge will be for any replacement parts used plus labour at ?30 per hour. A quotation can be supplied before any work is carried out when requested. Exceptions Drive belts, Batteries and Tooling items, such as guillotine blades, dust extraction hose, sanding discs etc. are not covered by this guarantee. With excessive use any tooling item will need replacing or servicing during the first 12 months. Return policy To qualify for a hassle-free return, you must pay with PayPal and have the item shipped to a US address. The item must be returned in the same condition it was received. See terms and conditions - opens in a new window or tab. After receiving the item, open a return within Return shipping 14 days You pay return shipping

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Manufacturer	Charnwood
Type	Table Saw
MPN	W316
Brand	Charnwood
