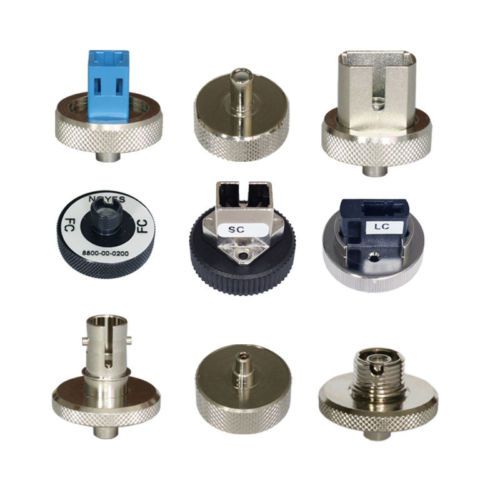

Noyes C860-100-LP1-H2 Refurbished C850 + C840 1310/1550 SM 26 dB(Laser)+ 850/1300 MM 22 dB(LED) OLS Includes C840 QUAD Certification Tester WE ARE AN AUTHORIZED AFL FUJIKURA / NOYES DISTRIBUTOR This is the newest Noyes OTDR for the next generation. If you have been searching for this unit, you know it has such high demand that it is difficult to find. Light on weight and heavy on performance makes the MC860 Certification set the standard for years to come. C850 Compact QUAD OTDR with QUAD OLS and OPM CALL ON REFURBISHED UNIT AVAILABILITY C860 QUAD OTDR and Certification Test Kit This slightly used kit includes one hand-held C840 QUAD Certification Tester, one compact C850 QUAD OTDR/OLTS, USB Flash drive, TRM® 2.0 Test Results Manager trace analysis/reporting and certification or OPM loss reporting PC software (Basic License), (2) AC adapters, switchable test port adapters, and accessories . The Noyes C850 from AFL Telecommunications is a full-featured QUAD OTDR in a compact case with a large transflective touch screen display suitable for both indoor and outdoor operation. The C850 offers built-in auto test functionality when used with another C850 or the C840 QUAD Certification Tester. The C850 features MM and SM OTDR capabilities, both single-mode and multimode Optical Light Sources (OLS), Visual Fault Locator (VFL, 650 nm), and an Optical Power Meter (OPM). As an OTDR, the C850 supports Full Auto, Expert (manual) and Real-Time test modes, simultaneous dual and single wavelength testing, and Event and Pass/Fail analysis based on default or user-defined thresholds. Two C850s or a C840 Tester and C850 can be used together to perform Tier 1 dual wavelength MM (850/1300 nm) and SM (1310/1550 nm) auto tests of one or two fibers in one or both directions; and measure both loss and length of the fibers and compare to industry standards (TIA/ISO/EN), applications and user-defined thresholds values to certify the fibers. The user may test two fibers at two wavelengths bi-directionally and store the results into the main unit. Featuring rich file naming, the Job setup wizard allows the user to define both the cable and fiber end locations, creating easily identifiable trace files, which are managed into Job and Cable folders. Features: • 22 dB (MM), 26 dB (SM) dynamic range (OTDR) • LED 850/1300 nm and Laser 1310/1550 nm sources (OLS) • Integrated OPM and VFL (650 nm) • Transflective (indoor/outdoor) touch screen display • Tool-free, switchable adapters • Rechargeable Li-Ion battery (> 8 hours) or AC power • USB host and function ports • Bellcore (GR-196) .SOR file format • Internal (1000s test results) and USB storage • Wave ID detect if used with Noyes equipment with this capability • Windows® compatible software Applications: • Tier 1 and 2 testing of premise networks • Fast fault location • Splice verification • Network documentation • Measure loss and length of fiber links • Certify fibers using Pass/Fail criteria of industry standards, applications and user-defined limits FREE WALK THROUGH EACH FEATURE TRAINING IS AVAILABLE UPON REQUEST Touch Screen Icons and Descriptions: TEST MODES: OTDR, Auto Test, OLS and OPM Mode Icon Description Full Auto OTDR The recommended mode for users who are not familiar with OTDR operation. In the Full Auto OTDR mode, OTDR parameters such as Range, Pulse Width, and Averaging Time are set automatically. In addition, Full Auto OTDR tests always include an Event Table and Summary Page. Note: in the Full Auto OTDR, Pass/Fail default settings may be changed. Real-Time OTDR Real-Time OTDR mode is the best for real-time troubleshooting. Note that the Wavelength setting can only be set to individual wavelengths. The Range, Pulse Width, and Filter parameters are set by the user. Expert OTDR Expert OTDR mode is available for experienced users. It provides the most setup flexibility. Range, Pulse Width, and Averaging Time are set up manually (Setup = Manual) or automatically (Setup = Auto Once and Setup = Auto). The event table may be either enabled (Events = Auto) or disabled (Events = Off). Note: in the Expert OTDR mode, the Events Menu contains Event Thresholds and Pass / Fail Thresholds settings. Auto Test Used to perform certification optical loss tests on pairs of fibers in one or two directions. Test to TIA, ISO, EN cabling standards, User defined rules and application standards. OLS Used with an OPM to perform insertion loss measurements on fiber optic links. OPM Used to perform Optical Power Meter measurements. UTILITY MODES: RESULTS, SETTINGS, JOB, LAST RESULTS Results Provides the file manager functions to handle the results of OTDR and OPM tests. Settings Allows the user to adjust General Settings (Language, Distance Units, Sounds, Auto Off function, Date/Time, Company Name) and displays the M700 version information. Job For identifying Job Settings (Drives, Folders, Jobs, Routes (End Locations), Cables, Test Equipment location and Operators). Last Results Displays the last viewed test result. Each kit includes one compact C850 QUAD OTDR/OLTS, one hand-held C840 QUAD Certification Tester, USB Flash drive, PC software for OTDR trace analysis and certification or OPM loss reporting, (2) AC adapters, switchable test ports adapters, and accessories (see below). The C860 hard carry case kit has room for up to 6 Fiber Rings, jumpers in a jumper carry case, and the DFS1 Digital FiberScope kit (accessory items must be ordered separately). C860—100—LP1—H ITEM DESCRIPTION C850 QUAD OTDR/Auto Test Certification Tester C840 QUAD Auto Test Certification Tester Adapters OTDR and OLS ports — SC, ST, LC OPM ports — SC, 1.25 and 2.5 mm Universal VFI ports — 1.25 and 2.5 mm Universal Miscellaneous Accessories Mandrels (2) 62.5 ?m, 3 mm jacket and (2) 50 ?m, 3 mm jacket Stylus pens for touch screen. USB thumb drive, 1G. USB to mini-USB cable Small plastic parts box (2) to store adapter caps and mandrels AC adapter (2), specify country of use Cleaning Accessories (2) One-Click Cleaner SC/ST/FC, 2.5 mm; One-Click Cleaner LC/ MU, 1.25 mm (H2 kit only); CleanConnect 500 Cases Hard transit case — holds C850, C840, and above accessories Soft case for C850 Report Software PC software and user guide Call or email for full pdf spec Optional OTDR and Cleaning Accessories Model Number Description FR1-SM-150-SC-FC Fiber ring, single-mode, SC/FC, 150 m FR1-SM-150-SC-LC Fiber ring, single-mode, SC/LC, 150 m FR1-M6-150-SC-ST Fiber ring, multimode, 62.5mm, SC/ST, 150 m FR1-M6-150-SC-LC Fiber ring, multimode, 62.5mm, SC/LC, 150 m FR1-M5-150-SC-ST Fiber ring, multimode, 50mm, SC/ST, 150 m FR1-M5-150-SC-LC Fiber ring, multimode, 50mm, SC/LC, 150 m FR1-L5-150-SC-LC Fiber ring, laser optimized, multimode, 50mm, SC/LC, 150 m FR1-L5-150-SC-SC Fiber ring, laser optimized, multimode, 50mm, SC/SC, 150 m FR1-SM-500-SC-LC Fiber ring, single-mode, SC/LC, 500 m FR1-SM-500-SC-SC Fiber ring, single-mode, SC/SC, 500 m FR1-SM-500-SC-FC Fiber ring, single-mode, SC/FC, 500 m 8500-20-0900 Wet Cleaning Kit for SC/FC/ST/LC Connectors 8500-05-0001MZ One-Click Cleaner SC/ST/FC 8500-05-0002MZ One-Click Cleaner LC/MU Note: 1000 m single-mode fiber rings are also available. Warranty: Includes full 1 year Noyes factory warranty We rent and 'lease to own' - 12 monthly payments with $1 Buy-out. We take trade-ins too. Visit our Noyes Store - www.TamgeStore.com Call for data sheet - 207-221-3154 Esales@TAMGE.com Powered by eBay Turbo Lister
