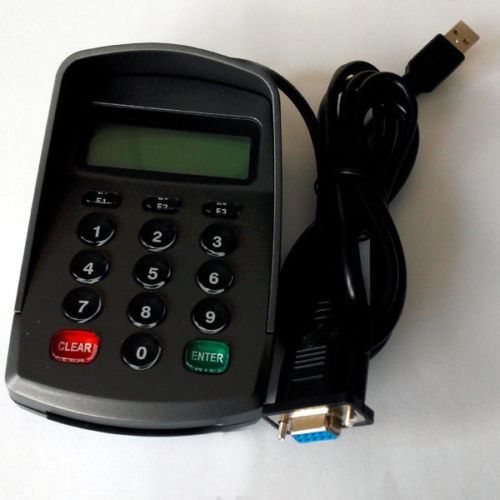

Pinpad With Lcd For Pos System 15pcs Crystal Keys With Rs232+usb Port

US $260

??, ???, China
Jan 30th

Open on mobile:
QR code

RS232+USB 15 Keys Keypad Numeric Keyboard Numpad/ Digital Keyboard /Pin Pad /Password keyboard with LCD Free Shipping Warm: RS232 communication protocols need to do development and Integrated with your pos system, if you do not program development, do not select the device . Features 2 lines, 16 LCD English characters per line display +5V power supply Standard RS232C interface, baud rate: 9,600, n, 8, 1. Black shell Input with a decimal point(F3 to the decimal point, marking change) Communications interface 1. communication protocol RS232C 2 .USB power supply Command 1. keyboard operating mode: 1.1: no encryption works are sent using a single method That is, each time you press a key on the keypad, and immediately sent to the host, Keypad does not exist in the buffer or wait for the host sending the command to enter, the Enter key ends input. 1.2: keyboard opens automatically after power-on. Available control command switch keyboards. 1.3 keyboard LCD backlight open after power-on, never closes. 1.4 keyboard press the LCD display, controlled by the host computer. Keyboard commands 2.1:0x80 liquid crystal display "WELCOME" 2.2:0x81 liquid crystal display "TRY AGAIN" 2.3:0x82 liquid crystal display "ENTER PASSWORD", 2.4:0x83 liquid crystal display "WELCOME", 2.5:0x89 asks for the host command,For the host asked whether there was a small keyboard, when the pad receives this command, the answer ' OK enter ', That is,;0x4f,0x4b,0x0d. 2.6:0x8A open password keyboard, press enter (power-on default). 2.7:0x8B turn off password keyboard key nothing happens. LCD password 3.1 clear LCD display commands Clear LCD displays first lines: Format ESC c 0 HEX: 1b 43 30 Clear LCD display second line: Format: ESC c 1 HEX: 1B 43 31 Display commands 3.2.1: in the first line of the LCD display: Format: ESC s-0 BYTE[0..15] HEX: 1B 53 30 BYTE[0..15] 3.2.2: in the second line of the LCD display (with no input prompts Flash): Format: ESC s 1 BYTE[0..15] HEX: 1B 53 31 BYTE[0..15] 3.2.3: in the second line of the LCD display (with input prompts Flash): Format: ESC s 2 BYTE[0..15]BYTE2 HEX: 1B 53 32 BYTE[0..15] BYTE2 BYTE2: enter the location of the prompt (BYTE2=5 in the LCD of the 5th for the input prompt, Flash) For example, to display 123.67 the transfer digital is the first line: HEX: 1B 53 30 20 20 20 20 20 20 20 20 20 20 31 32 33 2E 36 37 Tip: to display the data length is 16 bytes, less than 16 bytes with spaces added. Note: the LCD is two lines of 16 characters LCD. Display string cannot be longer than 16 characters. Key value comparison table key Standard ASCII code key Standard ASCII code 0 0x30 8 0x38 1 0x31 9 0x39 2 0x32 enter 0x0d 3 0x33 clear 0x08 4 0x34 F1 0x41 5 0x35 F2 0x42 6 0x36 F3 0x2E 7 0x36 Detailed info pls refer below picturer: Shipment: When you place an order, please choose a shipping method and pay for the order including the shipping fee. We will send the items within 3 days once your payment is completed. We do not uarantee delivery time on all international shipments due to differences in customs clearing times in individual countries, which may affect how quickly your product is inspected. Please note that buyers are responsible for all additional customs fees, brokerage fees, duties, and taxes for importation into your country. These additional fees may be collected at time of delivery. We will not refund shipping charges for refused shipments. The shipping cost does not include any import taxes, and buyers are responsible for customs duties. Returns: We do our best to serve our customers the best that we can. We will refund you if you return the items within 15 days of your receipt of the items for any reason. However, the buyer should make sure that the items returned are in their original conditions. If the items are damaged or lost when they are returned, the buyer will be responsible for such damage or loss, and we will not give the buyer a full refund. The buyer should try to file a claim with the logistic company to recover the cost of damage or loss. The buyer will be responsible for the shipping fees to return the items. Warranty & Maintenance: We offer the 1-month free replacement. Buyers may request for a replacement within 15 days from your receipt of the product. The buyer should return the product in the original conditions to us and should bear the shipping costs for return. We also provide 12-month free maintenance. The buyer should return the product in the original conditions to us and should bear the shipping costs for return. If any part is required to be replaced, the buyer should also pay for the costs of the parts to be replaced. Before returning the items, please confirm the return address and the logistics method with us. After you give the items to the logistic company, please send us the tracking number. As soon as we receive the items, we will repair or exchange them ASAP. Feedback: Your satisfaction and positive feedback is very important to us. Please leave positive feedback and 5 stars if you are satisfied with our items and services. If you have any problems with our items or services, please feel free to contact us first before you leave negative feedback. We will do our best to solve any problems and provide you with the best customer services.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Hxtc
Appearance (Form):	a high security shelter outside professional.
Model	Hxtc511-DA

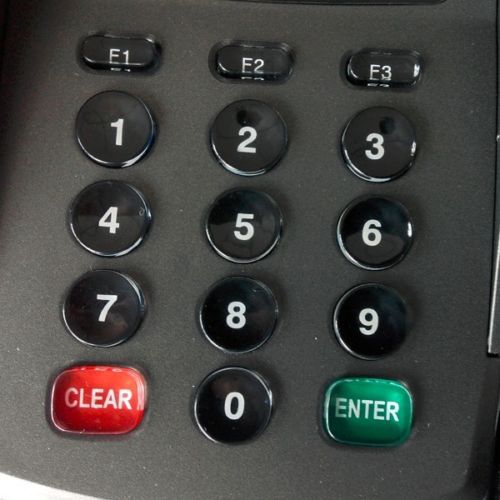

Key number	15keys
Country/Region of Manufacture	China
Power Supply (Power Supply)	by the system to provide +5 VDC

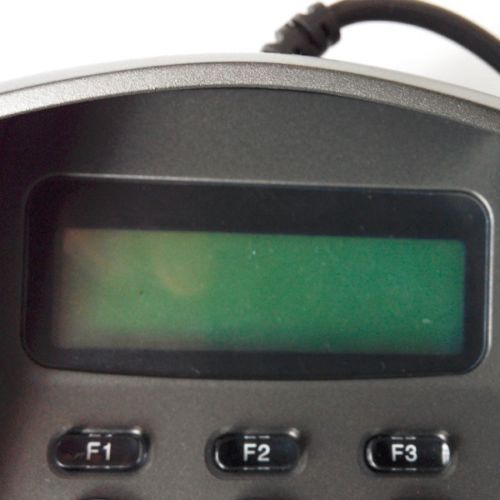

LCD Characters	16 LCD English characters per line display
Dimension (Dimension)	L130mm W85mm H23mm
Communications interface	RS232+USB
