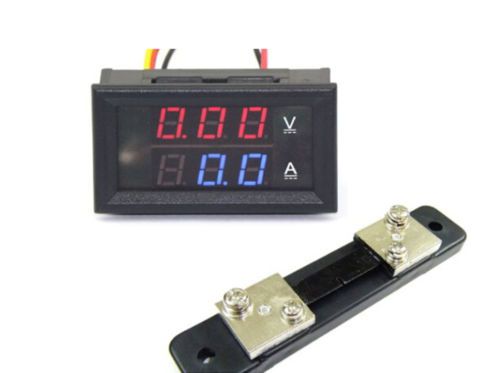

Practical New DC Digital Voltmeter Ammeter LED Amp Volt Meter + Current Shunt, US $8.99 – Picture 0

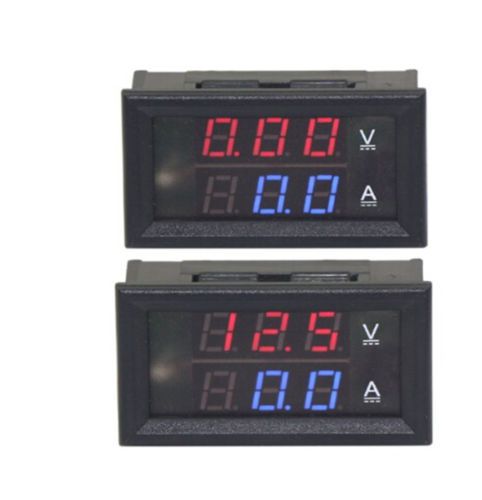

Practical New DC Digital Voltmeter Ammeter LED Amp Volt Meter + Current Shunt, US $8.99 – Picture 1

Practical New DC Digital Voltmeter Ammeter LED Amp Volt Meter + Current Shunt, US $8.99 – Picture 2

Practical New Dc Digital Voltmeter Ammeter Led Amp Volt Meter + Current Shunt

US $8.99

HK, China
Jan 29th

Open on mobile:
QR code

Description Description 100% Brand New And High Quality Working voltage:4-30V DC Working current:<10mA Display: 0.28" Two color blue and red Measuring range:DC 0-100V 0-100A (more than 10A need shunt ) Refresh rate: about 200mS / times Measure accuracy: 1% (± 1 digit) Operating temperature: -10 to 65° c Working pressure: 80 to 106 kPa size :48x29x26 mm The module has reverse polarity protection, even if it will not damage the module reversed. 50A and 100A ammeter scale accurate to 0.1A, 10A ammeter less accurate to 0.01A, voltmeter accurate to 0.1V. Instructions: The ammeter power supply terminal and ground using common measuring terminal to design, that is, the power supply side of the ground and the testing ground is the same, so the test ammeter in series with the electrical terminal only after (ie, the device under test the anode and cathode power between the device under test) Recommends using a separate header isolated power supply terminal Before using shunt must first access the circuit and then draw digital ammeter head to prevent pressure damage to the meter. Before using shunt must first access the circuit and then draw digital ammeter head to prevent pressure damage to the meter. Lead Definition (5 lines) Thin black line: negative power meter The Thin Red Line: Header powered anode (thin red and thin black line between the voltage 4-30V, over shall be burnt) Thick red line: measure the positive voltage input (this line and the thick black line is the voltage between the voltage meter display) Thick yellow line: measure current flow leads. Bold lines: measuring current flow leads (thick black line and the thin black line is the common ground is connected) Package includes: 1 x 100V 100A DC Digital Voltmeter Ammeter 1 x Current Shunt We can also wholesale if you need a large quantity of item please contact us Preview Engineered for professional eBay sellers! On Oct-08-14 at 00:03:07 PDT, seller added the following information: On Jan-01-15 at 21:05:23 PST, seller added the following information:

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Buytra
Measuring range	DC 0-100V 0-100A (more than 10A need shunt )
Working voltage	4-30V DC
Refresh rate	about 200mS / times
Working current	<10mA
Measure accuracy	1% (± 1 digit)
Display	0.28
Working pressure	80 to 106 kPa
