Tooling Plate Coordinate System, Punch Press Brake,milling,optical, Tlplate1

US $249.95

  • Indianapolis, Indiana, United States
  • Jan 30th
Open on mobile:
QR code

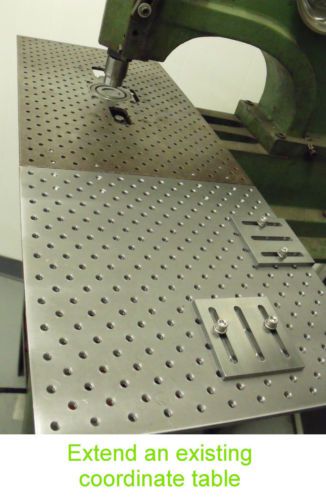

 Mathews Engineering Scalable tooling & coordinate plate system PART NUMBER: TLPLATE1 Applications include: Punch press, Press Brake, Milling Fixture, & Optical Workbench TOOLING PLATE (1 is included): Size: 12"x12" Material: 1/4" Brushed Free Machining Steel Plate Number of Holes: 265  (12x12 & 11x11) Hole Size: 1/4-20 Threaded Hole Spacing: 1.000" & 0.500" (See Drawing) Thickness: 0.25" XY COORDINATE FENCES (2 are included): Size: 3"x3" Material: 1/4" Brushed Steel Plate Fences have (3) 2" clearance slots for 1/4-20 screws Fence edges have high surface quality and squareness GANGING STRAPS (2 are included): Size: 4"x3" Material: 1/4" Brushed Steel Plate Ganging straps have 8 clearance slots for 1/2-20 screws Ganging straps are used to assemble multiple tooling plates or for connecting to an existing tooling table. STAINLESS STEEL HARDARE (20 pieces each are included) (20) 1/4-20 X 1/2" SS Socket head cap screws (20) SS Washers This system works nicely with Mitee Bite #60750 Uniforce Clamps (not included) (Press brake & punch press shown in photos is to show example application and is not included.) Weight: 14 lbs. Box: 16x16x4 Indiana Residents Must Pay 7% Sales Tax US customers only. Made in the USA (Item is new and sold direct from the original manufacture)
Condition:
New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...
Manufacturer Mathews Engineering
Model TLPLATE1
Brand Mathews Engineering
MPN TLPLATE1
