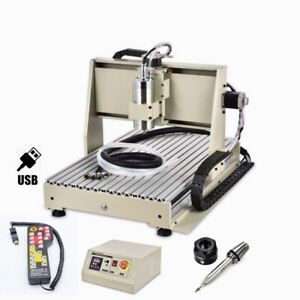

Usb 3axis Cnc 6040 Router Engraving Drill/milling Machine Cutter Engraver 1.5kw

US $4600

Rowland Heights, California, United States
Aug 23rd

Open on mobile:
QR code

Payment Shipping Return policy About us Contact us Store category Other Dental Equipment Automotive Tools Business & Industrial Electronics Fashion Garden&Yard Home Motor Parts & Accessories Musical Instruments & Gear Sporting Goods Toys & Hobbies CNC ROUTER&ENGRAVER Sign Up Now ! You may also like USB Port 6040Z 1.5KW 3 Axis Router Engraver Milling Carving Machine Metal Cutter Product Description Note: We only sale machine SKU: 3-1.5KW6040A-USB+3-1.5KW6040B-USB+TS007USB Description: Suitable for PCB, wood, Plexi glass, PVC, Crystal Acrylic, RESIN, Plastic, SEALS, MDF, COMPOSITE, Aluminum material, Copper, 1. This 3D 6040 machine is suitable for industry, Technology Research, Adertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes. 2. It can work with various materials(metallic & non-metallic), such as: wood, pmma or other plastic, MDF board, native wood, PVC, Acrylic, wood, composite board plywood. and soft metal .like aluminum, copper and silver to engrave them into 3D/2D works etc. 3. It can used for engraving: advertising signs, PCB, nameplates, badges, seals, bronzing plate, aluminum alloy, acrylic plates, ABS resin doublecolor plate, PVC foaming board, indentation plates, signs, construction models, instrument panels, wooden products, etc. 4. The mini 3D router Frame is movable. The machine can connect with computer as other external device such as printer, scanner... 5. With the assist of the 3D ROUTER 6040T, your design idea will be real-time display. 3D engraving machine parameters: X, Y, Z Working Area: 600(Y)*390X*120(Z)mm Outside dimension: 865*680*570mmL*W*H Table size: 770Y*490Xmm Lathe structure: 6061/6063 Aluminium alloy Max. Feeding height: ≤100mm Drive unit: X axis---1605 Ball Screws Y axis---1605 Ball Screws Z axis---1204 Ball Screws Sliding unit: X axis---High intensity Chromeplate shaft Y axis---High intensity Chromeplate shaft Z axis---High intensity Chromeplate shaft Stepping motor: 57 two-phase 3A 150N.cm Spindle motor: (tips1. The spindle motor must connect with the VFD. 2. It cannot directly connect with the supply voltage (AC110V). 3. Please don’t change the data setting of the VFD if you are not professional technicians, or it might damage the spindle motor.) Outside dimension: 65*158mm Material: 304 stainless steel, Copper coil, Pressure cast aluminum pipe water jacket VOLTS, current, power: AC110 /60Hz, 5A, 1.5KW VFD Spindle motor: 1.5 KW water cooled 1Water cooled spindle motor can work longer time than air cooled motor. 2Water cooled spindle motor has higher stability and better concentricity than air cooled motor.Spindle speed: 24000 rpm Max working frequency: 60Hz Principal axis collet: ER11collet, Standard configuration :6mm Nut Model: ER11-A Cooling: Water-cooling Speed mode: By adjusting the VFD output voltage and operating frequency from 0-24000RPM Lubrication way: lubricated by high grease Repeat accuracy: 0.05mm Spindle precision: radial beat acuities 0.03mm Carving Instructions: G code / TAB files / nc file / NCC files Communication interface: through USB connection with computer br />Software environment: Windows XP/Win7, 32 /64 bites system Maximum Idle speed: 0-1500mm/min Working Speed: 50-1500mm / min (different material with different speed settings) Control box parameters: Operating Voltage: AC110V Control unit: Toroidal transformer + PWM power supply module + TB6560 stepping motor drive Computer connection: USB port Command code: G code Acceptable software: EMC2 Protection: Emergency stop button Feature: 1. The NEW 1.5KW water-cooled VFD is available operating for long time, which can reinforced the processing abilty of the machine and can be used toprocess aluminum alloy and hard wood. 2. water cooling spindle works more stable and durable. 3. High quality accurate ball Screws drive make the engrving more precision. Anti-blackflash, high precision, long life circle. 4. Software Compatability: /Emc2/Type3/ArtCAMParameter How to use: 1. Assembling and locating the 3D machine on steady desk well. 2. Make sure that your computer has a USB port output. 3. Place the contral box in a ventilated dry place where there is no dust, no moisture 4. Connecting the control box with the 3D machine and you computer and make sure the plug will not come off. 5. Correctly connect the machine with the controller. Don't suspended the cable which connect the Spindle motor with axis(X, Y, Z, A).Otherwise, It will damage the driver of the controller. 6. Correctly instal the Spindle motor and the heat pump. The heat pump should be covered completely in the water, then turned on the electric current to check whether the water-cooling system working well. 7. Installing a 3D control software and Drive such as the EMC2on your computer. 8. Fllowing our manual or guideline to set uo the software. 9. Before turn on the machine, please check all the cable and water-cooling system to make sure they are working fine. 10. You can enjoy making you dream with using our 3D machine now. If you have any problem. Please contact us through eBay Message and we will gladly assist you. Payment Delivery details Terms of sales About us Contact us Payment We accept ebay payment Fees such as import duties, taxes are not included in the item price or shipping costs. These charges are the buyer's responsibility. Delivery details Shipping: The item will be shipped from our US warehouse to United States, which is more faster than from aboard. 2-9 working days to: USA Terms of sales We maintain high standards of excellence and strive for hundred percent customer satisfaction. Feedback is very important to us. We hope that you contact us immediately before you give neutral or negative feedback, so that we can address your concerns. It is impossible to address issues if we do not know about them! About us Your satisfaction is our ultimate goal. We work hard to earn your trust and future business. Our certified technicians have tested each item before shipping. The unit comes with 1 year limited warranty on all manufacturing defects. a) If you receive a defective item, you may return it or ask for a discount. Please contact us within 14 days after you receive the package. b) What you returned must be intact and in its original packaging as re? u. Customer is responsible for shipping costs of the returned item. c) We will cover the cost of shipping back t with the shipping rate indicated in the registration page. We will send you a new unit or refund the full payment you paid. Thank you. Contact us Business Hour Business Hour: Monday To Friday: 8:30 AM to 5:00 PM (Beijing China time) Due to time zones, our reply to your questions may not be immediately. But within above working time, we will reply your email within 24 hours. If it's non-workdays, please kindly be patient and wait till Monday. Please contact us with ebay message. Please feel free to contact us if you have any questions. : Monday To Friday: 8:30 AM to 5:00 PM (Beijing China time) Due to time zones, our reply to your questions may not be immediately. But within above working time, we will reply your email within 24 hours. If it's non-workdays, please kindly be patient and wait till Monday. Please contact us with ebay message. Please feel free to contact us if you have any questions. Feedback On Aug-23-21 at 02:24:24 PDT, seller added the following information:

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	shipping notice	Can not ship to Puerto Rico,Alaska/Hawaii
Spindle motor	1500W Water-cooling Spindle Motor
Standard configuration	6mm
Maximum Idle speed:	0-1500mm/min
Nut Model	ER11-A
Working Speed	50-1500mm / min
Cooling	Water-cooling
X, Y, Z Working Area	600(Y)390X120(Z)mm
Repeat accuracy	0.05mm
Table size	770Y*490Xmm
Spindle precision	radial beat acuities 0.03mm
MPN	Does Not Apply
Model	6040 USB 3 Axis 1500W Router Engraver
Lathe structure	6061/6063 Aluminium alloy
Carving Instructions	G code / TAB files / nc file / NCC files
Max. Feeding height	100mm
Software environment	Windows XP/Win7, 32 bites system
Brand	Unbranded/Generic
Computer connection	USB port
Spindle speed	24000 rpm
Protection	Emergency stop button
Principal axis collet	ER11collet
VFD	1.5KW VFD
UPC	Does not apply
