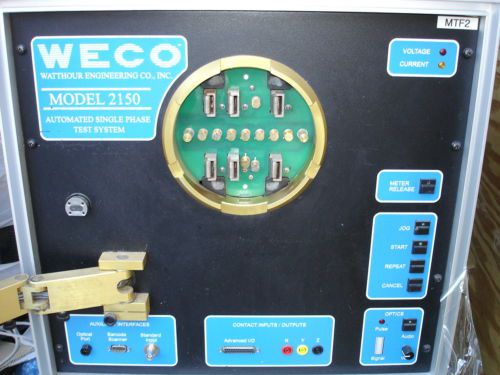

WECO 2150 WATTHOUR Test System Watthour Engineering Co. INC, US $990 – Picture 0

WECO 2150 WATTHOUR Test System Watthour Engineering Co. INC, US $990 – Picture 1

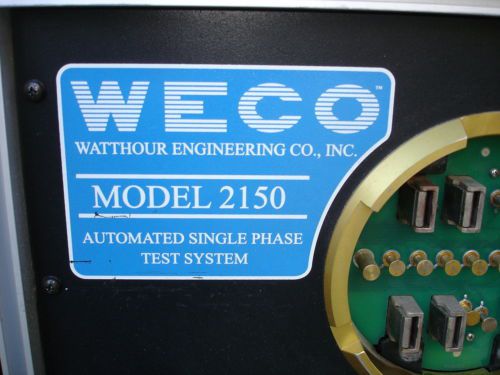

WECO 2150 WATTHOUR Test System Watthour Engineering Co. INC, US $990 – Picture 2

Weco 2150 Watthour Test System Watthour Engineering Co. Inc

US $990

Boise, Idaho, United States
Apr 28th

Open on mobile:
QR code

This is as removed from service. It comes with a power cable and a cable that connects the unit to a computer. No software is included. The below information was taken from the company webpage. It list features that might not be on this tester. What you see in the pictures is what will be shipped. This is big and heavy, it came on a pallet with a plywood box protecting it. Shipping will be made via trucking company. Model 2150 Accuracy and efficiency are the cornerstones for any successful meter shop or production facility. Watthour Engineering offers a line of meter testing hardware and software products that combine over twenty-five years of meter testing experience and customer dedication with the insight into today’s technologies to bring you industry leading test solutions. WECO’s Model 2150 automated test system is a fully ANSI compliant testboard that uses a single voltage and three independently controlled isolated current sources to test all electromechanical and solid state meters up to 50 Amps. Utilizing a precision laser optics system, the Model 2150 can test meters through the most grime-coated covers with unfailing accuracy. This same laser technology makes it possible to test using the disk’s edge without wasting time with the tricky optics adjustments found with other test systems. Convenience, functionality, and reliability are at the heart of the Model 2150’s design. Smart Socket™ technology combines extra long socket life, minimal insertion force, and ultra-quiet operation. With the Optic-Coupler option, you can snap the optic-coupler head in place to both test and program meters. Minimal power consumption, weight, and footprint make this testboard ideal for van mounted testing using a power inverter. Test meters using KYZ through cables or directly off the meter stabs, and use the built-in speaker to hear each pulse. Specifications Input voltage: 120 or 240VAC (3 wire), 50 or 60Hz single-phase Input power: 650VA Maximum System accuracy: For current ranges 0.2A–50.0 A KWH +/– 0.04% at 1.0 P.F. (+/– 0.01% typical) KWH +/– 0.04% at 0.5 P.F. (+/– 0.01% typical) KW +/– 0.075% System accuracy is based upon the accuracy of the reference standard. Voltage and current accuracy: 0.50% true RMS Phase angle accuracy: +/– 0.5° Test frequency: 50 or 60Hz Voltage harmonic distortion: Less than 1.0% THD (less than 0.5% typical) Current harmonic distortion: Less than 1.0% THD (less than 0.3% typical) Meter forms tested: 1S-6S, 8S-17S, 19S, 21S, 24S, 26S, 29S, 35S, 36S, 45S, 46S, 56S, 66S New meter forms can be added using the testboard utility included in the package. Dimensions: Approximately 21?W x 20?H x 21?D Weight: Approximately 125 pounds Warranty: Two (2) year limited warranty (all parts and labor). Manufacturer warranty on computer. back to top Testboard Features Test voltage: 60–600V; Programmable in 0.01V steps Test current: 0.25–50A, Programmable in 0.001A steps Power factor test angle: 0–359.9° Selectable in 0.1° increments Test revolutions: Series full load selectable 1–65,534* Elements Full Load 1–65,534 Series Light Load Selectable 1–65,534* Elements Light Load 1–65,534 Series Power Factor Selectable 1–65,534* Elements Power Factor 1–65,534 Test time: Selectable from 1–9999 seconds (minimum of at least one energy pulse) Demand (KW) testing: Standard revolutions (1–99999 revolutions) Time run (up to 99 HRS, 59 MIN, 59 SEC) Contact device testing: Form “A” or “C” capability Hyper Sequence™: Four quadrant automated meter testing File/graph testing Solid state voltage and current loading Voltage and current electronically ramped between tests Automatic slew between tests to minimize test time Potential clips closed for testing Smart Socket™ with minimal insertion force Front panel controls allow fast, easy test selection Modulated laser optics for through hole and reflect disk sensing Three optical pickups: Top, bottom, and middle/center Visual and audible (volume controlled) pulse indication for aid in aligning optical sensor LED bar graph for signal strength No sensitivity adjustment necessary for optics Easily removable reference standard for recertification PC Minimum System: Dell™ standard business class Mini Tower PC • 17" flat screen monitor • Microsoft Windows® XP Pro operating system, Vista available Windows® compatible Winboard™ software WATT-Net™ data acquisition system Shipping charges will be based on what the freight company charges. I have found that sometimes EBAY over calculates the cost that is charged.

“As removed from service.”

Brand	WECO Watthour Engineering Co, Inc
MPN	2150
Model	2150
Country/Region of Manufacture	United States
