100 pcs/lot IC SN74LS07DRG4, HEX BUFFERS/DRIVERS, US $27.00 – Picture 0

100 pcs/lot IC SN74LS07DRG4, HEX BUFFERS/DRIVERS, US $27.00 – Picture 1

100 Pcs/lot Ic Sn74ls07drg4, Hex Buffers/drivers

US $27.00

Shenzhen, China
Jan 29th

Open on mobile:
QR code

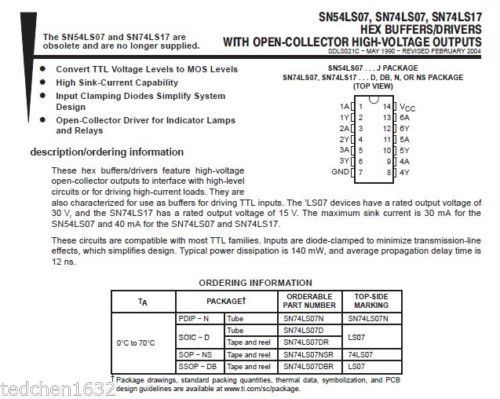

Convert TTL Voltage Levels to MOS Levels High Sink-Current Capability Input Clamping Diodes Simplify System Design Open-Collector Driver for Indicator Lamps and Relays description/ordering information These hex buffers/drivers feature high-voltage open-collector outputs to interface with high-level circuits or for driving high-current loads. They are also characterized for use as buffers for driving TTL inputs. The ’LS07 devices have a rated output voltage of 30 V, and the SN74LS17 has a rated output voltage of 15 V. The maximum sink current is 30 mA for the SN54LS07 and 40 mA for the SN74LS07 and SN74LS17. These circuits are compatible with most TTL families. Inputs are diode-clamped to minimize transmission-line effects, which simplifies design. Typical power dissipation is 140 mW, and average propagation delay time is 12 ns.

Condition:	New: A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable). Packaging should be the same as what is found in a retail store, unless the item is handmade or was packaged by the manufacturer in non-retail packaging, such as an unprinted box or plastic bag. See the seller's listing for full details. ...	Brand	Texas Instruments
IC Package	SOIC14_39MM
Model	GoJGo.com-10275
Category	Logic IC, 74 serial
MPN	SN74LS07DRG4
