1997 Charmilles Roboform 20 Ram Sinker Edm Machine W/ 4 Position Tool Changer

US $21,000.00

Cochranton, Pennsylvania, United States
Jan 30th

Open on mobile:
QR code

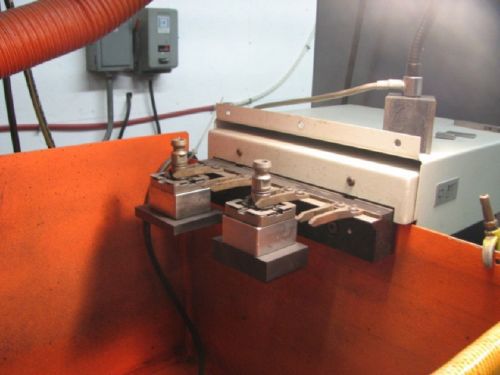

Up for sale is a 1997 Charmilles Roboform 20 electrical discharge machine (EDM) with a 4 position tool changer. I purchased this machine about 4 years ago and it has only been used about 10-20 hours per week at the most since then. I do not remember the hours of run time on the machine, but I do recall it was fairly low. The tool shop that was using it is now out of business so the machine has been unplugged for about 4 months. When we moved the machine to another building, we plugged it back in so the pump could drain the oil for the move, and then unplugged it again. It currently uses synthetic oil. I have about 40 filters for this machine. It only takes 3, but when I bought it, then sent me 72 filters and we used some of them in our other Charmilles EDM's. This machine does NOT have a C-axis. I do not have a chiller for this machine as all of our edm's were hooked up to a single large chiller. You will have to supply your own chiller. This machine was in excellent running condition when it was unplugged. I can schedule a freight shipment, but because I'm not a company, I will not get as good of rates as a company will, so I prefer that you schedule your own freight or pick up. I can meet you anytime if you wish to view the machine. Please remember that it is unplugged and I currently have no way of testing it. Below is a list of items that will come with the machine... I am willing to consider all reasonable offers!!! Please contact me through Ebay!!! Startup Disks and Manuals 8 Custom Stainless steel part/electrode holders (approx $400 ea) with some mounted on System 3R Tool Holders Approximately $5000 of used graphite electrode material (AR-14, the higher quality graphite) Charmilles Roboform 20 Specifications - Table Size 15.7'' x 11.8'' - X Travel 11.8'' - Y Travel 9.8'' - Z Travel 9.8'' - Power 32 AMPS - Max. Dist Table Spindle 15.6'' - No C Axis Rotation - Rotary Shaft Speed 20 Rpm - Max. Manual Speed 15 mm/sec - Workpiece Dimensions 23.8'' x 15.7'' x 7.2' - Max. Workpiece Weight 440 LBS - Reservoir Dimensions 38.5'' x 29.6'' x 20.9'' - Dielectric Fluid 200 L - Filtering Precision 3 Cartridges - Machine Dimensions 50'' x 47'' x 93'' - Machine Weight 1,870 LBS - CNC Cabinet Dimensions 26'' x 24'' x 76'' Equipped With : - CNC Charmilles Control & Power Supply - 3 Axis CNC Control, 14'' Color CRT - RS 232, 4 Stations Tool Changer - 6" x 12" Walker Magnetic Chuck

Condition:	Used: An item that has been used previously. The item may have some signs of cosmetic wear, but is fully operational and functions as intended. This item may be a floor model or store return that has been used. See the seller’s listing for full details and description of any imperfections. ...	Brand	Charmilles
Model	Roboform 20
