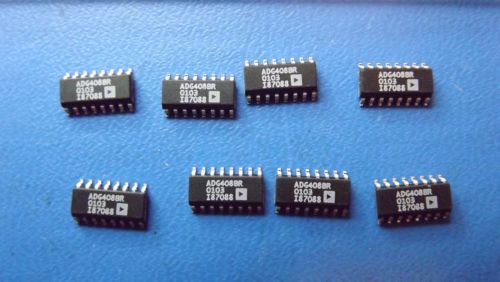

(1pc) Adg408br Analog Multiplexer Single 8: 1 16-pin Soic

US $4.00

Granbury, Texas, United States
Jun 9th

Open on mobile:
QR code

THIS LISTING IS FOR (1PC) OF ADG408BR BY ANALOG DEVICES. Analog Multiplexer Single 8: 1 16-Pin SOIC PART INFORMATION ADG408BR PART DETAILS & PARAMETRIC EU RoHS Not Compliant Type Analog Multiplexer Number of Channels per Chip 1 Multiplexer Architecture 8:1 Configuration Single 8:1 Number of Inputs per Chip 8 Number of Outputs per Chip 1 Maximum On Resistance (Ohm) 100@±15V Maximum Turn-On Time (ns) 150@±15V Maximum Turn-Off Time (ns) 60(Typ)@12V Maximum Power Dissipation (mW) 600 Minimum Operating Temperature (°C) -40 Maximum Operating Temperature (°C) 85 Supplier Temperature Grade Industrial Power Supply Type Single|Dual Typical Single Supply Voltage (V) 12 Maximum Single Supply Voltage (V) 32 Typical Dual Supply Voltage (V) ±15 Maximum Dual Supply Voltage (V) ±22 Maximum Supply Current (mA) 0.2@15V/-0.005@-15V@-40C to 85C Packaging Tube Mounting Surface Mount Package Height (mm) 1.5(Max) Package Length (mm) 10(Max) Package Width (mm) 4(Max) PCB 16 Standard Package Name SOIC Supplier Package SOIC N Pin Count 16 Lead Shape Gull-wing

Condition:	New other (see details): A new, unused item with absolutely no signs of wear. The item may be missing the original packaging, or in the original packaging but not sealed. The item may be a factory second or a new, unused item with defects. See the seller’s listing for full details and description of any imperfections. ...	Brand	Analog Devices
MPN	ADG408BR
